Product Details
Place of Origin: Guangdong, China
Brand Name: Rion
Certification: CE
Model Number: HCA716S-80
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $273.00/Pieces 1-9 Pieces
Packaging Details: box
Delivery Time: 7
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Usage: |
Incline Measure For Building |
Theory: |
Acceleration |
Output: |
RS232 RS485 TTL |
Dimension: |
54 X 44 X 18mm |
Weight: |
120g |
Power Supply: |
9~36v |
Accuracy: |
0.01deg |
Resolution: |
0.001deg |
Water Proof: |
IP67 |
Usage: |
Incline Measure For Building |
Theory: |
Acceleration |
Output: |
RS232 RS485 TTL |
Dimension: |
54 X 44 X 18mm |
Weight: |
120g |
Power Supply: |
9~36v |
Accuracy: |
0.01deg |
Resolution: |
0.001deg |
Water Proof: |
IP67 |
HCA716 HCA726 digital output inclinometer pitch ro...
building incline monitor dual axis incline measure for building
Technical Data
| HCA716/HCA726 | CONDITION | PARAMETERS | UNIT | |||
| Measure range | ±15 | ±45 | ±60 | ±180 | ° | |
| Measure axis | X,Y | X,Y | X,Y | Vertical X | axis | |
| Resolution | 0.001 | 0.001 | 0.003 | 0.005 | ° | |
| Measure accuracy | @25℃ | ±0.008 | ±0.01 | ±0.01 | ±0.01 | ° |
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | %/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response frequency | 20HZ | |||||
| Interface | TTL / RS232 / RS485 optional | |||||
| Communication protocol | RION 68 protocol / MODBUS RTU protocol optional | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2 | |||||
| Weight | ≤150g (including 1 meter cable) | |||||
▶ GENERAL DESCRIPTION

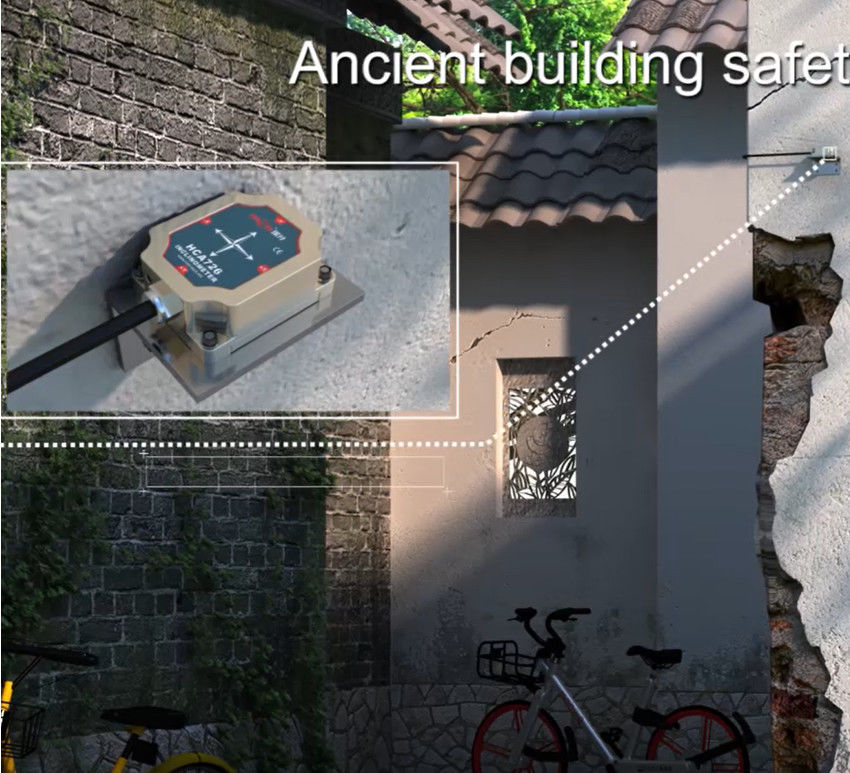

HCA716S / HCA726S is a small volume high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts RS485 / RS232 serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ± 180 °, and the full-scale accuracy is 0.01 °, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ± 1 ~ ± 90 ° optional
★ Accuracy: Refer to data table
★ DC 9 ~ 36V wide voltage input
★ Wide temperature operation -40 ~ + 85 ℃
★ Resolution 0.001 °
★ IP67 protection grade
★ High vibration resistance> 100g
★ Direct lead interface
▶ ELECTRONIC CHARACTERI
| PARAMETERS | CONDITIONS | MIN | STANDARD | MAX | UNIT |
| Power supply | Standard | 9 | 12,24 | 36 | V |
| Working current | No load | 40 | mA | ||
| Working temperature | -40 | +85 | ℃ | ||
| Store temperature | -40 | +85 | ℃ |
▶ MECHANICAL PARAMETERS
○ Connector: 1m Direct Leading Cable ( Can Be Customized)
○ Protection level: IP67
○ Shell material: aluminum alloy shield oxidation
○ Installation: Four M4 screws
