Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ROHS
Model Number: HCA726S
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $260.00/Pieces
Packaging Details: 1pcs/box ,100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 500/month
Type: |
Dual Axis Inclinometer |
Output: |
RS485, RS422 , CAN Optional |
Resolution: |
0.001 Degree |
Waterproof: |
IP67 |
Size: |
L56×W46×H20.5mm |
Accuracy: |
0.008~0.02deg |
Type: |
Dual Axis Inclinometer |
Output: |
RS485, RS422 , CAN Optional |
Resolution: |
0.001 Degree |
Waterproof: |
IP67 |
Size: |
L56×W46×H20.5mm |
Accuracy: |
0.008~0.02deg |

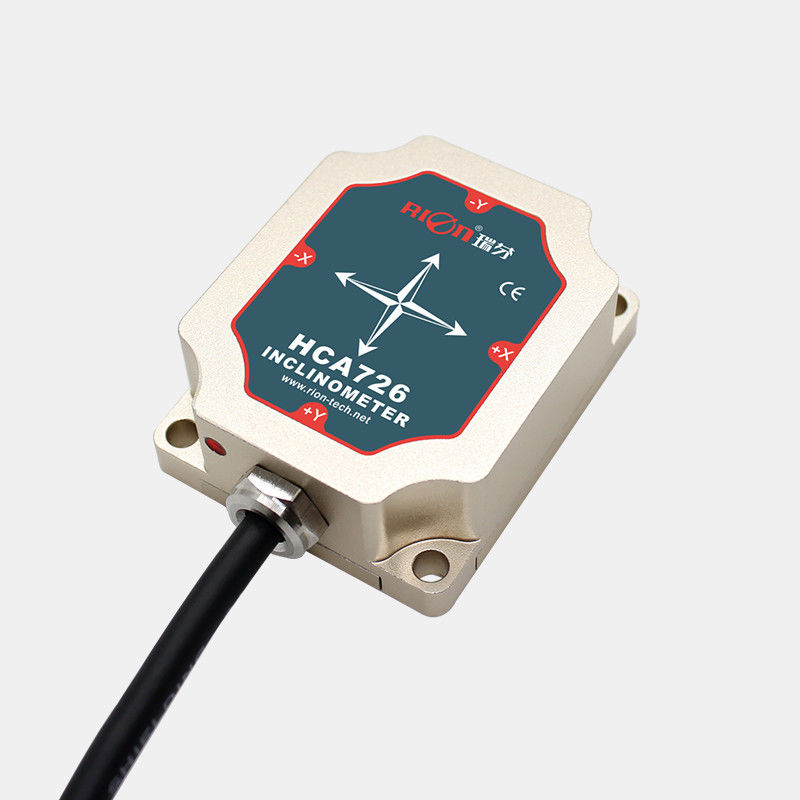

HCA726S Good Temperature Drift High accuracy 2 axis Inclinometer Sensor For Solar Tracking
HCA716 HCA726 FULL TEMPERATURE COMPENSATION INCLIN...
HCA716 HCA726-CANBUS INCLINOMETER.pdf
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ±1 ~ ±180 ° optional
★ Accuracy: Refer to data table
★ DC 9 ~ 36V wide voltage input
★ Wide temperature operation -40 ~ + 85 ℃
★ Resolution 0.001 °
★ IP67 protection grade
★ High vibration resistance> 100g
★ Direct lead interface
▶ APPLICATION
★ Monitoring of ancient buildings and dilapidated buildings
★ Monitoring of bridges and large lands
★ Leveling of construction vehicles
★ Mining machinery, oil drilling equipment
★ Medical equipment angle control
★ Railway gauge ruler and gauge leveling
★ Underground drilling rig attitude navigation
★ Geological equipment tilt monitoring
★ Elevation angle measurement of directional satellite communication antenna
| HCA716/HCA726 |
CONDITION | PARAMETERS | UNIT | |||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | ||
| Measure axis | X Y | X Y | X Y | X Y | X | axis | ||
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.008 | 0.01 | 0.01 | 0.02 | 0.02 | ° |
| RMSE | Room temp. | 0.004 | 0.005 | 0.005 | 0.006 | 0.006 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | °/℃ | |
| Sensitivity temp-coeffi | -40～85℃ | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | %/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20HZ | |||||||
| Interface | TTL / RS232 / RS485 optional | |||||||
| Communication protocol | RION 68 protocol / MODBUS RTU protocol optional | |||||||
| EMC | According to EN61000 and GBT17626 | |||||||
| MTBF | ≥98000 hours/times | |||||||
| Insulation Resistance | ≥100MΩ | |||||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||||
| Anti-vibration | 10grms,10～1000Hz | |||||||
| Protection grade | IP67 | |||||||
| Cables | Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2 | |||||||
| Weight | ≤150g (including 1 meter cable) | |||||||
