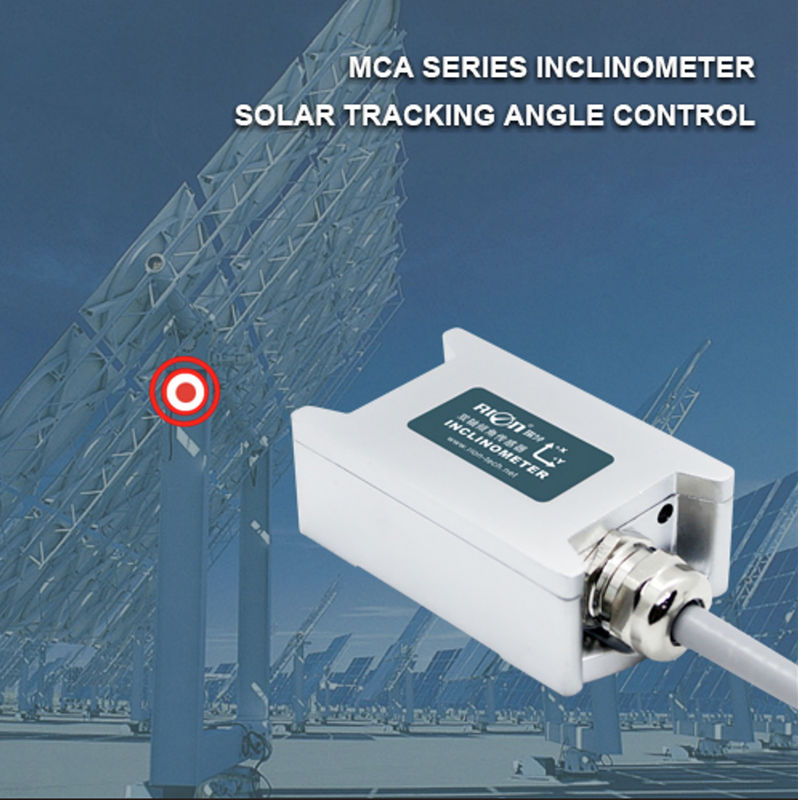

SOLAR TRACKING ANGLE TILT SENSOR CHEAP TILT ANGLE SENSOR FOR PV SOLAR TRACKING
MCA416/426M series incl ination sensor is a new low-cost ful l a t t i t u d e t i l t a n g l e m e a s u r e m e n t p r o d u c t i n d e p e n d e n t l y developed by RION. Adopting the latest anti-interference platform design, integrating new micro-mechanical sensing unit, wide temperature working performance, excel lent antivibration performance, stable and rel iable long-term work, and effective working l ife of up to 10 years. This product uses a non-contact principle to measure the tilt angle of an object, and calculates the real-time tilt angle by measuring the component produced by the earth's gravity through an internal capacitive micromechanical unit.The installation is simple and convenient, and it only needs to be fixed on the object to be tested, and does not need to fix the shaft and the rotating shaft.A variety of installation methods to meet customer measurement needs. It is an ideal accessory for engineering machinery, agricultural machinery, and other industrial equipment.
Feature
● single axis
● measuring range ±180°
● accuracy:±0.3°
● DC 9~36V input
● working temp-40~+85℃
● resolution: 0.1°
● IP67
● anti-shock>2000g
● direct lead interface
▶ PARAMETERS
| MCA416L | CONDITION | INDEX | UNIT |
| Measure range | / | ±80 | ° |
| Measure axis | / | Single axis(Y axis) | axis |
| Resolution | / | 0.1 | ° |
| Absolute accuracy | @25℃ | 0.3 | ° |
| Zero temp. coefficient | -40～85° | ±0.4 | °/℃ |
| Output Interface | RS485 | ||
| communication protocol | MODBUS | ||
| EMC | According to EN61000 and GBT17626 | ||
| MTBF | ≥50000 hour/time | ||
| Insulation resistance | ≥100 megohm | ||
| Anti-impact | 100g@11ms,three axes direction(half sinusoid) | ||
| Anti-vibration | 10grms,10～1000Hz | ||
| Waterproof grade | IP67 | ||
| Housing material | Sand-grinding oxidation of aluminum alloy | ||
| Screw | Three M4 screws | ||
| Cable | Standard 1-meter length, anti-ultraviolet, shielded cable 4*0.4mm2 | ||
| Weight | 60g (exclude cable) | ||
