high accuracy display tilt meter two axes clinometer
| PARAMETERS | DMI410 DMI420 | |
| Angle measure range | ±180 ° | ±90 ° |
| Length measure range | 0~±999.9mm/m | 0~±999.9mm/m |
| Measure axis | Single axis | Dual axis |
| Angle measure accuracy | 0.05 °(full range) | 0.05 °(full range) |
| Angle measure resolution | 0.01° | 0.01° |
| Length measure accuracy | 0.9mm/m(full range) | 0.17mm/m(full range) |
| Length measure resolution | 0.17mm/m | 0.1mm/m |
| LCD visible area size | L40*W32mm | |
| Working temperature | -10℃～ +70℃ | |
| Working humidity | 85℃ | |
| Power supply | 3.7V Charging Lithium battery | |
| Ideal charging time | 3h | |
| Battery continuous working time | 8h(±0.5) | |
| Data output signal | Standard 5Pin USB connector | |
| Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | |
| Impact resistance | 10grms,10～100Hz | |
| Weight | ≤140g | |
| Waterproof level | IP54 | |
| Material | Metal aluminum | |
| Size | L83*W53*H19.2mm | |
PRODUCT DESCRIPTION

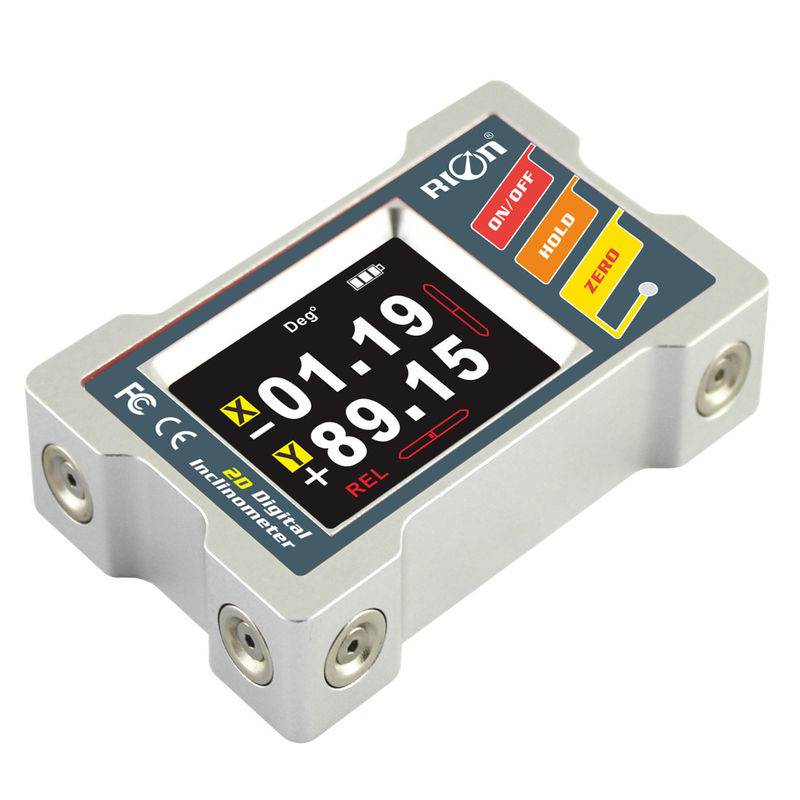

DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability.
ON/OFF: Press for 2seconds to power on or off ;
HOLD: This key to lock the current data, convenient customer records;
ZERO: This button can switch in the absolute and relative measurement mode;(screen display ABS means absolute status, display REL means relative measurement)
HOLD & ZERO: Press HOLD button until the screen appear a small lock sign then press ZERO, can switch in “Angle” and “mm/m” two units of measurement;
ON/OFF&HOLD: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the accuracy according to the screen;
ON/OFF&ZERO: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the ZERO according to the screen;
RESET HOLE: If the instrument occur a crash in working, key can't operation, can use the needlepoint hard object to insert into the hole for touch the button;
USB JACK: For charging purposes or Angle of external connection, data transmission;
WARNING LIGHT: Charging lights, lights up means is charging, light off mens has been filled with power then can take off the charger .( In order to keep the battery with a long life please don't use it as much as possible when it is charging with power.)
