HCM380 3 Axis Magnetic Fluxgate Tilt Meter For Measuring Pitch Roll Heading Angle

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HCM380B /HCM385B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $445.00/Units

Packaging Details: 1pcs compass sensor in each box with safe sponge inside , 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 1000 Unit/Units per Month compass sensor are avaliable

Get Best Price
Contact Now
Specifications
Highlight:

3 Axis Magnetic Fluxgate Tilt Meter

,

IP67 Tilt Meter

,

3 Axis Magnetic Fluxgate Yaw Sensor

Usage:
Heading Sensor
Theory:
Magneitc Heading Measure
Output:
RS232 RS485 TTL
Best Heading Accuracy:
0.5deg
Roll Range:
+/-180deg
Pitch Range:
+/-85deg
Dimension:
L57×W49×H25.5mm
Working Temperature:
-40C ~+85C
Power Supply:
DC+5V
Production:
IP67
Usage:
Heading Sensor
Theory:
Magneitc Heading Measure
Output:
RS232 RS485 TTL
Best Heading Accuracy:
0.5deg
Roll Range:
+/-180deg
Pitch Range:
+/-85deg
Dimension:
L57×W49×H25.5mm
Working Temperature:
-40C ~+85C
Power Supply:
DC+5V
Production:
IP67
Description
HCM380 3 Axis Magnetic Fluxgate Tilt Meter For Measuring Pitch Roll Heading Angle

HCM380 3 Axis Magnetic Fluxgate Tilt Meter For Measuring Pitch Roll Heading Angle



Products Desc.


Main Feature
● heading accuracy: 0.5°
● roll measuring range:±180°
● tilt resolution: 0.1°
● tilt accuracy: <0.2°(full range)
● working temp.: -40℃~+85℃
● size: L110×W19.5×H19.5mm
● with hard and soft magnetic calibration
● RS232/RS485/TTL output

Application :

● Satellite antenna search satellite
● Marine navigation surveying and mapping
● GPS integrated navigation
● Antenna servo control
● Infrared imager
● Laser range finder
● Map for plotter
● ROV underwater robot navigation
● Oceanography measurement instruments

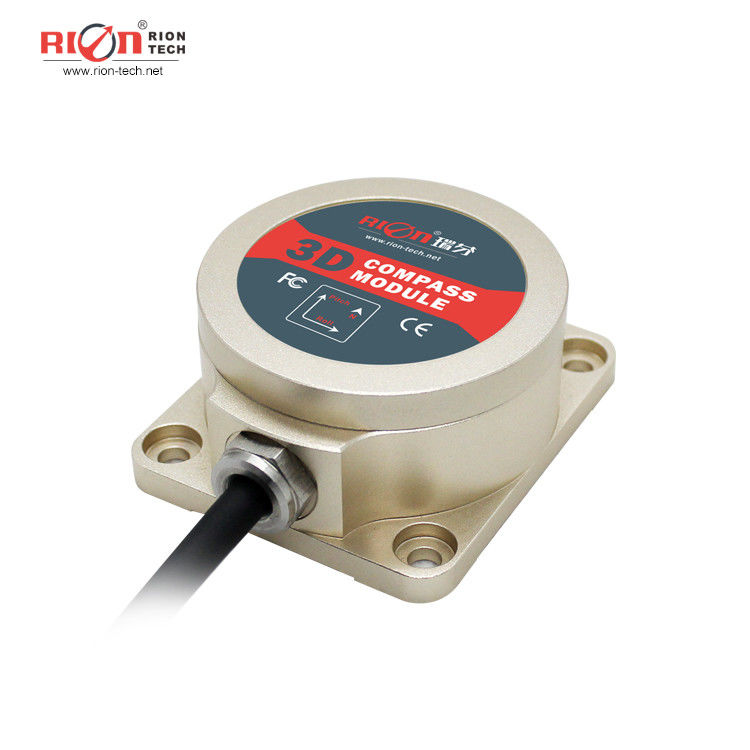

HCM380B / HCM385B is a high-precision 3D compass sensor, and the protection reaches IP67 level. Using advanced hard and soft iron calibration algorithms, make any tool surface with a roll angle of 360 ° can still provide high-precision heading information. With the characteristics of small size and low power consumption, it is more suitable for today's miniaturized sensitive measurement systems. The product can be ordered with a complete sealed casing or a circuit board.

HCM380B / HCM385B integrates three-axis magnetic flux gate technology. It uses a central processing unit to calculate heading data in real time, and uses a three-axis accelerometer to compensate for a wide range of tilt angles. It is a high-performance, high-stability indsutry-grade product. HCM380B / HCM385B has been widely used in many fields such as stable antennas, vehicles, and system integration.



HCM380B/HCM385B Parameters
Compass heading Best heading accuracy 0.5°
Resolution 0.1°
Compass tilt angle Pitch accuracy 0.1°<15°(Measure range )
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<90°(Measure range)
Pitch measure range ±85°
Roll accuracy 0.1°<15°(Measure range)
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<180°(Measure range)
Roll measure range ±180°
Resolution 0.1°
Calibration Hard iron calibration Yes
Soft iron calibration Yes
Soft Magnetic field interference calibration method

Horizontal rotation 360 °;

vertical rotation (optional)

physical characteristics Dimension L49×W57×H25.5mm
Weight 210g(without cable)
RS232/RS485/TTL interface Direct leading cable
Interface characteristics Start delay <50ms
Max output 20Hz/s
Communication rate 2400 ~115200baud
Output format Binary high performance protocol
Power supply Power voltage (default)DC+5V
Current (max) 30mA
Idea mode 26mA
Sleep mode TBD
Environment Working temperature -40℃~+85℃
Storage temperature -40℃~+85℃
Anti vibration performance 100g
  Protective performance IP67
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥98000 hours/time
Insulation resistance ≥100 Mega ohm
Impact resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti vibration 10grms,10~1000Hz



Cable set

Name: air-plug

Brand: Weipu

Original: China





Cable Color

Definition

BLACK RED YELLOW GREEN

GND

Power negative

DC 5V

Power positive

TTL/RS232(RXD)

Or RS485(D-)

TTL/RS232(TXD)

Or RS485(D+)
