RION IP54 2 Axes High Accuracy Digital Inclinometer

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, RHOS

Model Number: DMI820-30

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $438.00/Pieces >=1 Pieces

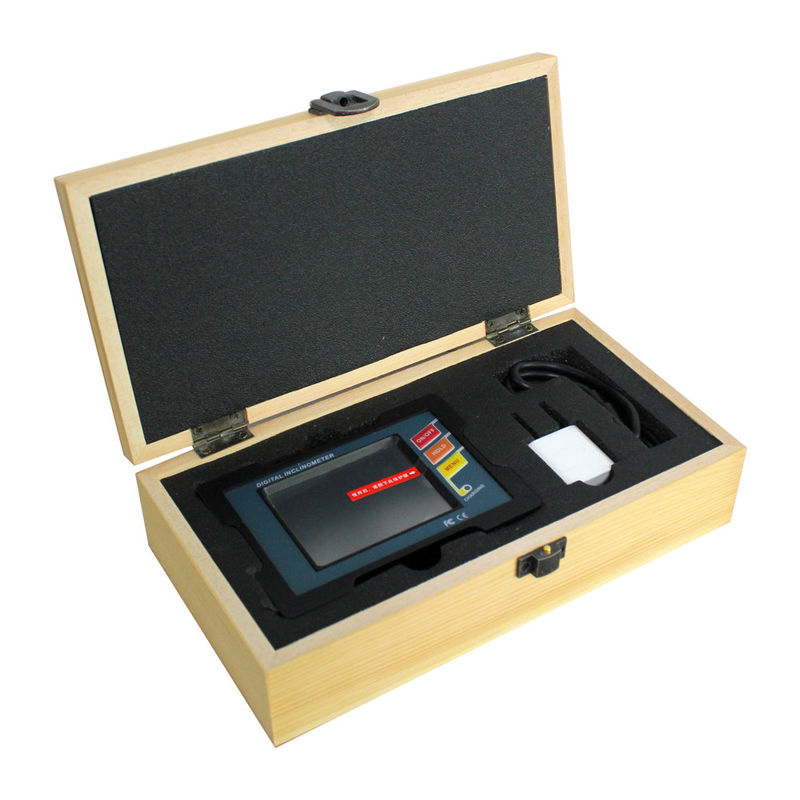

Packaging Details: 1pcs inclinometer / inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 30000 Piece/Pieces per Week inclinometer for sale

Get Best Price
Contact Now
Specifications
Highlight:

2 Axes High Accuracy Digital Inclinometer

,

IP54 High Accuracy Digital Inclinometer

,

2 Axes RION Inclinometer

Inclinometer Measuring Range:
+/-30deg Optional
Accuracy:
<0.01deg@+/-30deg (full Range)
MM Measuring Range:
267~577mm
MM Measuring Accuracy:
0.1mm@267mm(range), 0.2mm@577mm(range)
Product Size:
L105*W73*H27.1mm
Resolution:
0.001°
Repeatability:
<0.003°
LCD:
64 True Colors Night Vision Display Screen
Power Supply:
3.7VCharging Lithium Battery
Working Temp.:
-10 ~ 70C
Port:
Shenzhen
Inclinometer Measuring Range:
+/-30deg Optional
Accuracy:
<0.01deg@+/-30deg (full Range)
MM Measuring Range:
267~577mm
MM Measuring Accuracy:
0.1mm@267mm(range), 0.2mm@577mm(range)
Product Size:
L105*W73*H27.1mm
Resolution:
0.001°
Repeatability:
<0.003°
LCD:
64 True Colors Night Vision Display Screen
Power Supply:
3.7VCharging Lithium Battery
Working Temp.:
-10 ~ 70C
Port:
Shenzhen
Description
RION IP54 2 Axes High Accuracy Digital Inclinometer

Display clinometer 2 axes angle display precise angle monitor digital inclinometer



Application :

  • Building construction
  • Automobile four wheel testing
  • Road slope
  • Machinery installation
  • Piping installation
  • Industrial platform
  • Turntable testing
  • Pan unit angle detection
  • Production jig
  • Medical instruments

Features:

  • Accuracy:<0.003°
  • Repeatability:0.003°
  • Angle resolution:0.001°
  • Measuring range:±15°,+/-30°
  • User can set the alarm value by himself
  • °/mm/m Dual units switch funciton
  • Filter frequency optional
  • Three kinds of measurement mode selectable (radian, angle, mm)
  • Data store function
  • Absolute/Relative measurement can switch
  •  Both sides and bottom can measure
  • Auto temperature drift compensation
  • User can calibrate ZERO by himself
  • Built-in rechargable industy battaries
  • Night vision fours colors screen
  • IP54 protection class



RION IP54 2 Axes High Accuracy Digital Inclinometer 0PARAMETER DMI810 DMI820 UNIT
Angle Measure range ±15 ° ±30 ° ±15 ° ±30 ° °
MM measure range 267 577 267 577 mm/m
Meausre axis Single axis Single axis Single axis Single axis
Highest measurement accuracy (full range) <0.005 <0.01 <0.005 <0.01 °(RMS)
Angle Measure resolution 0.001 0.001 0.001 0.001 °
Repeatability 0.003 0.003 0.003 0.003 °
MM measure accuracy 0.1 0.2 0.1 0.2 mm/m
Three measurement mode selectable

①Angle ②degree, minute, second ③mm/m

three modes can be set

/
MM measure res 0.02 mm/m
LCD 64 true colors night vision display screen /
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃
Working humidity 85 %RH
Power supply 3.7V Charging Lithium battery V
Ideal charging time 5 h
Battery sustainable charging times 11 h
Equipped with PC software VC software /
Data output signal USB1.1 (Virtual Serial Device) /
Connect plug in Standard USB connector, rechargeable /
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid) g
Shock impact 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy Anodizing /
Size L107*W75*H27.1 mm
Weight 300 g




Product & Packing Photos :



RION IP54 2 Axes High Accuracy Digital Inclinometer 3






 RION IP54 2 Axes High Accuracy Digital Inclinometer 7





RION IP54 2 Axes High Accuracy Digital Inclinometer 9





Packing Size: L22*W12*H6mm

Packing Weight : 0.8~1KGS







RION IP54 2 Axes High Accuracy Digital Inclinometer 11RION IP54 2 Axes High Accuracy Digital Inclinometer 13



RION IP54 2 Axes High Accuracy Digital Inclinometer 15RION IP54 2 Axes High Accuracy Digital Inclinometer 17
