PCA826 High Resolution Vibration Frequency Sensor For Wind Turbine / Dam Monitor

Name: PCA826 High Resolution Vibration Frequency Sensor For Wind Turbine / Dam Monitor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: PCA826-485
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: PCA826-485

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $703.00/Pieces 1-9 Pieces

Packaging Details: 1pcs/box ,100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 500/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              0.0005 Degree Resolution Vibration Frequency Sensor, Wind Turbine High Resolution Inclinometer, Dam Monitor High Resolution Inclinometer


Output:	RS485、RS422	Axis:	Dual/single
Resolution:	0.0005 Degree	Working Temp.:	-40 ~+85℃
Waterproof:	IP67	Measure:	L82×W70×H42mm
Absolute Accuracy:	±0.001°	Response:	0.04s

Output:	RS485、RS422
Axis:	Dual/single
Resolution:	0.0005 Degree
Working Temp.:	-40 ~+85℃
Waterproof:	IP67
Measure:	L82×W70×H42mm
Absolute Accuracy:	±0.001°
Response:	0.04s

Description

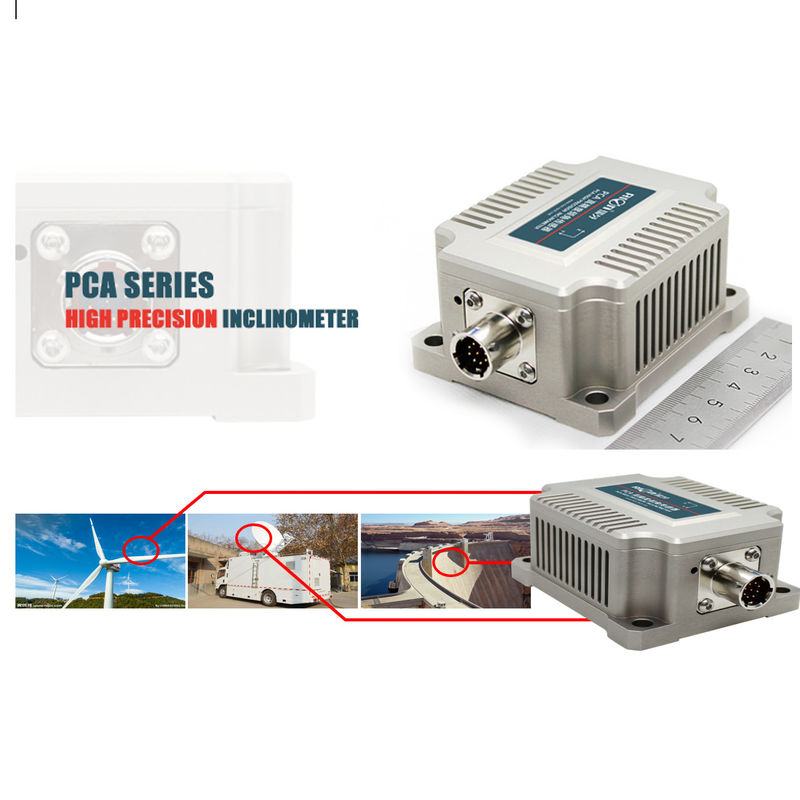

PCA826 High Resolution Vibration Frequency Sensor For Wind Turbine / Dam Monitor

PCA826 High Resolution Vibration Frequency Sensor For Wind Turbine / Dam Monitor

▶ APPLICATION

★ Wind energy monitoring

★ Bridge and Dam surveillance

★ Ancient building monitoring

★Heritage building monitoring

★ Mobile satellite communication units

★ Railway gauge measuring tool and track leveling

★ Satellite link vehicle

★ Geology tilt measurement equipment

★ Engineering vehicle leveling

▶ MAIN FEATURES

★ Biaxial tilt angle measurement

★ Range ±1～±60° optional

★ Horizontal/vertical optional

★ DC 9～36V wide voltage input

★ Wide temperature operation -40～+85℃

★ Resolution 0.0005°

★ IP67 protection grade

★ Size: L82×W70×H42mm

★ Output mode RS485, RS422 optional

Specification

PCA826T	CONDITION	PARAMETERS				UNIT
Measure range		±5	±10	±30	±60	°
Measure axis		XY	XY	XY	XY
Resolution		0.0005	0.0005	0.0005	0.0005	°
Measure accuracy	@25℃	0.001	0.002	0.003	0.005	°
Long-term stability		0.02	0.02	0.03	0.04	°
Zero temp coefficient	-40～85℃	0.0002	0.0002	0.0002	0.0002	°/℃
Sensitivity temp coefficient	-40～85℃	≤50	≤50	≤50	≤50	ppm/℃
Power on time		<0.4	<0.4	<0.4	<0.4	S
Response frequency		0.04	0.04	0.04	0.04	S
Output rate	5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set
Ouput signal	RS485/RS422 optional
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hour/time
Insulation Resistance	≥100 MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector
Weight	385g (exclude cable)

Dimension
