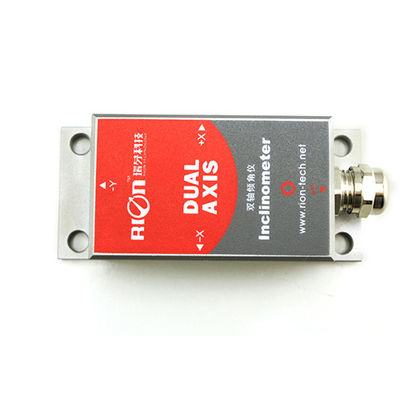

36V IP67 Inclinometer Switch Digital Ouput

$60.00 - $80.00/Pieces
36V IP67 Inclinometer Switch Digital Ouput
Features Gallery Product Description Request A Quote
Usage: Tilt Sensor
Theory: Capacitance Sensor
Output: Digital Sensor
Measuring Range: +-35 Degree
Measuring Axis: X, X/Y
Resolution: 0.01 Degree
Alarm Angle Value: Free To Set
Input: 9~36v
Output Interface: RS232 Etc
Protection Level: IP67
Working Temperature: -40~+85 Degree
Weight: 130g
Size: 90 X 40 X 26mm
Port: HK
High Light:

36v Inclinometer Switch


IP67 Inclinometer Switch


Digital inclination switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Model Number: SCA142B
Payment & Shipping Terms
Packaging Details: 4pcs/box,40pcs/ctn
Supply Ability: 3000 Piece/Pieces per Week
Product Description

Single/dual Axis Relay Output Tilt Switch with Alarm

Technical Data

36V IP67 Inclinometer Switch Digital Ouput 0


  • Dual-axis with 4 directions tilt measurement
  • Accuracy:please refer to the technical data
  • RS232 series output
  • Relay output
  • Resolution : 0.01°
  • Wide temperature working:  -40~+85°C
  • IP67 protection class
  • Highly anti-vibration performance>2000g
  • Direct lead cable interface
  • Customer can set alarm angle value by himself
  • With Setting  function
  • Positive/negative direction output is optional
  • DC 9~36V wide voltage input


  • Engineering mechanical vehicles
  • Rail-mobile monitoring
  • Various engineering mechanical measurement of dip angle
  • oil-well drilling equipment
  • Radar detection of vehicle platform
  • Underground drill posture navigation
  • Gun Barrel angle measurement in early shooting
  • Based on the angle direction measurement
  • Satellite communications vehicle posture detection
  • Shield pipe jacking application
  • The intelligent excavator / crane / cranes / pile driver / drill machine / special vehicles / mine car / track car / fire truck / aerial vehicles / bridge machine

36V IP67 Inclinometer Switch Digital Ouput 2

Products Range of RION

  • Inclinometer---Single/Dual-axis;  wireless, digital, current, voltage, CAN output type, etc.
  • Digital inclinometer--- Single/Dual-axis, wireless and digital output; touch screen; backlight, etc.
  • Tilt switch---switch/relay output; single/dual measuring axis; 1/2/3/4 ways output, time delay function, adjustable alarm value, etc.
  • Electronic Compass--- 2D / 3D; RS232, RS485,TTL output, etc.
  • Accelerometer--- 1-Axis , 2-Axis, 3-Axis; digital , current , voltage output, etc.
  • Gyroscope--- 1-Axis , 2-Axis, 3-Axis; digital , current , voltage output, etc.
  • High performance MEMS Mini AHRS ( Attitude Heading Reference System )
  • Other Customized Products.


Product Show

Ordering information

36V IP67 Inclinometer Switch Digital Ouput 5



36V IP67 Inclinometer Switch Digital Ouput 7


Measuring Directions&Fix

36V IP67 Inclinometer Switch Digital Ouput 9



Packaging & Shipping


  • Packaging: carton with sponge
  • Delivery time: within 7 business days for common order after we receive the full payment
  • Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
Our Services

Pre-sale service

  • Evaluate your application, recommend the most suitable item;
  • Make you fully understand the products, usage and maitenance;
  • Answer all your questions, and let you have no doubt before make any decision;
  • Adjust, revise or redesign our products to consist with the application(for customized service);

Sales service

  • Recommend the best payment term and shipping term for you;
  • Make official quotation and PI with company Stamp;
  • Keep you posted about the products producing;
  • Send exactly requried products on time;
  • Provide tracking NO. and inform you when products leave factory and arrive destination;

Post-sale service

  • Instruct products connection, installation and application;
  • if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
  • Keep tracking the products usage and ask for suggestion and advice.
Company Information

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our mission.


36V IP67 Inclinometer Switch Digital Ouput 11


Certificates & Honor

36V IP67 Inclinometer Switch Digital Ouput 13



  • How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
  • How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
  • How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
  • How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
  • What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
  • What if no suitable item to be found: customerized service is available.
  • How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
