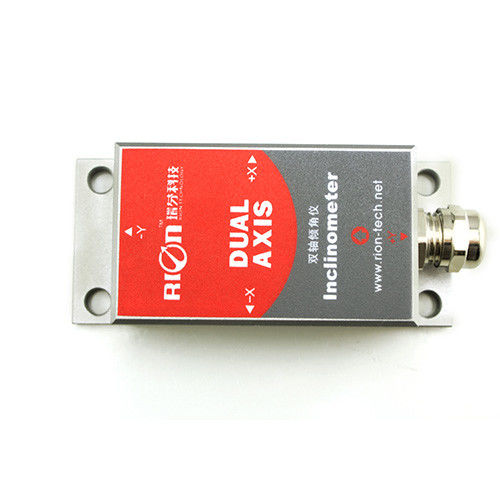

SCA131A is a digital type dual-axis tilt switch developed by RION company who integrated import control core unit , and based on level security alarm and platform leveling detection related industries application , using the transistor output circuit . Users can set alarm angle value by themselves, it will output the switch signal (output voltage = supply voltage) when exceeds the safety angle value, the drive solenoid valve will cut off the hydraulic system, also can drive the buzzer and warning lights, automatically warn the worker to operate safely .The products are mainly used to control a variety of construction machinery or equipment platform leveling, real-time automatic monitoring on platform tilt in four directions left, right , front and back status . This product with design precision, again to compensate the temperature and linearity, integrated short-circuit, high-voltage transient, polarity and surge etc. full protection functions, suitable for a variety of harsh industrial environments operating. Using the industrial grade MCU, three-anti PCB, import cable, wide temperature metal enclosure and other measures etc. to improve the industry level on products reliability and stability.

Features:

Dual-axis with 4 directions tilt measurement             Accuracy:please refer to the technical data

RS232 series output                                                    Switch output(high-low level)

Resolution : 0.01°                                                         Wide temperature working:  -40~+85°C

IP67 protection class                                                   Highly anti-vibration performance>2000g

Direct lead cable interface                                         Customer can set alarm angle value by himself

With Setting 0° function                                               Positive/negative direction output is optional

DC 9~36V wide voltage input

Application:

Engineering mechanical vehicles                                                         Rail-mobile monitoring

Various engineering mechanical measurement of dip angle            oil-well drilling equipment

Radar detection of vehicle platform                                                     Underground drill posture navigation

Gun Barrel angle measurement in early shooting                              Based on the angle direction measurement

Satellite communications vehicle posture detection                         Shield pipe jacking application

Ship’s navigation posture measurement                                            Geological equipment inclined monitoring

SCA141&SCA142	CONDITIONS	PARAMETERS	UNIT
Measure rang		±15	°
Measure axis		X Y	Axis
Resolution		0.01	°
Measure accuracy		0.05	°
Long term stability		0.05	°
Zero Temp. coefficient	-40～85℃	±0.006	°/℃
Sensitivity temp. coefficient	-40～85℃	≤100	ppm/℃
Power on time		0.1	S
Response time		0.2	s
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100M
Shockproof	100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection glass	IP67
Cables	Standard 1M length/wearproof/grease proofing/wide temp./Shielded cables 4*0.4mm2
Weight	120g(without cable)

Ordering information:
