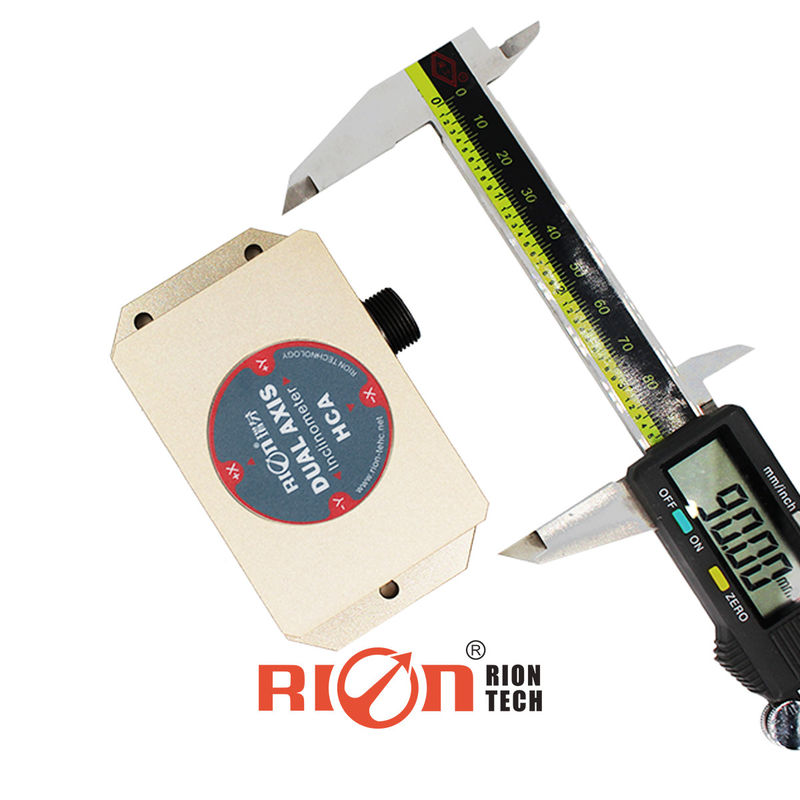

HCA510T MEMS Analog Voltage Output Inclinometer for Industrial Applications

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: HCA510T

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $325.00/Pieces

Packaging Details: 1pcs tilt sensor inclinometer /box with sponge ,100pcs/ctn

Delivery Time: 7 days for sample

Payment Terms: T/T,paypal

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

High Accuracy 12v tilt switch

,

Dual axis 12v tilt switch

,

12V Tilt Switch Sensor

Range:
± 1~± 90° Optional
Wide Voltage Input:
11.5~36V
High Resolution:
0.001 °
High Vibration Resistance:
> 2000g
Waterproof:
IP67
Measure Axis:
X / XY
Zero Output:
2.5V
Power On Time:
0.5s
Weight:
≤250g(Excluding Cable)
Range:
± 1~± 90° Optional
Wide Voltage Input:
11.5~36V
High Resolution:
0.001 °
High Vibration Resistance:
> 2000g
Waterproof:
IP67
Measure Axis:
X / XY
Zero Output:
2.5V
Power On Time:
0.5s
Weight:
≤250g(Excluding Cable)
Description
HCA510T MEMS Analog Voltage Output Inclinometer for Industrial Applications



HCA510T MEMS Analog Voltage Output Inclinometer for Industrial Applications





HCA510T/HCA520T-N is a high-precision analog voltage output single / dual axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane.

Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0~5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.



Features



★ Single / dual axis inclination measurement

★ Range ± 1~± 90° optional

★ Accuracy: Refer to technical data

★ Wide voltage input 11.5~36V

★ Wide temperature operation -40 ℃~+ 85 ℃

★ Output mode 0~5V

★ High vibration resistance> 2000g





Application



★ High-altitude platform safety protection

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig

★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle

★ Tilt monitoring of geological equipment

★ Mining machinery, oil drilling equipment



Technical Data

HCA510T/HCA520T-N CONDITION PARAMTERS UNIT
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X / XY X / XY X / XY X / XY
Zero output 0° output 2.5 2.5 2.5 2.5 V
Resolution   0.001 0.001 0.001 0.001 °
Measure accuracy MAXE Room temp. 0.005 0.01 0.02 0.03 °
RMSE Room temp. 0.003 0.003 0.005 0.008 °
Zero Temp. coefficient -40~85℃ 0.0005 0.0005 0.0005 0.0005 °/℃

Sensitivity

temp. coefficient

-40~85℃ ≤100 ≤100 ≤100 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response frequency 20Hz
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection glass IP67
Cables Standard 7 P * 6.8 mm aviation connector, 1 meter long, wear-resistant, wide temperature, shielded cable, cable weight ≤ 110 G
Weight

≤250g(Excluding cable)








Ordering information:

HCA510T MEMS Analog Voltage Output Inclinometer for Industrial Applications 1



Dimmension

HCA510T MEMS Analog Voltage Output Inclinometer for Industrial Applications 3



Direction of measurement

HCA510T MEMS Analog Voltage Output Inclinometer for Industrial Applications 4
