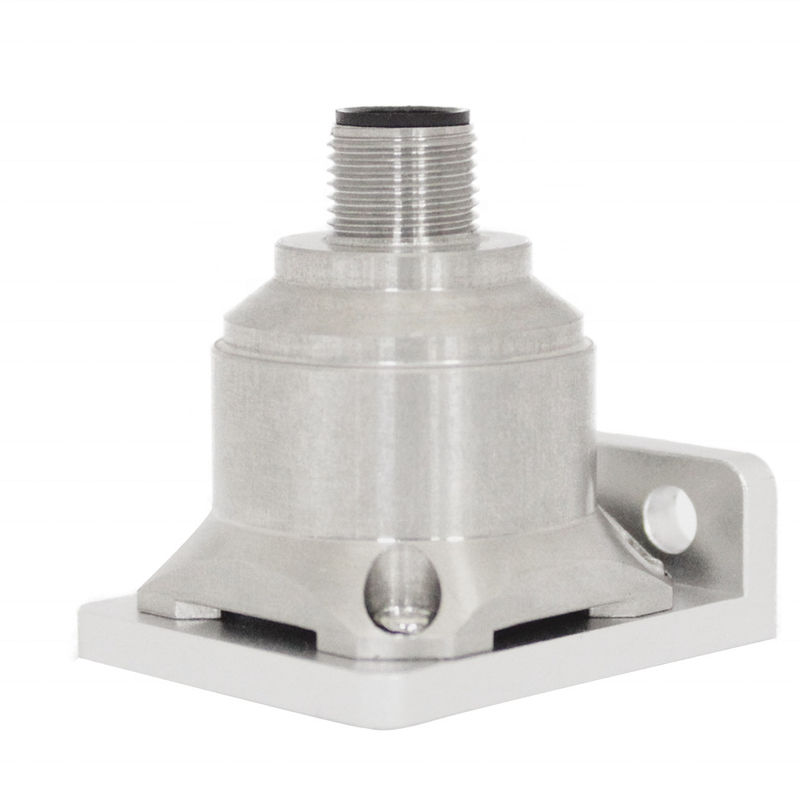

AKF398 Analog Devices Three Axis Vibration Sensor Low Frequency Vibration

Name: AKF398 Analog Devices Three Axis Vibration Sensor Low Frequency Vibration
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKF398-A1
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKF398-A1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T,PAYPAL

Supply Ability: 3000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              AKF398 Three Axis Vibration Sensor, Analog Devices Three Axis Vibration Sensor, AKF398 Low Frequency Vibration Sensor


Usage:	VIBRATION SENSOR	Theory:	MEMS
Output:	Analog SENSOR	Brand:	Accelerometer Sensor
Mounting Type:	Standard , Magnetic	Measuring Range:	Max +/-40G
Accelerometer Output:	4-20mA	Power Supply:	9-36V
Anti-impact:	2000G	Working Temperatur:	-40°C ~ +85°C
Store Temperature:	-55°C ~ +100°C	Size:	L34.4W34.4H38mm
Weight:	73.5g	Measuring Range:	±2g ,±4g,±8g,±10g ,±20g,±40g
Resolution/Threshold (@ 1Hz):	< 1mg(max)	Bandwidth (3Db)):	1000Hz

Usage:	VIBRATION SENSOR
Theory:	MEMS
Output:	Analog SENSOR
Brand:	Accelerometer Sensor
Mounting Type:	Standard , Magnetic
Measuring Range:	Max +/-40G
Accelerometer Output:	4-20mA
Power Supply:	9-36V
Anti-impact:	2000G
Working Temperatur:	-40°C ~ +85°C
Store Temperature:	-55°C ~ +100°C
Size:	L34.4W34.4H38mm
Weight:	73.5g
Measuring Range:	±2g ,±4g,±8g,±10g ,±20g,±40g
Resolution/Threshold (@ 1Hz):	< 1mg(max)
Bandwidth (3Db)):	1000Hz

Description

AKF398 Analog Devices Three Axis Vibration Sensor Low Frequency Vibration

AKF398 Analog Devices Three Axis Vibration Sensor Low Frequency Vibration

The AKF398 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

▶ PRODUCT FEATURES

★ Three axis (X,Y,Z)

★ output voltage: 4-20mA

★ power supply:9-36V

★ anti-impact:2000G

★ working temperature: -40°C ~ +85°C

★ store temperature: -55°C ~ +100°C

★ size: L34.4×W34.4×H38mm

★ weight: 73.5g

★ excellent bias stability

★ Good environmental performance (impact, vibration and temperature)

▶ APPLICATION

★ Crash record, fatigue monitoring and prediction

★ Wind power generation

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

★ Large machinery, engine

★Low frequency vibration and automatic monitoring

★ Medical equipment

★ Vehicle

▶ PRODUCT PARAMETERS

Range

±2

±4

±8

±10

±20

±40

Deviation Calibration

Measuring Axial

X,Y,Z

axis

Up/Off Power Repeatability

mg(max)

Sensitivity (± 10%)

0.8

0.4

0.2

mA/g

Deviation temperature coefficient

0.01

0.05

%/℃

Resolution/Threshold (@ 1Hz)

< 1

mg(max)

Nonlinearity

<0.5

<0.8

% FS(max)

Frequency response

500

Bandwidth (3Db)

1000

Cross-axis sensitivity

Lateral vibration sensitivity ratio

Resonant frequency

2.4

2.1

2.4

5.5

kHz

noise density

86.6

μg/√Hz

0g output 12mA

<0.005

<0.003

Output current

4~20mA

Reliability

MIL-HDBK-217,grade two

Shock Resistance

100g@11ms,Triaxial And Identical (Half Sine Wave)

Recovery Time

<1ms(1000g, 1/2 sin 1ms, Shock Acting On The i Axis)

Vibration

20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )

Input(VDD_VSS)

9-36 VDC

Running current consumption

<60mA @ 12 VDC

Connector

Industrial Standard M12 Connector

Weight

73.5g

Dimension

34.3*34.3*38.5mm
