SCA126T Digital Tilt Sensor Inclinometer Capacitance RS485 Slope Indicator

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: SCA126T-45

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $85.00/Pieces >=1 Pieces

Packaging Details: cartons

Delivery Time: 7 days

Payment Terms: T/T, Paypal

Supply Ability: 5000 Piece/Pieces per Week

Get Best Price
Contact Now
Specifications
Highlight:

RS485 Tilt Sensor Inclinometer

,

RION Tilt Sensor Inclinometer

,

Capacitance digital tilt meter

Usage:
Slope Indicator
Theory:
Capacitance Sensor
Output:
Digital Sensor
With High Accuracy 0.02°:
IP67 Protection Inlinometer
Port:
HK
Measure Range:
±90
Measure Axis:
X Y
Resolution:
0.01
Measure Accuracy:
0.02
Usage:
Slope Indicator
Theory:
Capacitance Sensor
Output:
Digital Sensor
With High Accuracy 0.02°:
IP67 Protection Inlinometer
Port:
HK
Measure Range:
±90
Measure Axis:
X Y
Resolution:
0.01
Measure Accuracy:
0.02
Description

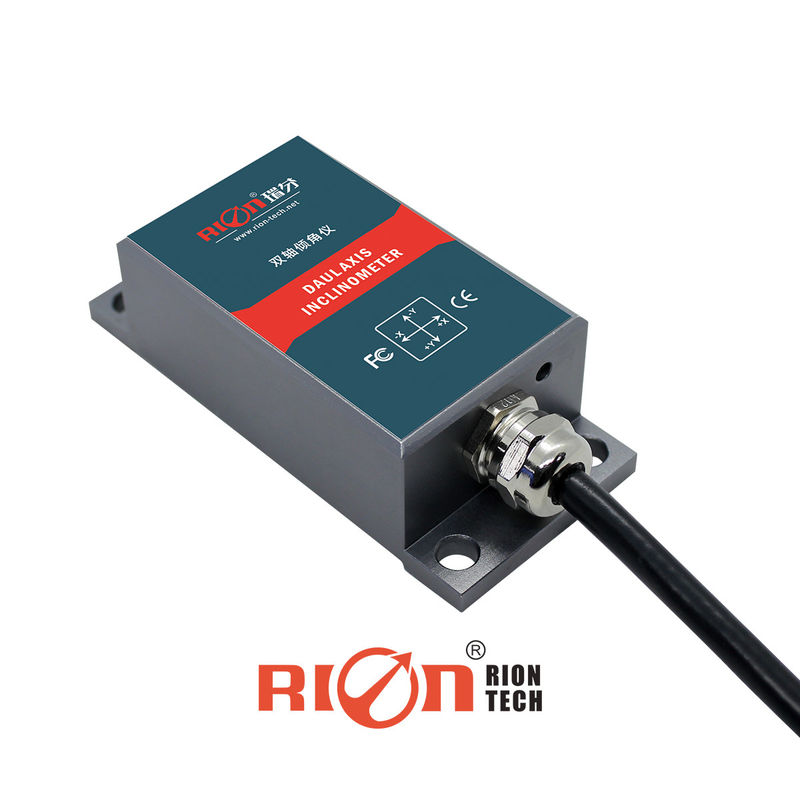

SCA126T Digital Tilt Sensor Inclinometer Capacitance RS485 Slope Indicator



SCA126T Digital Tilt Sensor Inclinometer Capacitance RS485 Slope Indicator

SCA126T Standard dual axis slope guague slope indicator with measurement range max +/-90deg



SCA126T is a Dual-Axis  High stability angle sensor (inclinometer)which is researched and produced by Shenzhen RION with high accuracy and high stability , The maximum measuring range is±85°. This series Output through serial interface RS232 ,RS485 or TTL.
the output angle value have been revised again within the working temperature, To ensure high repeatability of products in wide temperature.




Features:
1:Dual-axis inclinometer
2:Output RS232,RS485,TTL serial interface
3:Measuring range:±1-±85(degrees)
4:Long term stability<0.02(degrees)
5:DC 9~36V wide voltage power supply
6:Wide Temperature-40~+100(degrees celsius)
7:Shockproof>20000g

8:Resolution0.01(degrees)
9:Full Metal Jacket,IP67 protection
10:small size(91*40*26mm)



Applications:
1:Satellite positioning Search
2:Rail-mobile monitoring
3:Engineeringmechanical measurement of dip angle
4:Mining mechanism,oil-well drilling equipment



SCA116T/126T CONDITION PARAMETER UNIT
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X Y X Y X Y X Y axis
Resolution   0.01 0.01 0.01 0.01 °
Measure accuracy @25℃ 0.02 0.03 0.05 0.06 °
Long term.stability   0.05 0.05 0.05 0.05 °
Zero Temp.coefficient -40~85℃ ±0.006 ±0.006 ±0.006 ±0.006 °/℃
Sensitivity temp-coeffi -40~85℃ ≤100 ≤100 ≤100 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 0.02 s
Output rate 5Hz,15Hz,35Hz,50Hz Optional
communication protocol MODBUS / ROIN 68 Optional
EMC According to EN61000 and GBT17626c
MTBF ≥50000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2
Weight 165g(exclude cable)



SCA126T Digital Tilt Sensor Inclinometer Capacitance RS485 Slope Indicator 1SCA126T Digital Tilt Sensor Inclinometer Capacitance RS485 Slope Indicator 3
