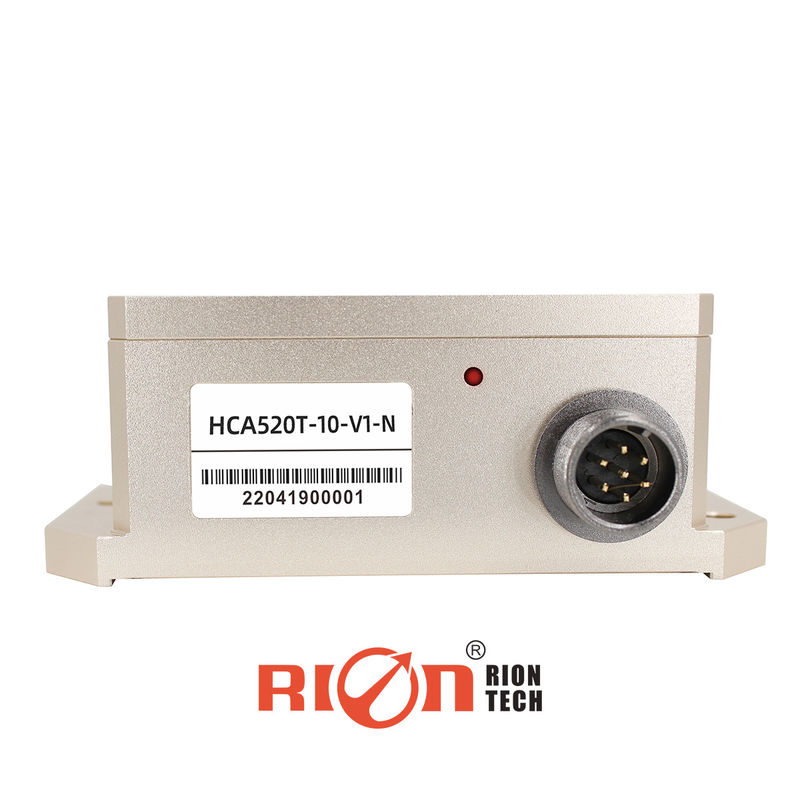

HCA520T Angle Tilt Sensor Analog Voltage Industrial Vibration Inclinometer

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HCA520T-10

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 328 USD/pcs/Pieces

Packaging Details: cartons and sponge

Delivery Time: 7 days

Payment Terms: T/T, PayPal

Supply Ability: 100 Piece/Pieces per Week

Get Best Price
Contact Now
Specifications
Highlight:

HCA520T angle tilt sensor

,

angle tilt sensor analog voltage

,

industrial vibration inclinometer tilt sensor

Usage:
VIBRATION SENSOR
Theory:
Capacitance Sensor
Output:
Analog SENSOR
Accuracy:
0.01°
Axis:
Dual Axis
Protection Class:
IP67
Voltage Input:
9~36v
Resolution:
0.001 Degree
Measuring Range:
+-1~+-90 Degree(optional)
Working Temp.:
-40~85 Celsius Degree
Measuring Axis:
X, X/Y
Weight:
150g
Size:
90 X 40 X 26mm
Port:
HK
Usage:
VIBRATION SENSOR
Theory:
Capacitance Sensor
Output:
Analog SENSOR
Accuracy:
0.01°
Axis:
Dual Axis
Protection Class:
IP67
Voltage Input:
9~36v
Resolution:
0.001 Degree
Measuring Range:
+-1~+-90 Degree(optional)
Working Temp.:
-40~85 Celsius Degree
Measuring Axis:
X, X/Y
Weight:
150g
Size:
90 X 40 X 26mm
Port:
HK
Description
HCA520T Angle Tilt Sensor Analog Voltage Industrial Vibration Inclinometer

HCA520T Angle Tilt Sensor Analog Voltage Output Industrial Vibration Sensor



Technical Data

Parameters

Conditions

HCA520T-10

HCA520T-30

HCA520T-60

HCA520T-90

unit

Measuring range



±10

±30

±60

±90

°

Measuring axis



X,Y

X,Y

X,Y

X,Y



Zero output

0° Output

2.5

2.5

2.5

2.5

V

Resolution



0.001

0.001

0.001

0.001

°

Absolute accuracy



0.005

0.01

0.02

0.05

°

Long term stability



0.01

0.02

0.05

0.08



Zero temperature coefficient

-40~85°

±0.002

±0.002

±0.002

±0.002

°/°C

Sensitivity temperature coefficient

-40~85°

≤50

≤50

≤50

≤100

ppm/°C

Power on time



0.5

0.5

0.5

0.5

S

Response time



0.05

0.05

0.05

0.05

S

Response frequency



1~20

1~20

1~20

1~20

Hz

Electromagnetic compatibility

According to EN61000 and GBT17626

MTBF

≥50000 hours/times

insulation Resistance

≥100M

Shockproof

100g@11ms,3Times/Axis(half sinusoid))

Anti-vibration

10grms,10~1000Hz

Protection glass

IP67

Cables

Standard 1M length,wearproof,wide temperature,Shielded cables4*0.4mm2 air-plug connector

Weight

150g(without cable)



HCA520T is a high accuracy dual axis inclinometer with analog voltage output,small measuring range and the highest precision up to 0.003 °, it is one of the few high-precision inclinometers in mainland. It is mainly used to measure the inclination of the object with respect to the horizontal plane , built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change, the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude.



Features:

  • Dual-Axis Inclinometer
  • Measuring Range :±1~±90° optional
  • Accuracy refer to the technical data
  • Wide voltage input: 9~36V
  • Wide temperature working: -40~+85°C
  • Resolution: 0.001°
  • IP67 protection class
  • Highly antibration performance >2000g
  • Small size :90×50×28mm(customized)
  • Water-proof air-plug connector

Application:

  • Satellite positioning Search
  • Rail-mobile monitoring
  • engineering mechanical measurement of dip angle
  • oil-well drilling equipment
  • Radar detection of vehicle platform
  • Underground drill posture navigation
  • Based on the angle direction measurement
  • Satellite communications vehicle posture detection
  • Shield pipe jacking application

HCA520T Angle Tilt Sensor Analog Voltage Industrial Vibration Inclinometer 0



Product Show





Ordering information

HCA520T Angle Tilt Sensor Analog Voltage Industrial Vibration Inclinometer 4



Electrical Connection



HCA520T Angle Tilt Sensor Analog Voltage Industrial Vibration Inclinometer 6





Dimension



HCA520T Angle Tilt Sensor Analog Voltage Industrial Vibration Inclinometer 8
