Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HCA726/716
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $250.00/Pieces 1-9 Pieces
Packaging Details: 1pcs/box ,100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Usage: |
Position Sensor |
Power On Time: |
0.5S |
Resolution: |
0.001deg |
Axis: |
Single/dual |
Response Frequency: |
20HZ |
Interface: |
TTL / RS232 / RS485 Optional |
Waterproof: |
IP67 |
Weight: |
≤150g (including 1 Meter Cable) |
Usage: |
Position Sensor |
Power On Time: |
0.5S |
Resolution: |
0.001deg |
Axis: |
Single/dual |
Response Frequency: |
20HZ |
Interface: |
TTL / RS232 / RS485 Optional |
Waterproof: |
IP67 |
Weight: |
≤150g (including 1 Meter Cable) |

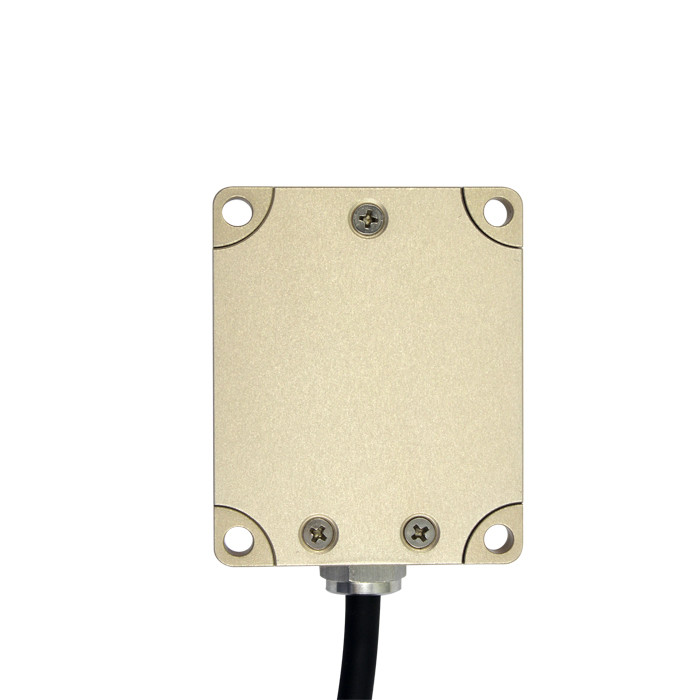

100M ISO Dual Axis Tilt Sensor Inclinometer Switching Transducer

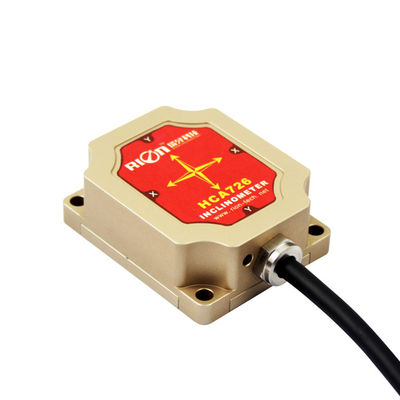

HCA716 HCA726 FULL TEMPERATURE COMPENSATION INCLIN...
HCA716S/HCA726S is a small volume full temperature compensated high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts RS485 / RS232 serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measure range up to ±180°, and the full-scale accuracy is 0.01°, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.
| HCA716/HCA726 | CONDITION | PARAMETERS | UNIT | |||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | ||
| Measure axis | X Y | X Y | X Y | X Y | X | axis | ||
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.008 | 0.01 | 0.01 | 0.02 | 0.02 | ° |
| RMSE | Room temp. | 0.004 | 0.005 | 0.005 | 0.006 | 0.006 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | °/℃ | |
| Sensitivity temp-coeffi | -40～85℃ | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | %/℃ | |
|
Power on time |
0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20HZ | |||||||
| Interface | TTL / RS232 / RS485 optional | |||||||
| Communication protocol | RION 68 protocol / MODBUS RTU protocol optional | |||||||
| EMC | According to EN61000 and GBT17626 | |||||||
| MTBF | ≥98000 hours/times | |||||||
| Insulation Resistance | ≥100MΩ | |||||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||||
| Anti-vibration | 10grms,10～1000Hz | |||||||
| Protection grade | IP67 | |||||||
| Cables | Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2 | |||||||
| Weight | ≤150g (including 1 meter cable) | |||||||
*This Technical data only list ± 15 °, ± 45°, ± 60 °, ± 180 ° series for reference, other measuring range please refer to the adjacent parameters .
| PARAMETERS | CONDITIONS | MIN | STANDARD | MAX | UNIT | |
| Power supply | Standard | 9 | 12 | 24 | 36 | V |
| Working current | No load | 21 | 12 | mA | ||
| Working temperature | -40 | +85 | ℃ | |||
| Store temperature | -40 | +85 | ℃ | |||
