USB1.1 High Accuracy Digital Inclinometer Touch Screen IP54 Protractor

$435.00/Sets >=1 Sets
USB1.1 High Accuracy Digital Inclinometer Touch Screen IP54 Protractor
Features Gallery Product Description Request A Quote
Theory: Fluxgate
Material: Metal
Size: L105*W73*H27.1mm
Weight: 300g
Waterproof: IP54
Installation Method: Strong Magnet
Working Temp.: -10~70 Celsius Degree
Power Supply: 3.7v Rechargeable Lithium Battery
Data Output: USB1.1
Shock Impact: 10grms,10-100Hz
Screen: 64 True Colors Night Vision Display Touch Screen
Usage: Magnetic Sensor
Output: Digital Sensor
Port: Shenzhen
High Light:

USB1.1 High Accuracy Digital Inclinometer


High Accuracy Digital Inclinometer Touch Screen


IP54 Digital Protractor Inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI810-30
Payment & Shipping Terms
Packaging Details: 1pcs/box,10pcs/ctn
Delivery Time: 7 days
Payment Terms: T/T, Paypal
Supply Ability: 3000 Set/Sets per Month
Product Description

High Precision USB Output Touch Screen Digital Protractor Inclinometer by Chinese Factory


Product Description


  • Best accuracy:<0.003°
  • Repeatability:0.003°
  • Angle resolution:0.00
  • Maximum measuring range9
  • User can set the alarm value by himself
  • Data store function
  • Absolute/Relative measurement can switch
  • Both sides and bottom can measure
  • Double benchmark strong magnet installation
  • Working Temperature : -10°~ +70°C
  • Auto-angle interleaved compensation function
  • Auto temperature drift compensation
  • User can calibrate ZERO by himself
  • Built-in rechargable industry batteries
  • Night vision fours colors screen
  • IP54 protection class
  • °/mm/m Dual units switch function
  • Filter frequency optional
  • Three kinds of measurement mode selectable (radian, angle, mm)

Technical data


USB1.1 High Accuracy Digital Inclinometer Touch Screen IP54 Protractor 0PARAMETER DMI810 DMI820 UNIT
Angle Measure range ±15 ° ±30 ° ±15 ° ±30 ° °
MM measure range 267 577 267 577 mm/m
Meausre axis Single axis Single axis Single axis Single axis
Highest measurement accuracy (full range) <0.005 <0.01 <0.005 <0.01 °(RMS)
Angle Measure resolution 0.001 0.001 0.001 0.001 °
Repeatability 0.003 0.003 0.003 0.003 °
MM measure accuracy 0.1 0.2 0.1 0.2 mm/m
Three measurement mode selectable

①Angle ②degree, minute, second ③mm/m

three modes can be set

MM measure res 0.02 mm/m
LCD 64 true colors night vision display screen /
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃
Working humidity 85 %RH
Power supply 3.7V Charging Lithium battery V
Ideal charging time 5 h
Battery sustainable charging times 11 h
Equipped with PC software VC software /
Data output signal USB1.1 (Virtual Serial Device) /
Connect plug in Standard USB connector, rechargeable /
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid) g
Shock impact 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy Anodizing /
Size L107*W75*H27.1 mm
Weight 300 g

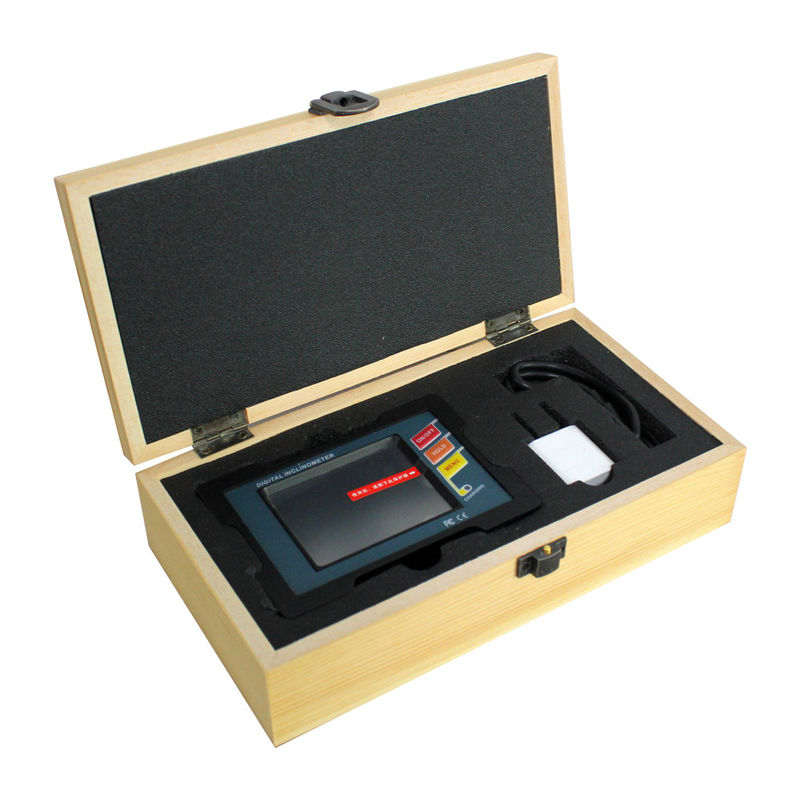

Product Show

USB1.1 High Accuracy Digital Inclinometer Touch Screen IP54 Protractor 3

USB1.1 High Accuracy Digital Inclinometer Touch Screen IP54 Protractor 4



Ordering information :

Product Functions:

USB1.1 High Accuracy Digital Inclinometer Touch Screen IP54 Protractor 9
