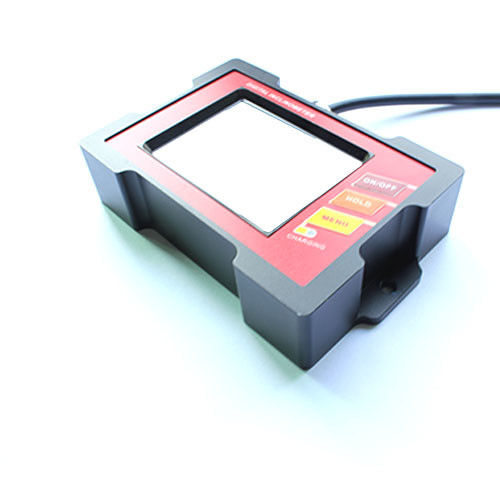

DMI810 USB Interface Digital Level Angle Gauge Fluxgate 10Hz Single Axis Protractor

Name: DMI810 USB Interface Digital Level Angle Gauge Fluxgate 10Hz Single Axis Protractor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DMI810-30
Price: 218.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: DMI810-30

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $435.00/Sets >=1 Sets

Packaging Details: 1pcs/box,10pcs/ctn

Delivery Time: 5 working days

Payment Terms: T/T, Paypal

Supply Ability: 3000 Set/Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              fluxgate Digital Level Angle Gauge, USB Interface Digital Level Angle Gauge, 10Hz digital angle meter


Theory:	Fluxgate	Material:	Metal
Size:	L109W77H27mm	Weight:	≤350g
Waterproof:	IP54	Working Temp.:	-10~70 Celsius Degree
Shock Impact:	10grms,10-100Hz	Usage:	Magnetic Sensor

Theory:	Fluxgate
Material:	Metal
Size:	L109W77H27mm
Weight:	≤350g
Waterproof:	IP54
Working Temp.:	-10~70 Celsius Degree
Shock Impact:	10grms,10-100Hz
Usage:	Magnetic Sensor

Description

DMI810 USB Interface Digital Level Angle Gauge Fluxgate 10Hz Single Axis Protractor

DMI810 USB Interface Digital Level Angle Gauge Fluxgate 10Hz Single Axis Protractor

Features:

★ User can set the alarm value by himself

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Double benchmark strong magnet installation

★ Working Temperature : -10°～ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate ZERO by himself

★ Built-in rechargable industry batteries

★ Night vision fours colors screen

★ °/mm/m Dual units switch function

★ Three kinds of measurement mode selectable (radian, angle, mm)

Application :

Building construction
Automobile four-wheel testing
Road slope
Machinery installation
Piping installation
Industrial platform
Turntable testing
Pan unit angle detection
Production jig

Technical data

PARAMETER	DMI810		DMI820		UNIT
Meausre Axis	Single Axis		Daul Axis		Axis
Angle Measure Range	±15 °	±30 °	±15 °	±30 °	°
Angle Measurement Accuracy(Full Range)	<0.005	<0.01	<0.005	<0.01	°
Angle Measure Resolution	0.001	0.001	0.001	0.001	°
Mm/m Measure Range	267	577	267	577	mm/m
Mm/m Measure Accuracy	0.1	0.2	0.1	0.2	mm/m
Mm/m Measure Resolution	0.02	0.02	0.02	0.02	mm/m
Repeatability	0.003	0.003	0.003	0.003	°
Measurement Mode	Angle,Degree/Minute/Second,Mm/m Three modes can be set
Working Temperature	-10°~ +70℃
Working Humidity	85%RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Continuous Working Time	11h
Equipped With Pc Software	Vc Software
Data Output Signal	USB2.0 (Virtual Serial Device)
Connect Plug In	Standard Usb Connector, Rechargeable
Shock Resistance	10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact	10grms,10~100Hz
Waterproof Grade	IP54
Material	Aluminum Alloy Anodizing
Lcd	64 True Colors Night Vision Display Screen
Lcd Visible Area Size	L57.6*W43.2mm
Size	L109W77H27mm
Weight	≤350g
