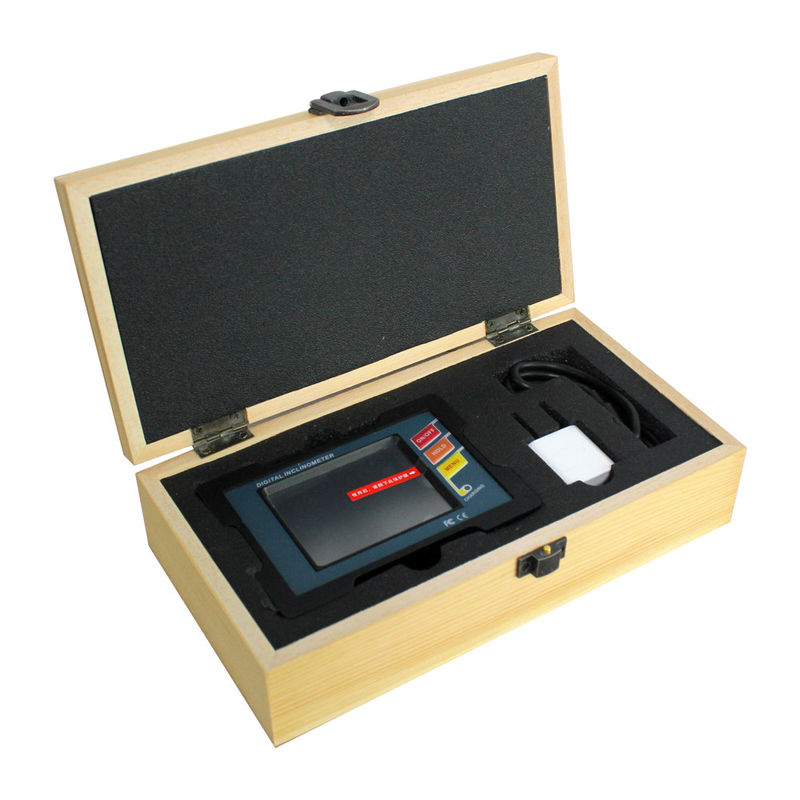

RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator

 Selling RION High Precision Touch Screen Digital Inclinometer

Features:

• Accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Measuring range:±15°,+/-30°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
•  Both sides and bottom can measure

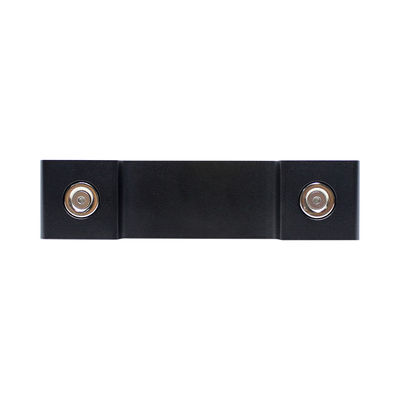

• Double benchmark strong magnet installation
• Working Temperature : -10°~ +65°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• Built-in rechargable industy battaries
• Night vision fours colors screen
• IP54protection class
•  °/mm/m Dual units switch funciton
• Filter frequency optional
• Three kinds of measurement mode selectable (radian, angle, mm)

Application :

• Building construction
• Automobile four wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

Specification

PARAMETER	DMI810		DMI820			UNIT
Angle Measure range	±15 °	±30 °		±15 °	±30 °	°
MM measure range	267	577		267	577	mm/m
Meausre axis	Single axis	Single axis		Single axis	Single axis
Highest measurement accuracy (full range)	<0.005	<0.01		<0.005	<0.01	°(RMS)
Angle Measure resolution	0.001	0.001		0.001	0.001	°
Repeatability	0.003	0.003		0.003	0.003	°
MM measure accuracy	0.1	0.2		0.1	0.2	mm/m
Three measurement mode selectable	①Angle ②degree, minute, second ③mm/m three modes can be set					/
MM measure res	0.02					mm/m
LCD	64 true colors night vision display screen					/
LCD visible area size	L57.6*W43.2					mm
Working temperature	-10°~ +70℃					℃
Working humidity	85					%RH
Power supply	3.7V Charging Lithium battery					V
Ideal charging time	5					h
Battery sustainable charging times	11					h
Equipped with PC software	VC software					/
Data output signal	USB1.1 (Virtual Serial Device)					/
Connect plug in	Standard USB connector, rechargeable					/
Shock resistance	10g@11ms,3 Axial Direction (Half Sinusoid)					g
Shock impact	10grms,10~100Hz					g
Waterproof grade	IP54					/
Material	Aluminum alloy Anodizing					/
Size	L107*W75*H27.1					mm
Weight	300					g

Packing Size: L22*W12*H6mm

Packing Weight : 0.8~1KGS
