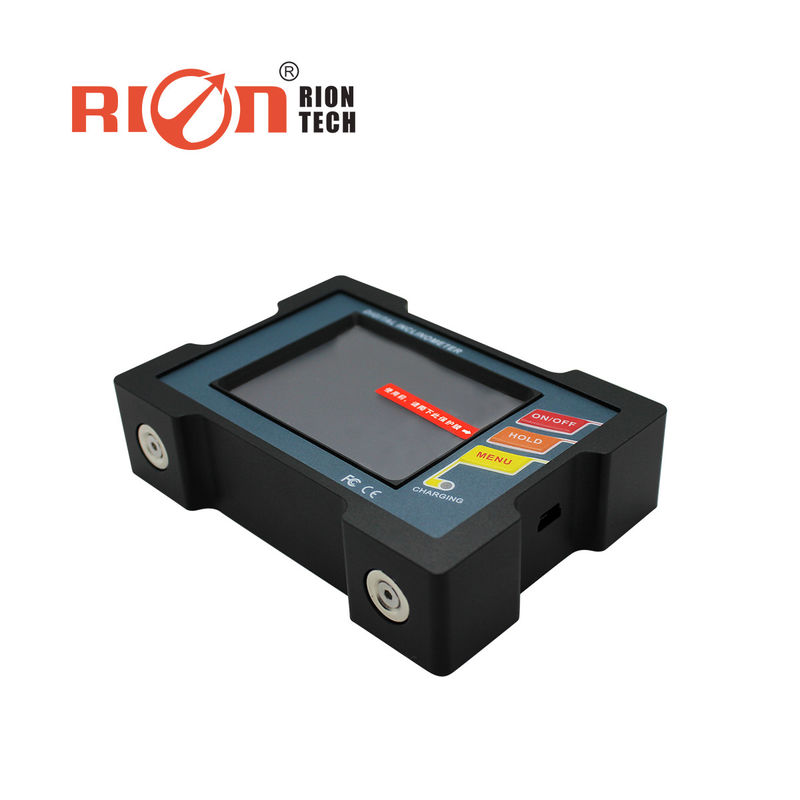

Electronic 3.7V RHOS Digital Level And Angle Finder IP54 Slope Degree

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, RHOS

Model Number: DMI810-15

Payment & Shipping Terms

Price: $350.00 - $360.00/Sets

Packaging Details: 1pcs/box,10pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 30000 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

digital level and angle finder RHOS

,

digital level and angle finder 3.7V

,

Electronic Angle Gauge IP54

Usage:
Magnetic Sensor
Theory:
Fluxgate
Output:
Digital Sensor, Standard 5Pin USB Connector
Material:
Aluminum
Size:
L107*W75*H27.1mm
Weight:
300g
Waterproof:
IP54
Installation Method:
Strong Magnet
Working Temp.:
-10~70 Celsius Degree
Power Supply:
3.7V Charging Lithium Battery
Shock Impact:
10grms,10-100Hz
Screen:
64 True Colors Night Vision Display Screen
Port:
Shenzhen
Usage:
Magnetic Sensor
Theory:
Fluxgate
Output:
Digital Sensor, Standard 5Pin USB Connector
Material:
Aluminum
Size:
L107*W75*H27.1mm
Weight:
300g
Waterproof:
IP54
Installation Method:
Strong Magnet
Working Temp.:
-10~70 Celsius Degree
Power Supply:
3.7V Charging Lithium Battery
Shock Impact:
10grms,10-100Hz
Screen:
64 True Colors Night Vision Display Screen
Port:
Shenzhen
Description
Electronic 3.7V RHOS Digital Level And Angle Finder IP54 Slope Degree

Electronic 3.7V RHOS Digital Level And Angle Finder IP54 Slope Degree

DMI810 DMI820 DIGITAL DISPLAY INCLINOMETER DIGITAL...

Description:
DMI810/DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !



Features:

★ Best accuracy:<0.005°

★ Repeatability:0.003°

★ Angle resolution:0.001°

★ Maximum measure range:±30°

★ User can set the alarm value by himself

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Double benchmark strong magnet installation

★ Working Temperature : -10°~ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate ZERO by himself

★ Built-in rechargable industry batteries

★ Night vision fours colors screen

★ IP54 protection class

★ °/mm/m Dual units switch function

★ Filter frequency optional

★ Three kinds of measurement mode selectable (radian, angle, mm)



Application :

★ Building construction

★ Automobile four-wheel testing

★ Road slope
★ Machinery installation

★ Piping installation

★ Industrial platform
★ Turntable testing

★ Pan unit angle detection

★ Production jig



Specifications:

PARAMETER DMI810 DMI820 UNIT
Meausre Axis Single Axis Daul Axis Axis
Angle Measure Range ±15 ° ±30 ° ±15 ° ±30 ° °
Angle Measurement Accuracy(Full Range) <0.005 <0.01 <0.005 <0.01 °
Angle Measure Resolution 0.001 0.001 0.001 0.001 °
Mm/m Measure Range 267 577 267 577 mm/m
Mm/m Measure Accuracy 0.1 0.2 0.1 0.2 mm/m
Mm/m Measure Resolution 0.02 0.02 0.02 0.02 mm/m
Repeatability 0.003 0.003 0.003 0.003 °
Measurement Mode Angle,Degree/Minute/Second,Mm/m Three modes can be set
Working Temperature -10°~ +70℃
Working Humidity 85%RH
Power Supply 3.7V Charging Lithium Battery
Ideal Charging Time 5h
Battery Continuous Working Time 11h
Equipped With Pc Software Vc Software
Data Output Signal USB2.0 (Virtual Serial Device)
Connect Plug In Standard Usb Connector, Rechargeable
Shock Resistance 10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact 10grms,10~100Hz
Waterproof Grade IP54
Material Aluminum Alloy Anodizing
Lcd 64 True Colors Night Vision Display Screen
Lcd Visible Area Size L57.6*W43.2mm
Size L109*W77*H27mm
Weight ≤350g


Electronic 3.7V RHOS Digital Level And Angle Finder IP54 Slope Degree 1

Electronic 3.7V RHOS Digital Level And Angle Finder IP54 Slope Degree 3

 Electronic 3.7V RHOS Digital Level And Angle Finder IP54 Slope Degree 4
Payment terms

T/T/Paypal/West Union



Packaging & Shipping
  • Packaging: carton with sponge
  • Delivery time: within 7 business days for common order after we receive the full payment
  • Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
Our Services



Pre-sale service

  • Evaluate your application, recommend the most suitable item;
  • Make you fully understand the products, usage and maitenance;
  • Answer all your questions, and let you have no doubt before make any decision;
  • Adjust, revise or redesign our products to consist with the application(for customized service);

Sales service

  • Recommend the best payment term and shipping term for you;
  • Make official quotation and PI with company Stamp;
  • Keep you posted about the products producing;
  • Send exactly requried products on time;
  • Provide tracking NO. and inform you when products leave factory and arrive destination;

Post-sale service

  • Instruct products connection, installation and application;
  • if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
  • Keep tracking the products usage and ask for suggestion and advice.



Company Information



Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.
Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.
You satisfaction is our mission.






FAQ



  • How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
  • How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
  • How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
  • How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
  • What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
  • What if no suitable item to be found: customerized service is available.
  • How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
