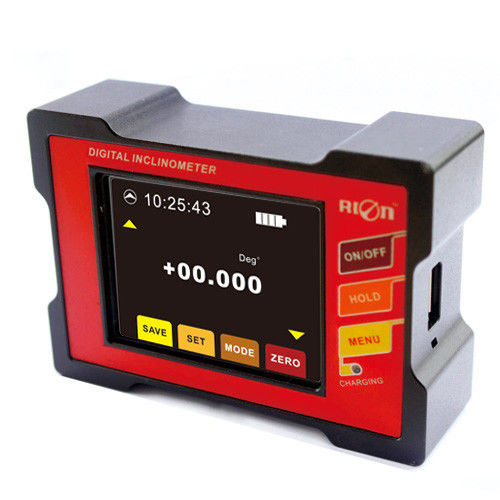

Hot Selling Touch Screen Single axis Digital Inclinometer for Various Industry Spot Monitoring
Application :
Technical Data
|
Angle Measuring range |
DMI810:±15 ° ; |
DMI810:±30 ° ; |
° |
|
MM measuring range |
267 |
577 |
mm |
|
Meausring axis |
Single axis |
Single axis |
|
|
The highest meausring accuracy |
<0.005 (Full measuring range) |
<0.01 (Full measuring range) |
° |
|
Angle Measuring resolution |
0.001 |
0.001 |
° |
|
MM measuring accuracy |
0.1 |
0.2 |
mm |
|
Three measurement mode selectable |
radian, angle, mm measuring can be selected |
|
|
|
MM measuring res |
0.02 |
mm |
|
|
LCD |
64 true colors night vision display screen |
||
|
LCD visible area size |
L57.6*W43.2 |
mm |
|
|
Working temperature |
-10°~ +70℃ |
°/℃ |
|
|
Working humidity |
85 |
%RH |
|
|
Power supply |
3.7VCharging Lithium battery |
V |
|
|
Ideal charging time |
3~4 |
h |
|
|
Battery sustainable charging times |
11 |
h |
|
|
Equipped with PC software |
VC software |
||
|
Data output signal |
USB1.1 |
||
|
Connect plug in |
Standard 5Pin USB connector |
||
|
Shock resistance |
10g@11ms,3Times/Axis(half sinusoid) |
g |
|
|
Shock impact |
10grms,10~100Hz |
g |
|
|
Weight |
300 |
g |
|
|
Waterproof grade |
IP54 |
||
|
Material |
Metal |
||
|
Size |
L107*W75*H27.1mm |
mm |
|
Order Information :
|
Item No. |
Desc. |
|
DMI810-15 |
Standard single-axis digital display inclinometer/ ±15°; |
|
DMI810-30 |
Standard single-axis digital display inclinometer/ ;±30°; |
