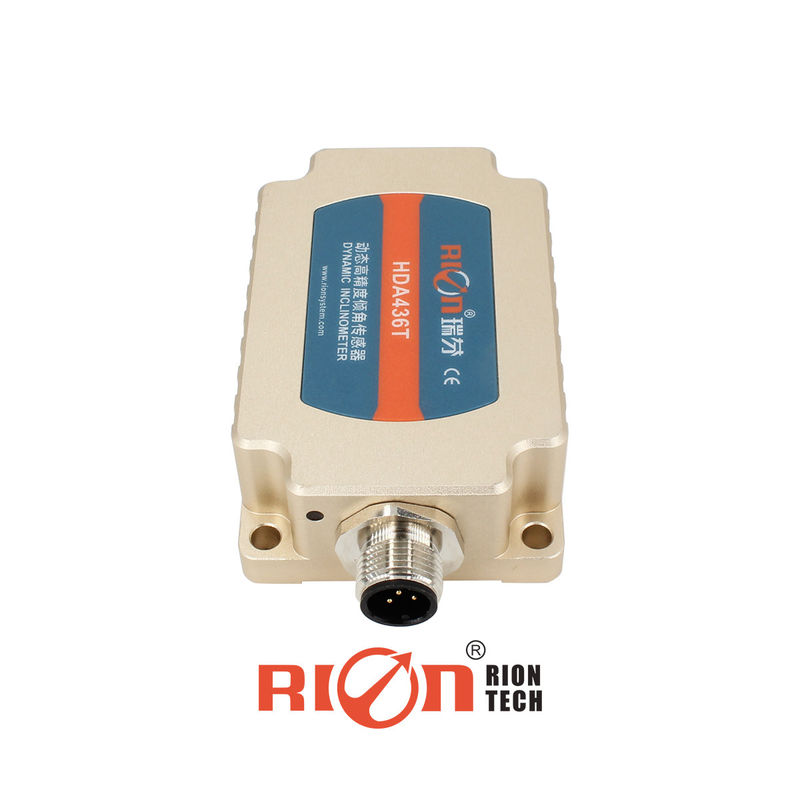

HDA4367T-C2 MEMS dynamic tilt sensor for measurement in motion
Key Features
Application
High vibration impact crushing equipment
Satellite antenna star search
Underground drilling rig attitude navigation
Railway locomotive monitoring
Geological equipment tilt monitoring
Oil drilling equipment
Ship navigation attitude measurement
Shield pipe jacking application
Satellite communication vehicle attitude detection
| HDA436T/HDA437T-C2/C3 | Condition | Index | |
| Measure range |
Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°) |
||
|
Measure axis |
X axis / Y axis / Z axis | ||
| Resolution1) |
0.01° |
||
|
Static accuracy2) |
@25℃ | ± 0.05° | |
| Dynamic accuracy | @25℃ | ± 0.1° | |
|
Gyro
|
range | - | ±250°/s |
| Zero bias stability (10s mean) | - | 8.5°/h | |
| Zero Bias Instability(allan) | - | 4.5°/h | |
| Angle random walk coefficient(allan) | - | 0.25°/sqrt(h) | |
|
Acceleration
|
range | - | ±8g |
| Bias stability(10s mean) | - | 0.02mg | |
| Bias instability(allan) | - | 0.005mg | |
| Speed random walk coefficient(allan) | - | 0.005m/s/sqrt(h) | |
| Zero point temp. Coefficient3) | -40~85℃ | ±0.01°/℃ | |
| Sensitivity temp. Coefficient4) | -40~85℃ | ≤100ppm/℃ | |
| Power-on startup time | 1S | ||
| Response time | 0.01S | ||
| Output signal | CAN2.0A/CAN2.0B | ||
| Electromagnetic compatibility | According to EN61000 and GBT17626 | ||
| MTBF | ≥ 98000 hours / time | ||
| Insulation resistance | ≥100 Megohm | ||
| Impact resistance | 100g @ 11ms, 3 axial direction (half sinusoid) | ||
| Anti-vibration | 10grms / 10~1000Hz | ||
| Waterproof level |
Standard IP67, optional IP68 and corrosion-resistant IP68 protection level |
||
| Cable |
Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable |
||
| Weight |
Single connector ≤165g / double connector ≤180g (Without cable) |
||
|
1)Resolution : It refers to the smallest change in the measured value that can be detected and resolved by the sensor within the measurement range. 2)Accuracy: refers to the root mean square difference between the measured and actual angle value by multiple measurements (>16 times) under normal temperature. 3)Zero temp. drift coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree. 4)Sensitivity temp. drift coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range. |
|||
