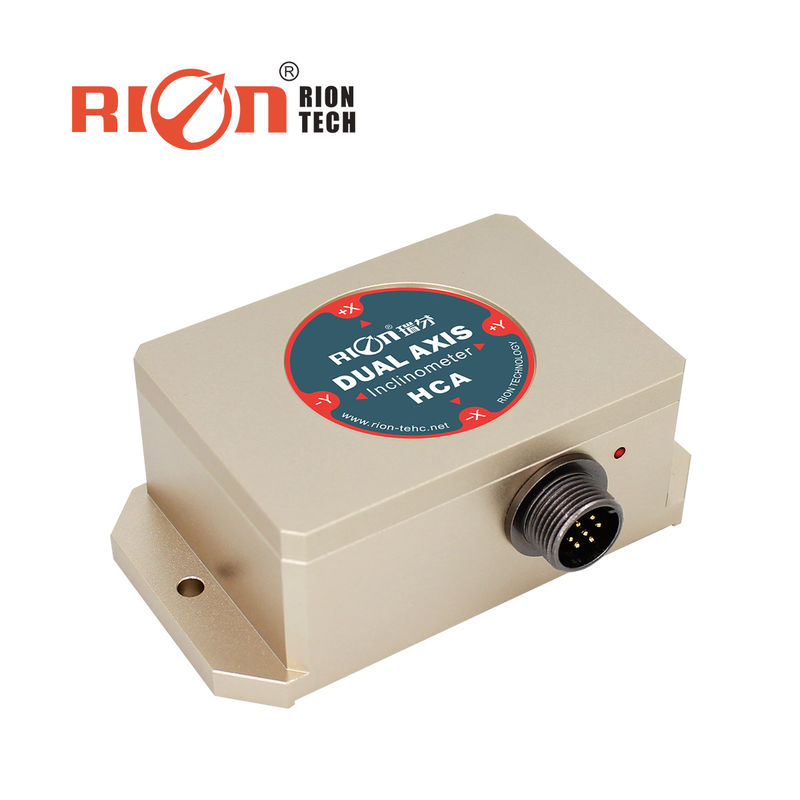

Waterproof Dual Axis Tilt Sensor Inclinometer Analog Voltage Signal

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: HCA510/HCA520

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 328USD/pcs

Packaging Details: carton

Delivery Time: 7 word days

Payment Terms: T/T, PayPal

Supply Ability: 5000/month

Get Best Price
Contact Now
Specifications
Highlight:

Dual Axis Tilt Sensor Inclinometer

,

Waterproof Tilt Sensor Inclinometer

,

dual axis inclinometer

Measure Range:
±30°
Measure Axis:
X Y
Zero Output:
2.5V
Resolution:
0.001°
Measure Accuracy:
0.005°
Long Term Stability:
0.01°
Weight:
190g
Measure Range:
±30°
Measure Axis:
X Y
Zero Output:
2.5V
Resolution:
0.001°
Measure Accuracy:
0.005°
Long Term Stability:
0.01°
Weight:
190g
Description
Waterproof Dual Axis Tilt Sensor Inclinometer Analog Voltage Signal

Waterproof Dual Axis Tilt Sensor Inclinometer Analog Voltage Signal



▶ TECHNICAL DATA



HCA510&520T CONDITION PARAMTERS UNIT
Measure range   ±10 ±30 ±60 °
Measure axis   X X X
Zero output 0° output 2.5 2.5 2.5 V
Resolution   0.001 0.001 0.001 °
Measure accuracy @25℃ 0.005 0.01 0.02 °
Long term stability   0.01 0.02 0.05 °
Zero Temp. coefficient -40~85℃ ±0.002 ±0.002 ±0.002 °/℃
Sensitivity temp. coefficient -40~85℃ ≤100 ≤100 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 s
Response frequency   1~20 1~20 1~20 Hz
EMC According to EN61000 and GBT17626
MTBF ≥50000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection glass IP67
Cables Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 5*0.4mm2 aviation connector
Weight 190g(without cable )





GENERAL DESCRIPTION



HCA510T & HCA520T is a high-precision analog voltage output single / dual axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane.

Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.

This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!



FEATURES

★ Single / dual axis inclination measurement ★ Range ± 1 ~ ± 60 ° optional

★ Accuracy: Refer to technical data ★ Wide voltage input 9 ~ 36V

★ Output mode 0 ~ 5V ★ Wide temperature operation -40 ~ + 85 ℃

★ IP67 protection ★ High vibration resistance> 2000g

★ High resolution 0.001 ° ★ Small size L90mm × W50mm × H34mm (customizable)



APPLICATION

★ Equipment vehicle leveling ★ Bridge and Dam monitoring

★ High-altitude platform safety protection ★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig ★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle ★ Tilt monitoring of geological equipment

★ Pitch angle measurement of directional satellite communication antenna

★ Mining machinery, oil drilling equipment ★ Equipment level control

★ Alignment control , curve control
