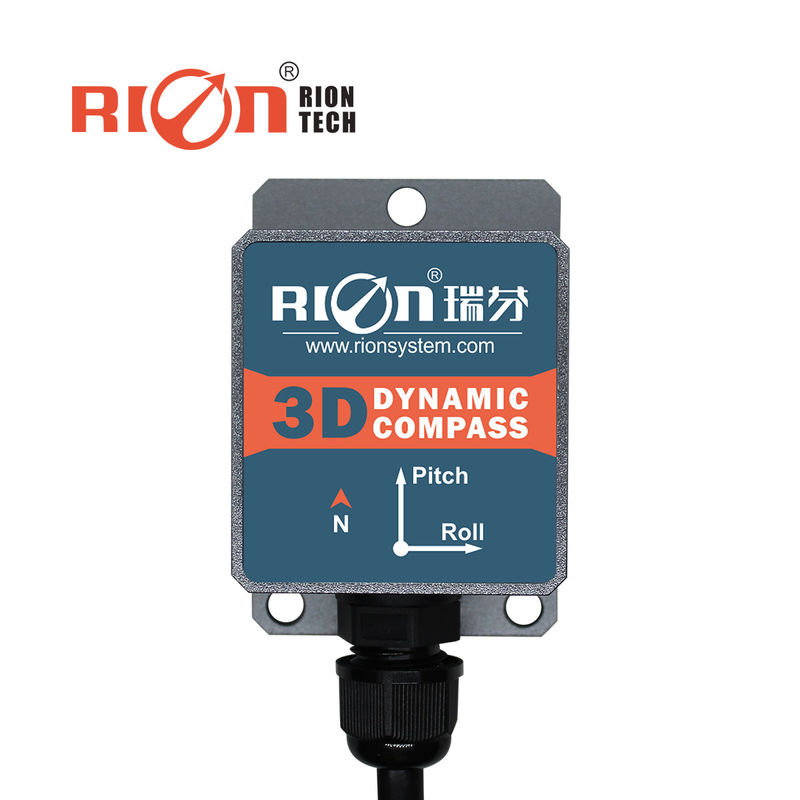

DDM360 3D Dynamic Electronic Compass With Inclination Compensation RION

DDM360 3D dynamic electronic compass with inclination compensation RION

DDM350B&DDM360B HIGH ACCURACY DYNAMIC 3D DIGITAL C...

Product Description:

DDM350B / DDM360B is a three-dimensional dynamic electronic compass, which integrates a 9-axis inertial measurement unit, including a three-axis accelerometer, a three-axis gyroscope, and a three-axis fluxgate. Utilizing the high dynamic angle characteristics of the gyroscope and the highly stable attitude characteristics of the accelerometer, the pitch and roll angles that follow the complex attitude changes are obtained through the dynamic inertial navigation algorithm. The geomagnetic azimuth angle adopts hard magnetic and soft magnetic calibration algorithms, so that the compass can eliminate the influence of the magnetic field through the calibration algorithm even in the environment with magnetic field interference. The heading is calculated in real time by the central processor, and the dynamic pitch and roll angles are used for dynamic heading compensation for a wide range of magnetic azimuths, ensuring that the compass can provide high-precision heading data even at tilt angles of up to ±85°. The electronic compass integrates a high-level DSP arithmetic processor with diversified output modes. The standard interfaces include RS232/RS485/TTL and other interfaces, and other communication interfaces can be customized.

Features:

• Inclination angle measurement range: pitch ±85°, roll angle ±180°
• With hard magnetic, soft magnetic and tilt angle compensation
• Standard RS232/RS485/TTL output interface
• Wide temp. range: -40℃～+85℃
• Inclination resolution: 0.1°
• Inclination accuracy: 0.2°

Technical Parameters:

DDM350B/360B		Parameter
Compass heading	Heading accuracy	0.8°
	Resolution	0.1°
	Pitch range	±90°
	Roll range	±180°
	Inclination accuracy	Static state 0.2°
		Dynamic 0.5°
	Resolution	0.1°
	Tilt compensation angle range	Roll ±180°
		Pitch ＜85°
Calibration	Hard iron calibration	yes
	Soft iron calibration	yes
	Magnetic field interference calibration method	One rotation of the plane (two-dimensional calibration)
Physical feature	Size	Shell size:L55×W37×H24mm
		PCBA size: L33×W27×H9mm
	RS232/RS485/TTL Interface connection line	Shell : 4PIN 1m direct lead
		Single-board : 4 PIN 30cm terminal wire
Interface	Startup delay	<50ms
	Output rate	5~100Hz(settable)
	Baud rate	4800到115200baud
	Output format	Binary high performance protocol
Power	Supply voltage	(Default) DC +5V
		(Customized) DC 9～36V
	Current (MAX)	45mA
	Ideal model	35mA
	Sleep mode	TBD
Environment	Operating range	-40℃～+85℃
	Storage temperature	-40℃～+85℃
	Vibration resistance	2500g
EMC	According to EN61000 and GBT17626
MTBF	≥98000 hours/time
Insulation resistance	≥100 megohm
Impact resistance	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Weight	Single board: ≤25g Enclosure: ≤135g (including 1 meter cable)

Applications:

★ Satellite antenna search

★ Antenna servo control

★ Marine surveying and mapping

★ Unmanned aerial vehicle

★ Infrared imager

★ Special occasion robot
