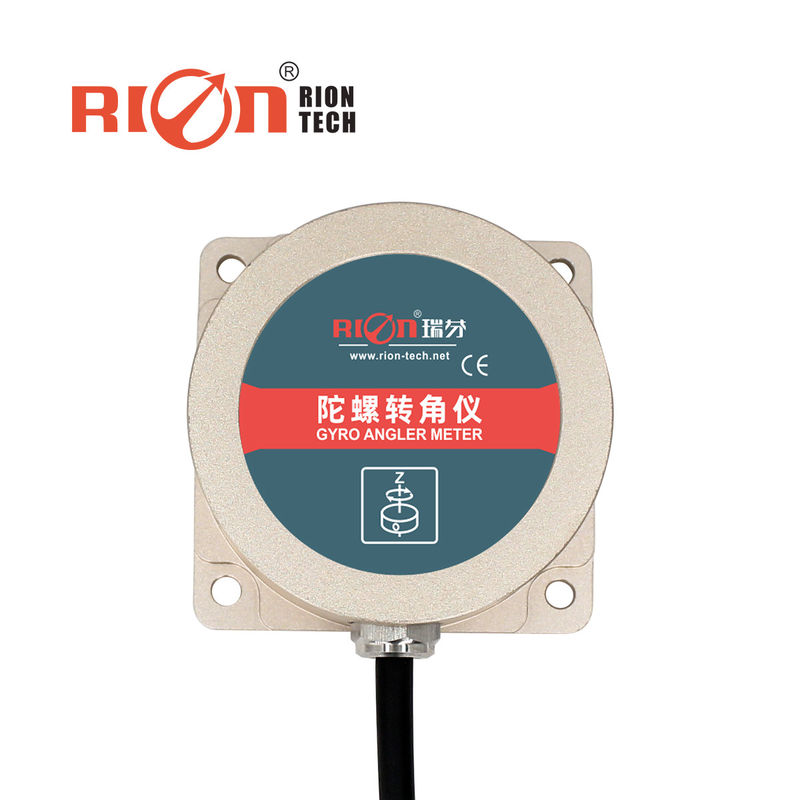

TL740D MEMS GYROSCOPE SENSOR IP67 PROTECTION CAR NAVIGATION

Product Details

Place of Origin: Shenzhen

Brand Name: RION

Certification: CE

Model Number: TL740D

Document: TL740D ANGULAR GYRO SENSOR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $235/Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 5-8 work days

Payment Terms: T/T,,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

Relative Heading Angle MEMS Gyroscope Sensor

,

IP67 Protection MEMS Gyroscope Sensor

,

Car Navigation MEMS Gyroscope Sensor

Mesuring Range:
Relative Heading Angle (±180°)
Acquisition Bandwidth:
>100Hz
Weight:
≤150g (including 1 Meter Cable)
Resolution:
0.01°
Protecting:
IP67
Working Life:
10 Years
Starting Time:
5s(Static)
Positional Accuracy:
<2mm/m
Mesuring Range:
Relative Heading Angle (±180°)
Acquisition Bandwidth:
>100Hz
Weight:
≤150g (including 1 Meter Cable)
Resolution:
0.01°
Protecting:
IP67
Working Life:
10 Years
Starting Time:
5s(Static)
Positional Accuracy:
<2mm/m
Description
TL740D MEMS GYROSCOPE SENSOR IP67 PROTECTION CAR NAVIGATION


TL740D MEMS GYROSCOPE SENSOR IP67 PROTECTION CAR NAVIGATION

Product Description:

This product is specially used for robot car, AGV vehicle relative heading orientation, attitude control and other related applications , instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.



Features:

  • Strong vibration resistance
  • Light weight
  • Long life,strong stability
  • Cost-effective
  • All solid state
  • Compact & light design




Technical Parameters:

TL740D MEMS GYROSCOPE SENSOR IP67 PROTECTION CAR NAVIGATION 0TL740D

Parameters

Measuring range

relative heading Angle (±180°)

Acquisition bandwidth

>100Hz

Resolution

0.01°

positional accuracy

<2mm/m (converted from angle accuracy)

Nonlinear

0.1% of FS

Gyroscope zero bias stability (10s smooth)

10°/h

Max angle rate

150°/s

Acceleration range

±4g

Acceleration resolution

0.001g

Acceleration accuracy

5mg

Starting time

5s(Static)

Input Voltage

DC9V~36V

Current

60mA(12V)

Working Temp.

-40 ~ +85℃

Storage Temp.

-40 ~ +85℃

Vibration

5g~10g

Impact

200g pk,2ms,½sine

Working life

10 years

Output rate

5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set

Output signal

RS232 / RS485 / TTL (Optional)

MTBF

98000 hours /times

Insulation resistance

≥100 Megohm

Impact resistance

100g@11ms / 3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms / 10~1000Hz

Protecting

IP67

Weight

≤170g (including 1 meter cable)

Applications:

  • AGV truck
  • Car Navigation
  • 3D virtual reality
  • Platform stability
  • Auto safety system
  • Robot
  • Turck-mounted satellite antenna equipment
  • Industrial control


TL740D MEMS GYROSCOPE SENSOR IP67 PROTECTION CAR NAVIGATION 1

TL740D MEMS GYROSCOPE SENSOR IP67 PROTECTION CAR NAVIGATION 2

TL740D MEMS GYROSCOPE SENSOR IP67 PROTECTION CAR NAVIGATION 3
