Product Details
Place of Origin: Shenzhen
Brand Name: RION
Model Number: LCA332
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: $78.00 - $79.00/Pieces
Packaging Details: CARTON
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 Bag/Bags per Month
Response Time: |
0.2s |
Input Voltage: |
DC 9~36v |
Measure Axis: |
X Y Axis |
Long Term Stability: |
0.05 Deg |
Long-term Stability: |
0.05 Deg |
Wide Working Temp: |
-40~+85℃ |
Power On Time: |
0.1S |
Response Time: |
0.2s |
Input Voltage: |
DC 9~36v |
Measure Axis: |
X Y Axis |
Long Term Stability: |
0.05 Deg |
Long-term Stability: |
0.05 Deg |
Wide Working Temp: |
-40~+85℃ |
Power On Time: |
0.1S |

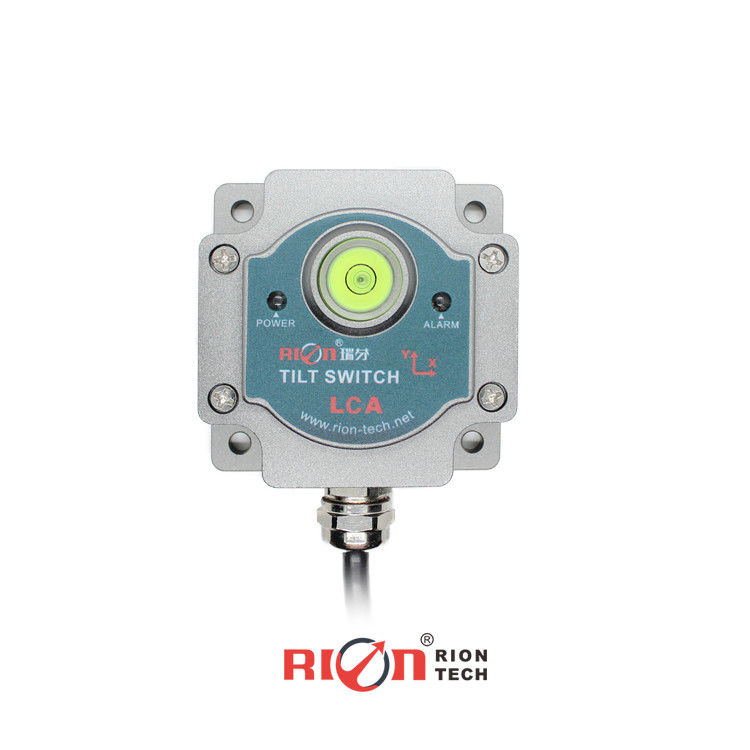

LCA331A series a low cost tilt switch developed by RION for application like level safety alarming and platform level monitor and alarm. Alarm threshold value is pre-setable. when the inclination exceed set alarm value, it will output switch output signal(output voltage=input voltage), to drive the solenoid valve hydraulic system or drive buzzer or alerming light for the safety of platform. Its main function is to monitor and alarm the(dual axis or single axis) inclination of platform automatically. LCA331A series tilt switch has high accuracy bubble for zero reference, LED alarming function.
This Inclinometer Switch is a reliable and accurate Tilt Angle Detector, also known as an Inclination Sensor. It has a fast response time of 0.2s, a long-term stability of 0.05 Deg, and a power on time of 0.1S. It operates within a wide working temperature range of -40~+85℃, making it suitable for various applications that require precise angle detection.
| LCA331&LCA332 |
CONDITIONS | PARAMETER | UNIT |
| Measure range | ±15 | ° | |
| Measure axis | X Y | Axis | |
| Resolution | 0.05 | ° | |
| Measure accuracy | 0.1 | ° | |
|
Long-term stability |
0.05 | ° | |
| Zero temp. coeffiecient | -40～85℃ | ±0.01 | °/℃ |
| Temp.Sensitivity coefficient | -40～85℃ | ≤100 | ppm/℃ |
| Power on time | 0.1 | S | |
|
Response time |
0.2 | s | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | ||
| MTBF | ≥50000hours/times | ||
| Insulation Resistance | ≥100MΩ | ||
| Impact resistance | 100g@11ms,3 axial direction (half sinusoid) | ||
| Anti-shock | 10grms,10～1000Hz | ||
| Protection grade | Direct lead IP67; Aviation plug IP65 | ||
| Cables | 1m, durable, grease proof, wide temperature, shield cable, 4*0.4 mm2 | ||
| Weight | 140g(without cable) | ||
