TL725P GYROSCOPE IMU FOR AUTONOMOUS AGRICULTURAL MACHINERY NAVIGATION FARMING MACHINE

Name: TL725P GYROSCOPE IMU FOR AUTONOMOUS AGRICULTURAL MACHINERY NAVIGATION FARMING MACHINE
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: TL725P
Price: 43 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen

Brand Name: RION

Certification: CE

Model Number: TL725P

Document: TL725P IMU GYRO FOR FARM MA...RY.pdf

Payment & Shipping Terms

Price: $43/Pieces

Delivery Time: 5-8 work days

Payment Terms: T/T,,Paypal

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Acceleration Monitoring Digital Gyroscope Sensor, Anti-vibration Digital Gyroscope Sensor, 10 - 1000Hz Digital Gyroscope Sensor


Three-axis Attitude:	Azimuth ±180°, Roll Angle±180°, Pitch Angle±90	Bandwidth:	>100Hz
Nonlinear:	0.1% Of FS	Startup Time:	500ms
Current:	35mA(12V)	Working Temp.:	-40 ~ +80℃
Vibration:	5g~10g	Shock:	200g Pk, 2ms, ½sine

Three-axis Attitude:	Azimuth ±180°, Roll Angle±180°, Pitch Angle±90
Bandwidth:	>100Hz
Nonlinear:	0.1% Of FS
Startup Time:	500ms
Current:	35mA(12V)
Working Temp.:	-40 ~ +80℃
Vibration:	5g~10g
Shock:	200g Pk, 2ms, ½sine

Description

TL725P GYROSCOPE IMU FOR AUTONOMOUS AGRICULTURAL MACHINERY NAVIGATION FARMING MACHINE

Product Description:

The TL725P is a professional-grade gyroscope IMU designed for navigation in autonomous agricultural machinery. It integrates an industrial three-axis gyroscope and three-axis accelerometer, ensuring smooth and reliable attitude data output even under the harsh vibration conditions of farming equipment.
Built on a MEMS inertial measurement platform, it employs advanced dynamic attitude algorithms to process gyroscope angular velocity and provide real-time outputs including: dynamic inclination angle, horizontal azimuth angle, three-axis angular velocity, three-axis acceleration, and forward axial acceleration.
Through Z-axis single-axis integration and real-time feedback counting, the TL725P also enables precise front-wheel steering control for agricultural machinery. Tailored for automated farming equipment, it supports high-precision operations and efficiency, making it a key component for next-generation precision agriculture systems.

Features:

★ Horizontal azimuth & attitude angle output
★ Real-time angular rate output
★ Forward axial acceleration monitoring
★ All-solid-state design with long service life and high stability
★ Compact, lightweight, and robust structure
★ RS232/RS485 communication options
★ Wide power supply range: DC 5–12V / DC 9–36V

Technical Parameters:

TL725P		PARAMETERS
Three-axis attitude		Azimuth ±180°, Roll angle±180°, Pitch angle±90
Bandwidth		>100Hz
Nonlinear		0.1% of FS
Three-axis gyroscope	Gyro Range	250°/s
	Angle random walk coefficient (allan)	0.25°/sqrt(h)
	Bias stability mg (10s smooth)	8.5°/h
Three-axis acceleration	Range	±4g
	Resolution	0.001g
	Accuracy	1mg
	Bias instability°/h (allan)	0.05mg
	Speed random walk coefficient (allan)	0.015m/s/sqrt(h)
	Bias stability°/h(10s average)	0.15mg
Startup time		500ms
Input voltage		+9~36V
Current		35mA(12V)
Working temp.		-40 ~ +80℃
Storage temp.		-40 ~ +85℃
Vibration		5g~10g
Shock		200g pk, 2ms, ½sine
Working life		10 Year
Output frequency		1Hz~200Hz Settable
Output signal		RS232 / RS485 / (Optional)
MTBF		≥98000 Hours/times
Insulation resistance		≥100MΩ
Shockproof		100g@11ms/3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms/10～1000Hz
Protection grade		IP67
Cable		Standard 1 m 4 pin shield wire
Weight		≤135g (including 1 meter cable)

Applications:

★ Autonomous agricultural machinery
★ Precision farming
★ Combine harvesters
★ General farming equipment

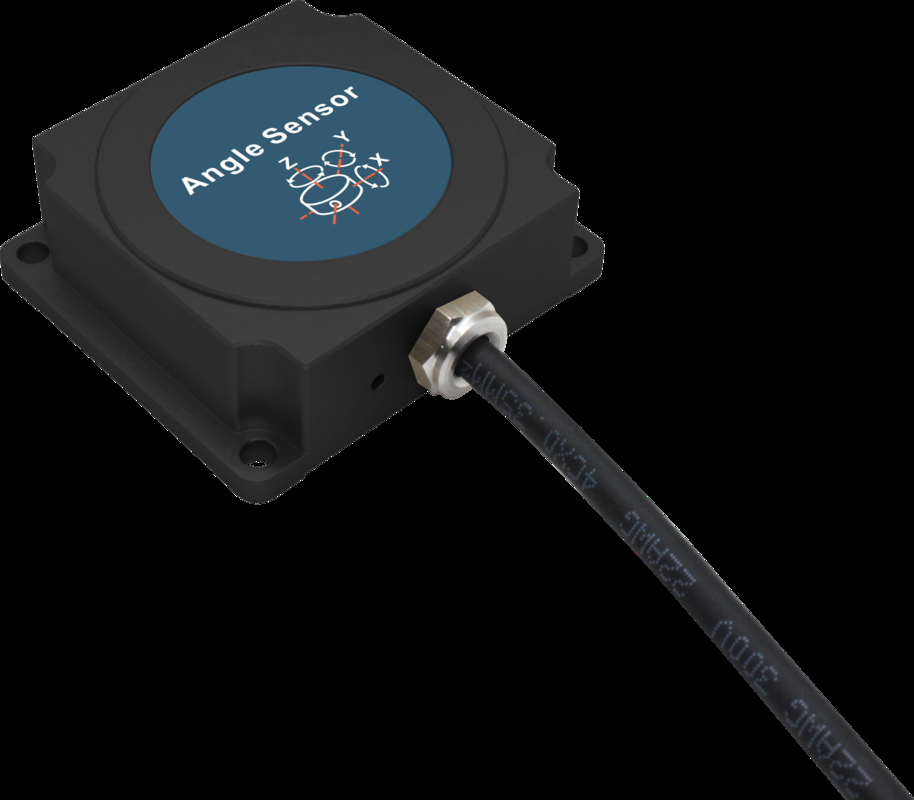

TL725P GYROSCOPE IMU FOR AUTONOMOUS AGRICULTURAL MACHINERY NAVIGATION FARMING MACHINE 1

TL725P GYROSCOPE IMU FOR AUTONOMOUS AGRICULTURAL MACHINERY NAVIGATION FARMING MACHINE 2

TL725P GYROSCOPE IMU FOR AUTONOMOUS AGRICULTURAL MACHINERY NAVIGATION FARMING MACHINE 3
