Measure Range: |
Azimuth Angle (±180)° |
Acquisition Bandwidth: |
>100Hz |
Nonlinear: |
0.1% Of FS |
Input Voltage: |
9~36VDC / 5VDC (Optional) |
Current: |
30mA(12V) |
Impact: |
200g Pk,2ms,½sine |
Working Life: |
10 Years |
Output Signal: |
RS232 Or RS485 |
Measure Range: |
Azimuth Angle (±180)° |
Acquisition Bandwidth: |
>100Hz |
Nonlinear: |
0.1% Of FS |
Input Voltage: |
9~36VDC / 5VDC (Optional) |
Current: |
30mA(12V) |
Impact: |
200g Pk,2ms,½sine |
Working Life: |
10 Years |
Output Signal: |
RS232 Or RS485 |

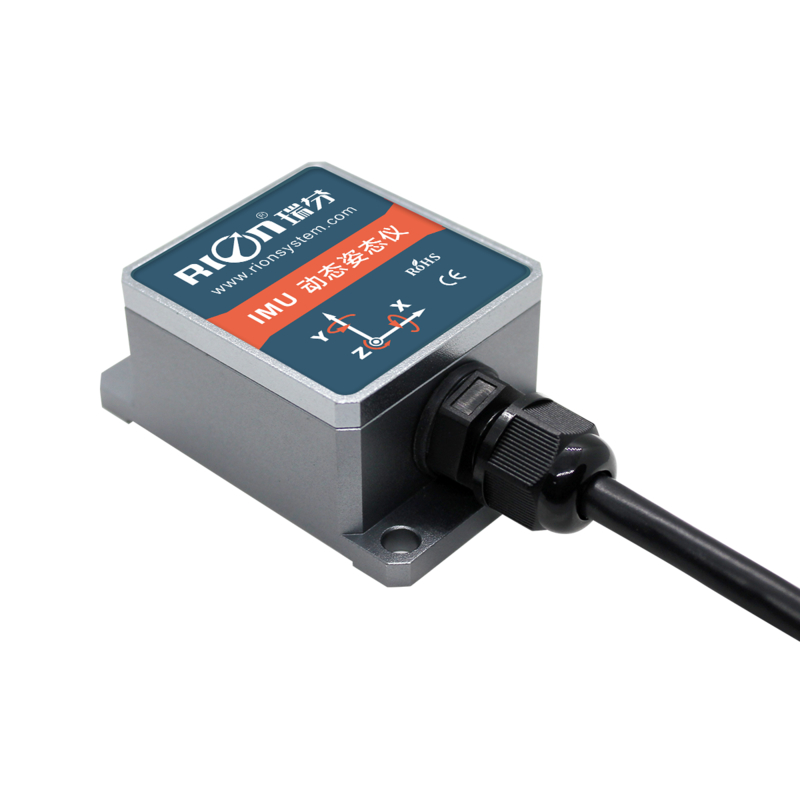

TL720D is a compact dynamic attitude sensor based on the latest MEMS platform. With integrated inertial navigation and attitude fusion algorithms, it delivers real-time azimuth angle while reducing short-term gyro drift. Ideal for AGV, robotics, UAVs, and navigation systems, it replaces traditional magnetic bar guidance and ensures reliable autonomous orientation.
★ Real-time azimuth output ★ Strong vibration resistance
★ Compact & lightweight ★ Stable, long service life
★ Cost-effective solution ★ RS232/RS485 optional
|
Parameters |
|
Measure range |
Azimuth Angle (±180)° |
|
Acquisition bandwidth |
>100Hz |
|
Nonlinear |
0.1% of FS |
|
Accelerometer |
Accelerometer range |
±4g |
Accelerometer resolution |
0.001g |
|
Accelerometer accuracy |
5mg |
|
Bias instability(allan) |
0.05mg |
|
Speed random walk coefficient(allan) |
0.015m/s/sqrt(h) |
|
Bias stability(10s average) |
0.15mg |
|
Gyro |
Gyro Angular Velocity Range |
±250°/s |
Angle random walk coefficient(allan) |
0.30°/sqrt(h) |
|
Bias stability(10s smooth) |
10°/h |
|
Starting time |
AGV application: 5~6s |
|
AGM application: 1.5s |
||
Input Voltage |
9~36VDC / 5VDC (Optional) |
|
Current |
30mA(12V) |
|
Working Temp. |
-40℃ ~ +80℃ |
|
Storage Temp. |
-40℃ ~ +85℃ |
|
Vibration |
5g~10g |
|
Impact |
200g pk, 2ms, ½sine |
|
Working life |
10 years |
|
Output rate |
5Hz~200Hz can set |
|
Output signal |
RS232 or RS485 |
|
MTBF |
≥98000 hours / times |
|
Insulation resistance |
≥100 Megohm |
|
Impact resistance |
100g@11ms / 3 Axial Direction (Half Sinusoid) |
|
Anti-vibration |
10grms / 10~1000Hz |
|
Protecting |
IP67 |
|
Weight |
≤135g (including 1 meter standard cable) |
★ AGV trucks & robotics ★ Vehicle navigation
★ UAV & platform stabilization ★ Industrial automation
★ Auto safety systems ★ 3D virtual reality
