Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, FCC,ROHS , ISO
Model Number: DAM825
Document: DAM825 Wireless LoRa Displa...ay.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 1pcs in wooden box with safe sponge inside
Delivery Time: 5-10 work days
Payment Terms: L/C, Paypal, T/T
Supply Ability: 30000 Unit/Units per Month
Communication Method: |
470M LoRa Communication |
Supported Resolution: |
0.01/0.001 |
LCD Screen: |
64 True Colors Night Vision Display Screen |
Power: |
3.7V Chargeable Lithium Battery |
Charging Temperature: |
0~+45 |
Charging Interface: |
5V Standard USB Connector |
Anti-vibration: |
10g@11ms、3 Axial Direction (Half Sinusoid) |
Waterproof Grade: |
IP54 |
Communication Method: |
470M LoRa Communication |
Supported Resolution: |
0.01/0.001 |
LCD Screen: |
64 True Colors Night Vision Display Screen |
Power: |
3.7V Chargeable Lithium Battery |
Charging Temperature: |
0~+45 |
Charging Interface: |
5V Standard USB Connector |
Anti-vibration: |
10g@11ms、3 Axial Direction (Half Sinusoid) |
Waterproof Grade: |
IP54 |

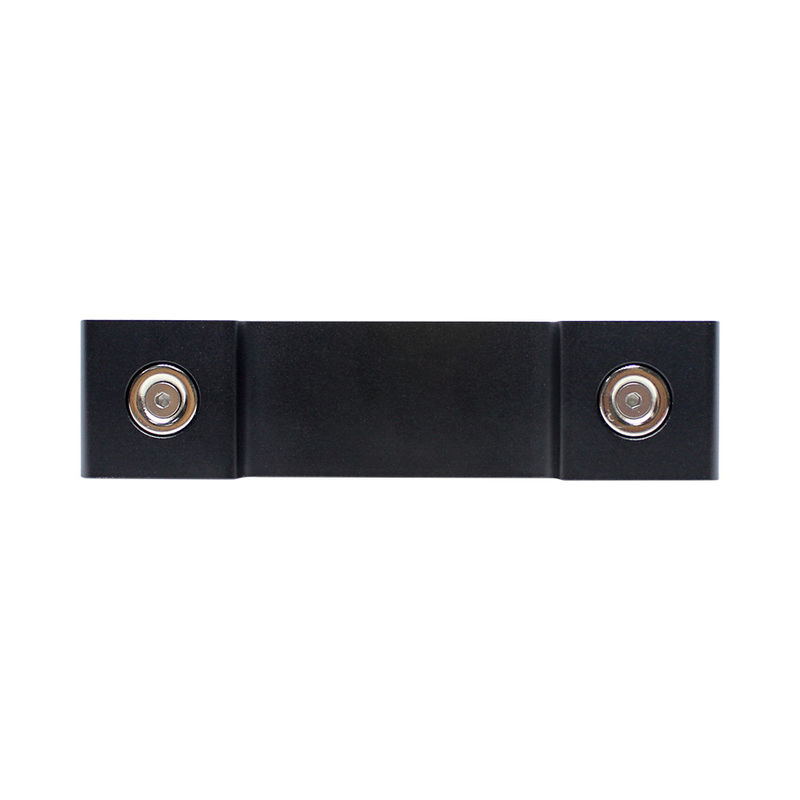

DAM825 Wireless LoRa Display for Real-Time Angle Monitoring 470M
GENERAL DESCRIPTION
RION develops and manufactures wireless LoRa displays, designed to pair with our inclination sensor products. These displays provide real-time angle readings over long distances, utilizing the latest LoRa technology for extended transmission range. The system incorporates frequency hopping technology, using pseudo-random codes and frequency shift keying, ensuring continuous frequency hopping and spectrum spreading. This feature enhances resistance to interference, minimizes power consumption, and lowers costs, making it ideal for complex environments.
The display features an industrial-grade, wide-temperature digital screen for clear visibility and is equipped with PVC film buttons to improve user experience. It includes a large rechargeable battery for extended usage and a portable, easy-to-install metal shell. Customization options for function keys, panel colors, and third-party sensor integration are available, making it especially suited for real-time monitoring in harsh industrial settings.
FEATURES
★ Remote display for all RION inclination sensors
★ Resolution: 0.01°/0.001°
★ Powered by lithium battery
★ IP54 protection rating
★ Wide temperature range: -20°C to +70°C
★ Easy installation with screw holes
★ Shell size: L115×W38×H77mm
★ Transmission distance up to 200m
APPLICATIONS
★ Engineering vehicle leveling
★ Bridge and dam monitoring
★ Laser equipment positioning
★ Angle control of medical equipment
★ Attitude navigation for underground drilling rigs
★ Railway gauge leveling
★ Precision machine tool leveling
★ Geological equipment tilt monitoring
SPECIFICATIONS
DMA825 | Parameter | Unit |
Communication method | 470M LoRa communication | / |
Supported resolution | 0.01/0.001 | ° |
LCD screen | 64 True Colors Night Vision Display Screen | / |
LCD Viewable area size | L57.6*W43.2 | mm |
Power | 3.7V Chargeable lithium battery | V |
Working humidity | 85 | %RH |
Storage temperature | -20~+35 | ℃ |
Working temperature | -20~+70 | ℃ |
charging temperature | 0~+45 | ℃ |
Charging interface | 5V Standard USB connector | / |
Ideal charging time | 12 | hour |
Battery continuous working time | 8 | hour |
Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | g |
impact resistance | 10grms,10~100Hz | g |
Waterproof grade | IP54 | / |
Material | Aluminum alloy anodizing | / |
Size | L115×W38×H77 | mm |
Weight | 300 | g |
