Water-Proof Air-Plug Connector Wireless Inclinometer HCA526T-WL

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: HCA526T-WL

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $450.00/Pieces

Packaging Details: CARTON

Delivery Time: 7 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

Air-Plug Connector Wireless Inclinometer

,

Wireless Inclinometer HCA526T-WL

,

Water-Proof Wireless Inclinometer

Usage:
Tilt Sensor
Resolution:
0.001°
Axis:
Dual Axis
Dimension:
90*50*33mm
Shockproof:
Shockproof>20000g
Anti-vibration:
110grms、10~1000Hz
Accuracy:
±0.05°
Power Supply:
DC9-36V
Software Compatibility:
Windows, IOS, Android
Output Signal:
RS232/RS485/RS422/TTL/CAN/MODBUS
Data Transmission Distance:
Up To 100m
Frequency:
200 HZ
Operation Temperature:
-10°C - +50°C
Usage:
Tilt Sensor
Resolution:
0.001°
Axis:
Dual Axis
Dimension:
90*50*33mm
Shockproof:
Shockproof>20000g
Anti-vibration:
110grms、10~1000Hz
Accuracy:
±0.05°
Power Supply:
DC9-36V
Software Compatibility:
Windows, IOS, Android
Output Signal:
RS232/RS485/RS422/TTL/CAN/MODBUS
Data Transmission Distance:
Up To 100m
Frequency:
200 HZ
Operation Temperature:
-10°C - +50°C
Description

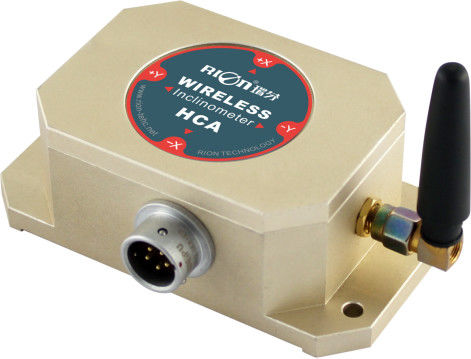

Water-Proof Air-Plug Connector Wireless Inclinometer HCA526T-WL

Water-Proof Air-Plug Connector Wireless Inclinometer HCA526T-WL



FEATURES

★ Single/Dual-Axis Inclinometer ★ Measuring Range :±1~±90° optional

★ Wide voltage input: 9~36V ★ Wide temperature working: -40~+85℃

★ Resolution: 0.001° ★ Water-proof air-plug connector

★ IP67 protection class ★ Highly anti-vibration performance >2000g ★ Small size :90×50×34mm(customized)



APPLICATION

★ Engineering vehicle leveling ★ Bridge and large monitoring

★ Laser equipment positioning ★ Angle control of medical equipment

★ Railway gauge and gauge leveling ★ Precision machine tool level control

★ Geological equipment tilt monitoring ★ Attitude navigation of underground drilling rig

★ Directional satellite communication antenna elevation measurement



▶ PRODUCT DESCRIPTION

HCA526T-WL is a wireless transmission dual-axis tilt sensor launched by RION for the industrial field control field. The product is divided into two parts: wireless induction probe and wireless data reception. Both parts have independent receiving antennas. The wireless ISM full-band working frequency is adopted, which conforms to the ISM band communication standard and does not need to apply for frequency points. Carrier frequency is within 400-480MHZ. The communication distance can reach 200 meters in the visible open area. The GFSK modulation mode adopts a high-efficiency forward error correction channel coding technology, and improves the capability of data for resisting burst interference and random interference. The acceleration measurement structure adopts aluminum alloy shell and full waterproof structure, which can work outdoors for monitoring application for a long time. The product is divided into a wireless inclinometer and a wireless data receiver. The receiver is composed of a receiving antenna and an aviation connector. The receiver outputs the acceleration measurement value received by the wireless module through the RS232/RS485 interface. The user only needs to provide a power supply and collect its digital signal to measure and analyze the acceleration and vibration change information of the remote object in real time. The inclinometer has a built-in 16bit A/D differential converter with high precision, which can measure the tilt and pitch angle of the sensor output relative to the horizontal plane through a 5-order filtering algorithm. The output interfaces RS485, RS232, RS422 and TTL are optional. Because of the built-in digital temperature sensor with high precision, the temperature drift of the sensor can be corrected according to the change of the built-in temperature sensor to ensure the high repeatability of the product in low and high temperature environments. The standard output response frequency can be up to 18 Hz. If higher response frequency is required, we can customize it according to the user. Products are truly industrial products, reliable and stable performance, good scalability, a variety of output options. And is suitable to be apply to various severe industrial control environments.



Water-Proof Air-Plug Connector Wireless Inclinometer HCA526T-WL 0HCA516/526T CONDITION PARAMETERS UNIT
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   XY XY XY XY
Resolution   0.001 0.001 0.001 0.001 °
Measure accuracy   0.005 0.01 0.02 0.05 °
Long term stability   0.01 0.02 0.05 0.08 °
Zero Temp.coefficient -40~85℃ ±0.002 ±0.002 ±0.002 ±0.002 °/℃
Sensitivity temp-coeffi -40~85℃ ≤50 ≤50 ≤50 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 0.02 s
Response frequency 5Hz,15Hz,35Hz,50Hz
output signal RS232/RS485/RS422/TTL/CAN/MODBUS
EMC According to EN61000 and GBT17626
MTBF ≥50000hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector
Weight 190g(without cable)



MECHANICAL PARAMETERS

○ Connector: 1m straight lead (customizable)

○ Protection level: IP67

○ Shell material: aluminum alloy shield oxidation

○ Installation: 3 M4 screws





Water-Proof Air-Plug Connector Wireless Inclinometer HCA526T-WL 1


Water-Proof Air-Plug Connector Wireless Inclinometer HCA526T-WL 4

Water-Proof Air-Plug Connector Wireless Inclinometer HCA526T-WL 6
