DAM825 Wireless Inclinometer Display Unit with 200m Transmission Distance and Wide Temperature Operation -20～+70℃ in Aluminum Alloy Anodizing

Name: DAM825 Wireless Inclinometer Display Unit with 200m Transmission Distance and Wide Temperature Operation -20～+70℃ in Aluminum Alloy Anodizing
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DAM825
Price: 280.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: DAM825

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $280.00/Pieces

Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 5 days for sample

Payment Terms: T/T,Paypal

Supply Ability: 500/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Wireless Inclinometer Display Unit, DAM825 Inclinometer Display Unit, Wireless LoRa Screen Monitor


Communication Method:	470M Loar Communication	Supported Resolution:	0.01/0.001°
LCD Screen:	64 True Colors Night Vision Display Screen	Power:	3.7V Chargeable Lithium Battery

Communication Method:	470M Loar Communication
Supported Resolution:	0.01/0.001°
LCD Screen:	64 True Colors Night Vision Display Screen
Power:	3.7V Chargeable Lithium Battery

Description

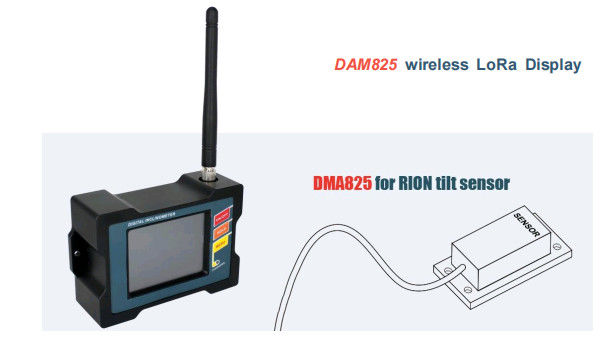

DAM825 Wireless Inclinometer Display Unit with 200m Transmission Distance and Wide Temperature Operation -20～+70℃ in Aluminum Alloy Anodizing

DAM825 Wireless Inclinometer Display Unit, Wireless LoRa Screen Monitor

Key Features

Remote display of all inclination product data from RION sensors
Long-range transmission up to 200m
High resolution: 0.01°/0.001°
Powered by rechargeable lithium battery
Wide operating temperature range: -20℃ to +70℃
IP54 protection rating for dust and water resistance
Compact dimensions: 115×38×77mm (L×W×H)
Includes screw holes for secure mounting

Applications

Engineering vehicle leveling systems
Bridge and dam structural monitoring
Laser equipment positioning
Underground drilling rig attitude navigation
Railway track gauge and leveling
Precision machine tool level control
Geological equipment tilt monitoring

Product Overview

The DAM825 Wireless LoRa Display Unit is an industrial-grade monitoring solution developed by RION for remote angle measurement applications. This display unit pairs with compatible RION inclination sensors to provide real-time angle data visualization from extended distances using advanced LoRa wireless technology.

Featuring a high-visibility industrial wide-temperature digital screen with 64 true colors, the unit ensures clear readability in various lighting conditions. The durable design includes PVC membrane buttons for reliable operation, a large-capacity rechargeable battery for extended use, and a rugged aluminum alloy housing for portability and easy installation in demanding industrial environments.

Customization options are available for function keys, panel colors, and integration with third-party sensor solutions.

Technical Specifications

Parameter	Value	Unit
Communication method	470M LoRa communication	/
Supported resolution	0.01/0.001	°
LCD screen	64 True Colors Night Vision Display Screen	/
LCD Viewable area size	57.6×43.2	mm
Power	3.7V Chargeable lithium battery	V
Working humidity	85	%RH
Storage temperature	-20～+35	℃
Working temperature	-20～+70	℃
Charging interface	5V Standard USB connector	/
Ideal charging time	12	hour
Battery continuous working time	8	hour
Anti-vibration	10g@11ms,3 Axial Direction (Half Sinusoid)	g
Impact resistance	10grms,10～100Hz	g
Waterproof grade	IP54	/
Material	Aluminum alloy anodizing	/
Size	115×38×77	mm
Weight	300	g
