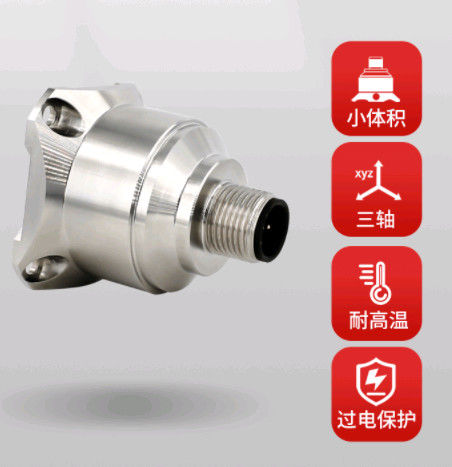

AKS392 Triaxial Accelerometer Vibration Sensor With Multi Output X, Y , Z Axis & Temperature

AKS392 Triaxial Accelerometer Vibration Sensor With Multi Output X, Y , Z Axis & Temperature

Data sheet download please click below :

AKS392 MEMS DIGITAL ACCELEROMETER.pdf

▶ FEATURE

▶ Application

▶ INTRODUCTION
AKS392 triaxial accelerometer is a product independently developed and produced by Rion Technology,
which is specially used in the building monitoring industry. In order to improve the resolution of the
product, the product uses a smaller range, which can more accurately reflect the subtle changes of the
product. Digital interface output is adopted, RS232/485/TTL is optional, different address codes can be
set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point
measurement and data analysis.

Specifications

AKS392	PARAMETERS	UNIT
Range	±2	g
Bias calibration	<1	mg
Measure axis	X,Y,Z	axis
Power on/off repeatability	<2	mg(max)
Bias temperature coefficient	0.15	%/℃(typical)
Resolution/threshold (@ 1Hz)	< 1	mg(max)
Non-linearity	<0.5	% FS(max)
Bandwidth (3DB)	80	Hz
Cross axis sensitivity	1	%
Transverse vibration sensitivity ratio	1	%
Density of noise	21	μg/√Hz
Resonance frequency	2.4	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface	RS232/RS485/TTL
Protocol	RION 68 protocol and MODBUS RTU protocol
Input(VDD_VSS)	9~36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size	Product size: 34.3*34.3*38.5mm Magnetic adsorption base size: 34.23*34.23*6mm L-shaped adapter plate size: 36*44*15mm

▶ VIBRATION PARAMETER INDEX

The product's vibration frequency, speed, and displacement are derived from data analysis, where frequency is the main frequency of the current object vibration frequency, speed is the maximum vibration speed, and displacement is the maximum amplitude value of the object vibration. Because of the irregularity of the object vibration, the data is only used reference.
