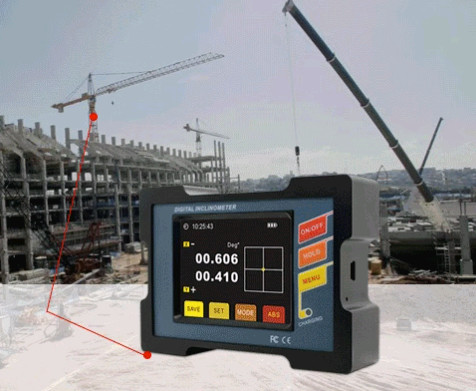

DMI810-46-BT Wireless Bluetooth Single axis Digital Inclinometer Three Mode Angle Monitoring Device
▶ FEATURES
★ Best accuracy:<0.03°
★ Repeatability:0.03°
★ Angle resolution:0.001°
★ Maximum measure range:±46°
★ User can set the alarm value by himself
★ Data store function
★ Absolute/Relative measurement can switch
★ Both sides and bottom can measure
★ Double benchmark strong magnet installation
★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function
★ Automatic angle cross compensation
★ User can calibrate ZERO by himself
★ Built-in rechargable industry batteries
★ Night vision fours colors screen
★ IP54 protection class
★ °/mm/m Dual units switch function
★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
★ Pan tilt angle monitoring
★ Turntable monitoring
★ production fixtures
★ medical instruments
DMI810-46-BT development professional for all kinds of industrial equipment platform Angle through bluetooth reading measurement data of a digital tilt, the product core is the micro mechanical control principle, dual-core measurement unit, temperature compensation in the process of measurement, play the absolute operation advantage of micro mechanical and electronic principle, ensure the long-term stability and repeatability. Single axis measurement, measurement range ± 46° measurement, resolution 0.001°, the highest accuracy <0.03° full range, fast response speed, stable data, the product special design side and the following are strong magnetic adsorption installation, both sides of the benchmark can be normal measurement use, bring very convenient to customers, this product has data storage function, three kinds of measurement mode optional (Angle, minute, mm / m), strong scalability, convenient practical application, industrial reliability, and has a strong cost-effective advantage, has a very high competitive advantage in the international market!
 DMI810-46-BT | Parameters | Unit |
| Measure axis | single axis | axis |
| Angle measure range | ±46 | ° |
| Angle measure accuracy ( full measure range ) | <0.03 | ° |
| Angle measure resolution | 0.001 | ° |
| mm/m measure range | 1035 | mm/m |
| mm/m measure accuracy | 0.5 | mm/m |
| mm/m measure resolution | 0.02 | mm/m |
| Repeatability | 0.03 | ° |
| Measure mode | Angle,Degree/Minute/Second,Mm/m Three modes can be set | |
Working Temperature | -10℃～ +70℃ | |
Working Humidity | 85%RH | |
| Power supply | 3.7V Charging Lithium Battery | |
Ideal Charging Time | 5 hours | |
Battery Continuous Working Tim | 11小时( Non bluetooth ) | |
| Data output signal | USB2.0 (Virtual serial device) and Bluetooth read transmission | |
| Match with PC software | VC programm software | |
| Connect plug in | Standard Usb Connector, Rechargeable | |
Shock Resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) | |
Shock Impact | 10grms,10～100Hz | |
Waterproof Grade | IP54 | |
| Material | Aluminum Alloy Anodizing | |
| LCD screen | 64 True Colors Night Vision Display Screen | |
| LCD Visible Area Size | L57.6*W43.2mm | |
| Bluetooth size | L24.57×W11×H67.07mm | |
| Bluetooth weight | ≤40g | |
| Digital inclinometer size | L109×W77×H27mm | |
| Digital inclinometer weight | ≤350g | |
