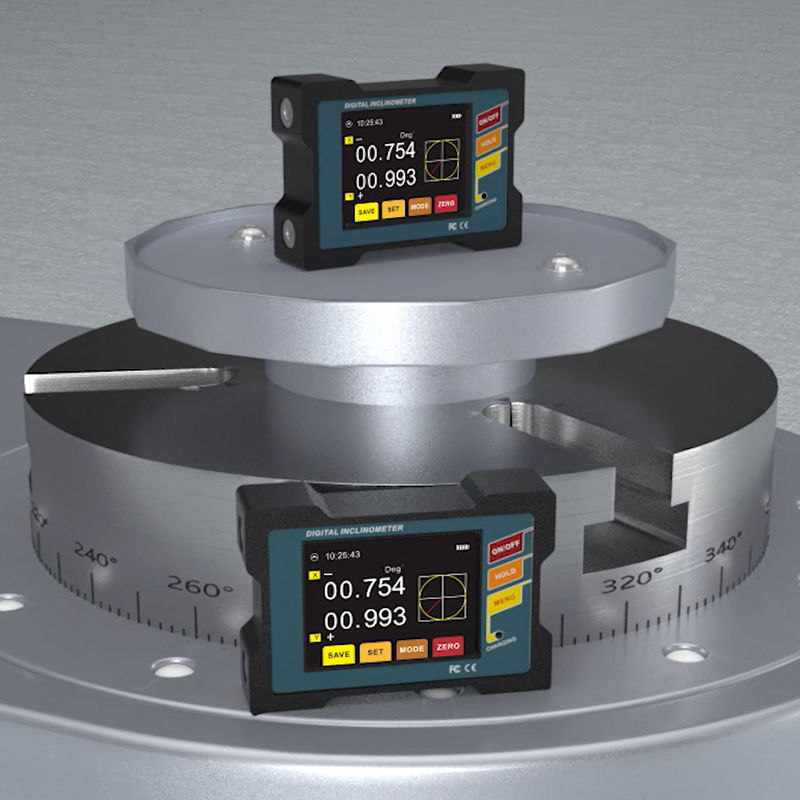

DMI820 Digital Inclinometer For Building Construction & Automobile Four-Wheel Testing

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: DMI820

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $438.00/Units

Packaging Details: 1pcs in wooden box with safe sponge inside

Delivery Time: 5-10 work days

Payment Terms: L/C, Paypal

Supply Ability: 30000 Unit/Units per Month

Get Best Price
Contact Now
Specifications
Highlight:

Automobile Four-wheel Testing Digital Inclinometer

,

Digital Inclinometer for Building

,

MEMS 2 Axis Digital Inclinometer

Theory:
MEMS
Usage:
Magnetic Sensor
Output:
Digital Sensor
Measuring Range:
+/-15deg Or +/-30deg Optional
Accuracy:
0.005deg
User Can Calibrate By Himself:
Yes
Working Temperature:
-20 ~ +65C
Port:
Shenzhen
Theory:
MEMS
Usage:
Magnetic Sensor
Output:
Digital Sensor
Measuring Range:
+/-15deg Or +/-30deg Optional
Accuracy:
0.005deg
User Can Calibrate By Himself:
Yes
Working Temperature:
-20 ~ +65C
Port:
Shenzhen
Description
DMI820 Digital Inclinometer For Building Construction & Automobile Four-Wheel Testing

DMI820 Digital Inclinometer for Building Construction & Automobile Four-wheel Testing



Download the data sheet of DMI810/DMI820 digital inclinometer

DMI810 DMI820 DIGITAL DISPLAY INCLINOMETER DIGITAL...



FEATURES

★ Best accuracy:<0.005°

★ Repeatability:0.003°

★ Angle resolution:0.001°

★ Maximum measure range:±30°

★ User can set the alarm value by himself

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Double benchmark strong magnet installation

★ Working Temperature : -10°~ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate ZERO by himself

★ Built-in rechargable industry batteries

★ Night vision fours colors screen

★ IP54 protection class

★ °/mm/m Dual units switch function

★ Filter frequency optional

★ Three kinds of measurement mode selectable (radian, angle, mm)



APPLICATION

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform





GENERAL DESCRIPTION



DMI810/DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !







TECHNICAL DAT

PARAMETER DMI810 DMI820 UNIT
Angle Measure range ±15 ° ±30 ° ±15 ° ±30 ° °
MM measure range 267 577 267 577 mm/m
Meausre axis Single axis Single axis Single axis Single axis
Highest measurement accuracy (full range) <0.005 <0.01 <0.005 <0.01 °(RMS)
Angle Measure resolution 0.001 0.001 0.001 0.001 °
Repeatability 0.003 0.003 0.003 0.003 °
MM measure accuracy 0.1 0.2 0.1 0.2 mm/m
Three measurement mode selectable

①Angle ②degree, minute, second ③mm/m

three modes can be set

/
MM measure res 0.02 mm/m
LCD 64 true colors night vision display screen /
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃
Working humidity 85 %RH
Power supply 3.7V Charging Lithium battery V
Ideal charging time 5 h
Battery sustainable charging times 11 h
Equipped with PC software VC software /
Data output signal USB1.1 (Virtual Serial Device) /
Connect plug in Standard USB connector, rechargeable /
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid) g
Shock impact 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy Anodizing /
Size L107*W75*H27.1 mm
Weight 300 g



DMI820 Digital Inclinometer For Building Construction & Automobile Four-Wheel Testing 0



DMI820 Digital Inclinometer For Building Construction & Automobile Four-Wheel Testing 1

DMI820 Digital Inclinometer For Building Construction & Automobile Four-Wheel Testing 2





★ Turntable testing ★ Pan unit angle detection ★ Production jig



PRODUCT DIMENSION
