DCM301B Three Axis Inclinometer Electronic Compass DC5V Calibrated Heading Sensor

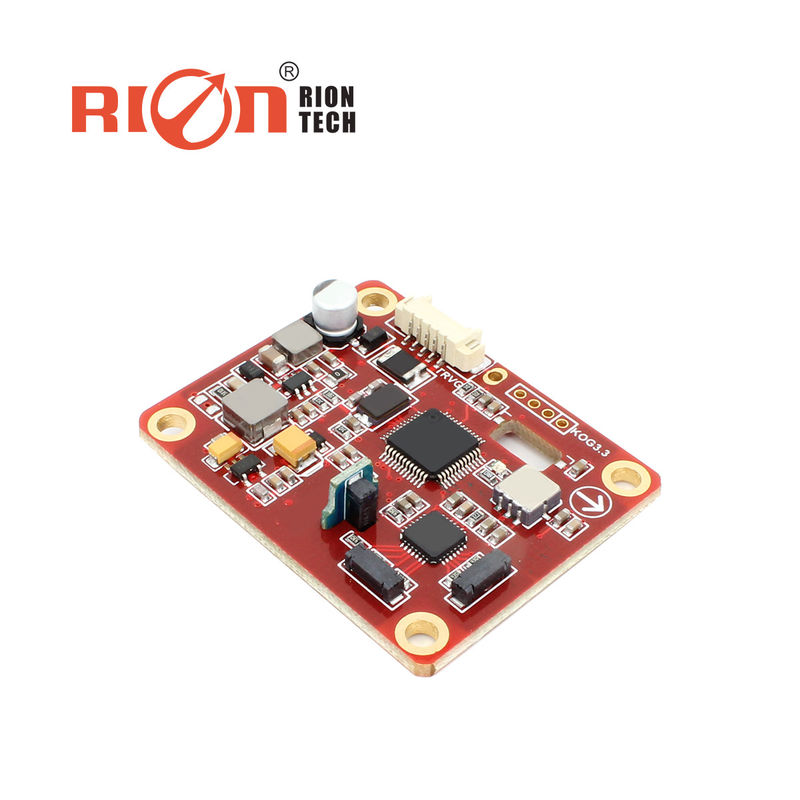

Name: DCM301B Three Axis Inclinometer Electronic Compass DC5V Calibrated Heading Sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DCM301B-232
Price: 230.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: DCM301B-232

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $230.00/Pieces

Packaging Details: 1pcs/polybag, 20pcs/inner box with sponge , 200pcs/ctn

Delivery Time: 5 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 30000 Piece/Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  three axis electronic compass, dc5v electronic compass


Heading Accuracy::	0.5-0.8	Tilt Angle Measuring Range:	+/-90deg
Tilt Angle Resolution:	0.1	Tilt Angle Accuracy:	0.3
Wide Temperatur:	-40~ +85C	Product Size:	L43W35H8mm
Power Supply:	DC5V	Ouput Interface:	Standard RS232/RS485/TTL Optional
Calibration:	2D

Heading Accuracy::	0.5-0.8
Tilt Angle Measuring Range:	+/-90deg
Tilt Angle Resolution:	0.1
Tilt Angle Accuracy:	0.3
Wide Temperatur:	-40~ +85C
Product Size:	L43W35H8mm
Power Supply:	DC5V
Ouput Interface:	Standard RS232/RS485/TTL Optional
Calibration:	2D

Description

DCM301B Three Axis Inclinometer Electronic Compass DC5V Calibrated Heading Sensor

DCM301B Three axis Inclinometer 3D Compass Sensor DC5V Calibrated Heading Sensor

▶ FEATURE

★ Heading accuracy: 0.5°～0.8°

★ Tilt angle measuring range :±85°

★ Tilt angle resolution: 0.1°

★ Tilt angle accuracy: 0.1°

★ Wide temperature : -40℃～+85℃

★ Size: L60×W59×H33mm

★ With hard magnetic, soft magnetic and angle compensation

★ DC 5V power supply

★ Standard RS232/RS485/TTL output interface

★ IP 67 protection class

▶ APPLICATION

★ Satellite antenna search satellite

★ Marine navigation surveying and mapping

★ GPS integrated navigation

★ Antenna servo control

★ Infrared imager

★ Laser range finder

★ Map for plotter

★ ROV underwater robot navigation

★ Oceanography measurement instruments

★ Special occasion robot

▶ SPECIFICATION

DCM301B / DCM302B		PARAMETER
Compass heading	The best heading accuracy	0.5°
Compass heading	Resolution	0.1°
Compass tilt parameter	Pitch accuracy	0.1°<15°(Measure range)
		0.2°<30°(Measure range)
		0.3°<60°(Measure range)
		0.3°<85°(Measure range)
	Pitch tilt range	±85°
	Roll accuracy	0.1°<15°(Measure range)
		0.2°<30°(Measure range)
		0.3°<60°(Measure range)
		0.3°<85°(Measure range)
	Roll tilt range	±85°
	Resolution	0.1°
	The best tilt compensation range	<40°
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Magnetic field interference calibration method	Plane rotation in 1circle(2D Calibration)
Physical features	Dimension	L60×W59×H29mm
	Weight	PCB:20g,with shell:100g
	RS-232/RS485/TTL interface connector	5PINconnector
Interface features	Start delay	<50MS
	Maximum output rate	20Hz/s
	Communication rate	2400 to 19200baud
	Output format	Binary high performance protocol
Power	Power supply	(Default)DC+5V
	Power supply	(Customized)DC9～36V
	Current(Maximum)	40mA
	Ideal mode	30mA
	Sleep Mode	TBD
Enviroment	Operating range	-40℃～+85℃
	Storage temperature	-40℃～+85℃
	Resistance shock performance	2500g
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥40000 hours/times
Insulation	≥100M
Anti-shock	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
