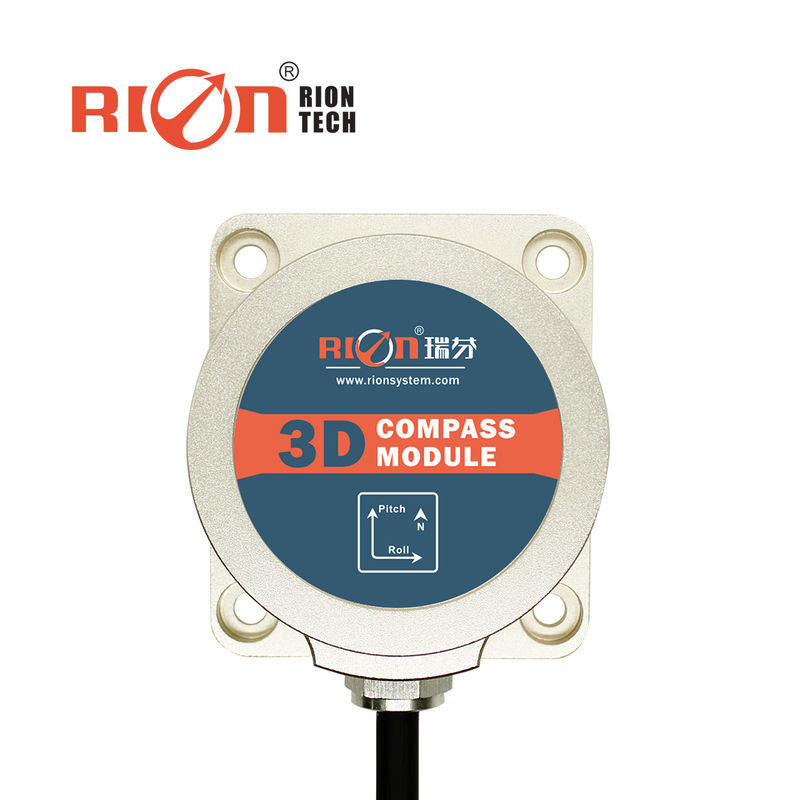

HCM380B ROV 3D Electronic Compass Underwater Robot Roll Pitch Heading Sensor

Name: HCM380B ROV 3D Electronic Compass Underwater Robot Roll Pitch Heading Sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HCM380B /HCM385B-232
Price: 438.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, FCC,ROHS , ISO

Model Number: HCM380B /HCM385B-232

Payment & Shipping Terms

Minimum Order Quantity: 100 Units

Price: $438.00/Units

Packaging Details: 1pcs compass sensor in each box with safe sponge inside , 100pcs/ctn

Delivery Time: 5-10 work days

Payment Terms: L/C, T/T

Supply Ability: 100,PCS,A WEEK

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              ROV 3D Electronic Compass, 3D Electronic Compass High Precision Sensor, DC5V 3D Compass


Brand:	3D Compass Sensor	Voltage - Supply:	DC5V
Output Type:	RS232, RS485, TTL Optional	Roll Measure Range:	±180°
Pitch Measure Range:	±85°	Digital Compass MTBF:	≥40000 Hours/time
Working Temperature:	-40 ℃ ~ + 85 ℃	Production:	IP67

Brand:	3D Compass Sensor
Voltage - Supply:	DC5V
Output Type:	RS232, RS485, TTL Optional
Roll Measure Range:	±180°
Pitch Measure Range:	±85°
Digital Compass MTBF:	≥40000 Hours/time
Working Temperature:	-40 ℃ ~ + 85 ℃
Production:	IP67

Description

HCM380B ROV 3D Electronic Compass Underwater Robot Roll Pitch Heading Sensor

HCM380B ROV 3D Electronic Compass Underwater Robot Roll Pitch Heading Sensor

PRODUCT DESCRIPTION

HCM380B / HCM385B is a high-precision 3D compass sensor, and the protection reaches IP67 level. Using advanced hard and soft iron calibration algorithms, make any tool surface with a roll angle of 360 ° can still provide high-precision heading information. With the characteristics of small size and low power consumption, it is more suitable for today's miniaturized sensitive measurement systems. The product can be ordered with a complete sealed casing or a circuit board.

HCM380B / HCM385B integrates three-axis magnetic flux gate technology. It uses a central processing unit to calculate heading data in real time, and uses a three-axis accelerometer to compensate for a wide range of tilt angles. HCM380B / HCM385B has been widely used in many fields such as stable antennas, vehicles, and system integration.

KEY FEATURES

▶ KEY FEATURES

★ Tilt accuracy: <0.1 °

★ Standard RS232 / RS485 / TTL output interface

★ Azimuth accuracy: 0.5 °

★ Tilt resolution: Reference performance index

★ Wide temperature range: -40 ℃ ～ + 85 ℃

★ Rolling angle measurement range: ± 180 °

★ With hard magnetic, soft magnetic and tilt compensation

▶ APPLICATION

★ Satellite Antenna Searching

★ Navigation Navigation Mapping

★ Infrared imager

★ GPS Integrated Navigation

★ Antenna Servo Control

★ Oceanographic Tester

★ Laser rangefinder

★ Map complementer

★ ROV underwater robot navigation

★ Special occasion robot

TECHNICAL DATA

HCM380B/HCM385B Parameters
Compass heading	Best heading accuracy	0.5°
Compass heading	Resolution	0.1°
Compass tilt angle	Pitch accuracy	0.1°<15°(Measure range )
		0.1°<30°(Measure range)
		0.1°<60°(Measure range)
		0.2°<90°(Measure range)
	Pitch measure range	±85°
	Roll accuracy	0.1°<15°(Measure range)
		0.1°<30°(Measure range)
		0.1°<60°(Measure range)
		0.2°<180°(Measure range)
	Roll measure range	±180°
	Resolution	0.1°
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Soft Magnetic field interference calibration method	Horizontal rotation 360 °; vertical rotation (optional)
physical characteristics	Dimension	L49×W57×H25.5mm
	Weight	210g(without cable)
	RS232/RS485/TTL interface	Direct leading cable
Interface characteristics	Start delay	<50ms
	Max output	20Hz/s
	Communication rate	2400 ~115200baud
	Output format	Binary high performance protocol
Power supply	Power voltage	(default)DC+5V
	Current (max)	30mA
	Idea mode	26mA
	Sleep mode	TBD
Environment	Working temperature	-40℃～+85℃
	Storage temperature	-40℃～+85℃
	Anti vibration performance	100g
	Protective performance	IP67
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥40000 hours/time
Insulation resistance	≥100 Mega ohm
Impact resistance	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti vibration	10grms,10～1000Hz

PRODUCT SIZE

▶ PCBA BOARD SIZE

▶ SHELL SIZE
