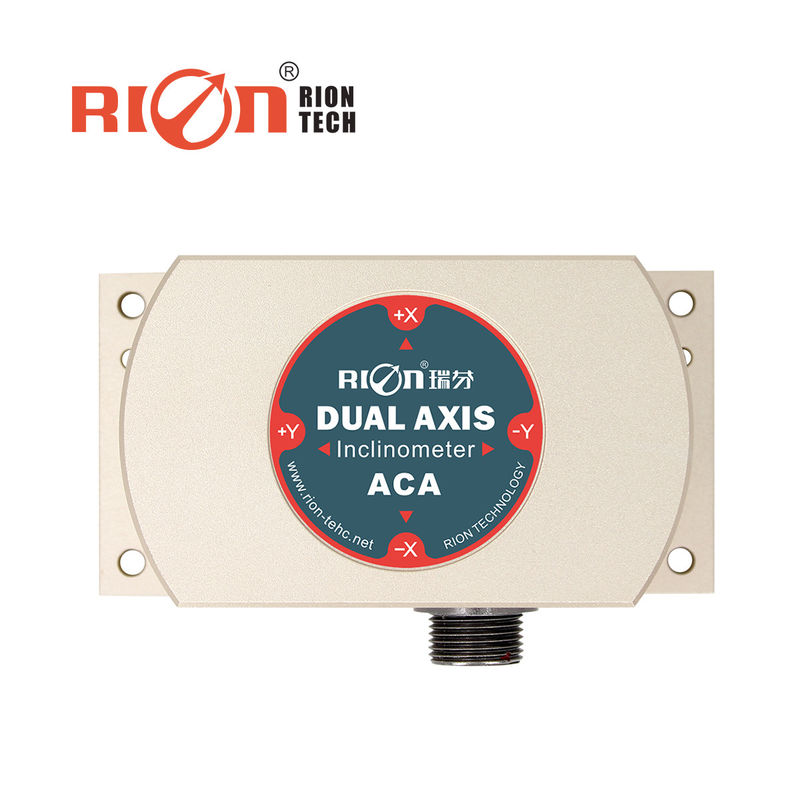

ACA816T Tilt Sensor Inclinometer HCA526T High Accuracy CANopen Angle Meter
▶ GENERAL DESCRIPTION
ACA816T / ACA826T is a full-temperature compensated high-precision single / dual-axis MODBUS output inclinometer professionally developed by RION Technology for high-precision level measurement and leveling. High-resolution 0.0005 ° , it can completely replace the traditional inclinometer. Digital signal transmission, supporting professional computer software, accurate data measurement and recording, output interface RS232, RS485, RS422, TTL optional. The characteristics of non-contact installation make the ACA816T / ACA826T have super strong system integration, easy installation, just fix the sensor on the surface of the measured object with screws, the horizontal angle of the object can be automatically calculated, simple to use. It has strong resistance to external electromagnetic interference and strong ability to withstand shock and vibration. It has a great competitive advantage among domestic counterparts.
▶ FEATURES
★ Single /Dual-Axis Inclinometer
★ Measure Range :±1~±30° Optional
★ Size:L92×W48×H36mm
★ Wide Voltage Input: 9～36V
★ Wide Temperature Working: -40~+85℃
★ IP67 Protection Grade
★ Resolution: 0.0005°
★ Water-Proof aviation connector
★ Highly Anti-Vibration Performance >2000g
★ Output Mode RS232/RS485/RS422/TTL are optional
▶ APPLICATION
★Satellite positioning Search
★Rail-mobile monitoring
★engineering mechanical measurement of dip angle
★oil-well drilling equipment
★Radar detection of vehicle platform
★Underground drill posture navigation
★Based on the angle direction measurement
★Satellite communications vehicle posture detection
★Shield pipe jacking application
★Ship’s navigation posture measurement
★Geological equipment inclined monitoring
▶ TECHNICAL DATA
| ACA816T/826T | Conditions | Parameters | Unit | ||||
| Measure range | ±03 | ±10 | ±15 | ±30 | ° | ||
| Measure axis | X/XY | X/XY | X/XY | X/XY | axis | ||
| Resolution | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.002 | 0.003 | 0.005 | 0.01 | ° |
| RMSE | Room temp. | 0.0008 | 0.0008 | 0.001 | 0.001 | ° | |
| Long term stability | 0.01 | 0.01 | 0.02 | 0.02 | |||
| Zero temp coefficient | -40~85℃ | 0.0005 | 0.0005 | 0.0005 | 0.0005 | °/℃ | |
| Sensitivity temp coefficient | -40~85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20 | 20 | 20 | 20 | Hz | ||
| Output rate | 5Hz / 15Hz / 35Hz / 50Hz Can be setting | ||||||
| Ouput signal | RS232/RS485/RS422/TTL | ||||||
| EMC | According to EN61000 and GBT17626 | ||||||
| MTBF | ≥98000hours/times | ||||||
| Insulation Resistance | ≥100M | ||||||
| Shockproof | 100g@11ms,3 axis direction (half sinusoid) | ||||||
| Anti-vibration | 10grms,10～1000Hz | ||||||
| Protection grade | IP67 | ||||||
| Cables |
Standard 2M length,wearproof,wide temperature, Shielded cables 5P*0.5mm2 air-plug connector |
||||||
| Weight | ≤235g( exclude cable) | ||||||
