SDC620B Endurance 3D Digital Compass Sensor for GPS Integrated Navigation

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, FCC,ROHS , ISO

Model Number: SDC620B-232

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $580.00/Pieces

Packaging Details: 1pcs / inner box with sponge , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

TTL Digital Compass Sensor

,

3D Digital Compass Sensor

,

360 Degree 3D Digital Compass

Resolution:
0.1°
Startup Delay:
< 50 Ms
Maximum Sample Rate:
20Hz/s
Communication Rate:
9600 Baud
Output Format:
RION 68 Protocol
Operating Current:
50mA (typical)
Operating Temperature:
-20℃~+70℃
Storage Temperature:
-20℃~+70℃
Resolution:
0.1°
Startup Delay:
< 50 Ms
Maximum Sample Rate:
20Hz/s
Communication Rate:
9600 Baud
Output Format:
RION 68 Protocol
Operating Current:
50mA (typical)
Operating Temperature:
-20℃~+70℃
Storage Temperature:
-20℃~+70℃
Description

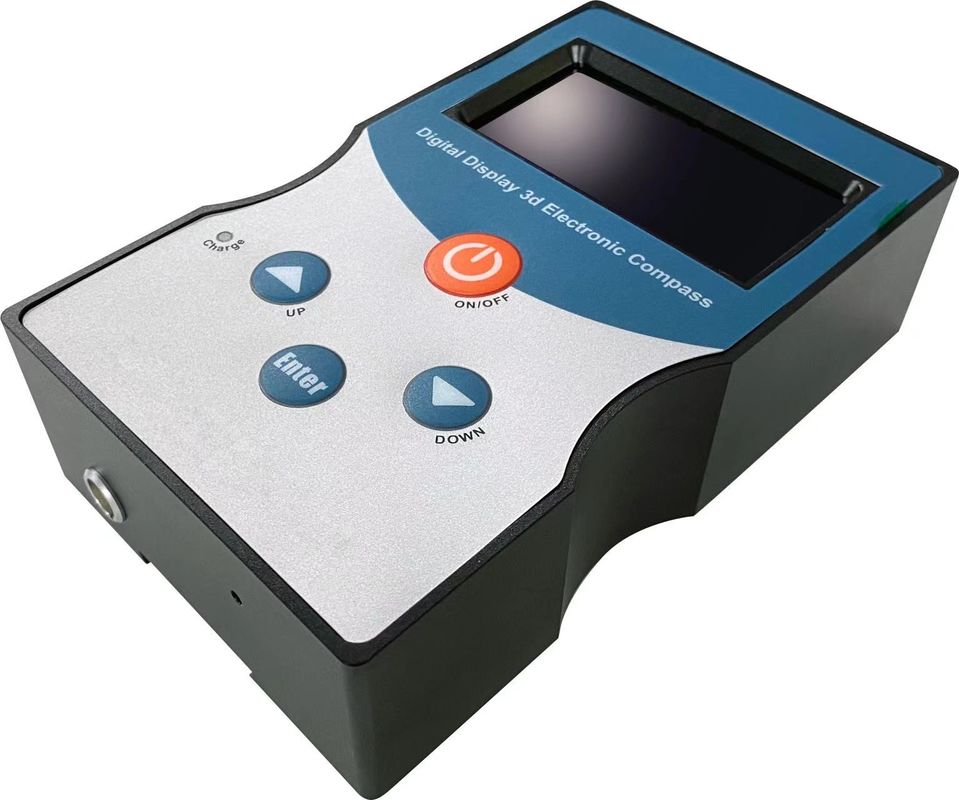

SDC620B Endurance 3D Digital Compass Sensor for GPS Integrated Navigation

SDC620B Endurance 3D Digital Compass Sensor for GPS Integrated Navigation





FEATURES

★ Heading angle accuracy: 0.3° ~ 0.5°

★ Angle compensation range: ± 85°

★ With soft and hard magnetic field calibration

★ Heading angle measurement range: 360°

★ 60 hours of continuous working endurance

★ Reset function

★ IP54 protection grade

★ Integrated design of handheld and dovetail installation



APPLICATION

★ Navigation mapping

★ GPS integrated navigation

★ Antenna servo control

★ Pile driver angle real-time monitoring

★ Map Redrawing Tool

★ Oceanographic survey instrument



ORDERING INFORMATION

SDC620B-N-XXX Ordering description
SDC620B-N-232 RS232 serial port data output function (standard 1m wiring)
SDC620B-N-TTL TTL serial port data output function (standard 1m wiring)
SDC620B-N-485 RS485 serial port data output function (standard 1m wiring)


ELECTRICAL CHARACTERISTICS

SDC620B-N   Parameter
Compass heading parameter Course angle accuracy 0.3°~0.5°
Measuring range 360°
Resolution 0.1°
Repeatability 0.1°
Roll Angle 0.1 ° < 60 ° (measuring range)
0.2 ° < 180 ° (measuring range)
Roll angle measurement range ±180°
Resolution 0.1°
Pitch Angle 0.1 ° < 60 ° (measuring range)
0.2 ° < 85 ° (measuring range)
Pitch Angle Measurement Range ±85°
Calibration Hard iron calibration Have
Soft iron calibration Have
Interface characteristics Startup delay < 50 ms
Maximum sample rate 20Hz/s
Communication rate 9600 baud
Output format RION 68 protocol
Power source Support voltage Internal 3.7 V rechargeable lithium battery
Operating current 50mA (typical)
Charging current

Fast charging mode 1.75 A,

fully charged in about 4 hours

Normal mode 0.5A,

full in about 12 hours

Environment Operating temperature -20℃~+70℃
Storage temperature -20℃~+70℃
Vibration resistance 3000g
Physical properties Connector 4 PIN Remo air plug
Cable line Standard 1m cable
Size 137.3×83×37mm
Weight ≤ 520g (excluding cable)
