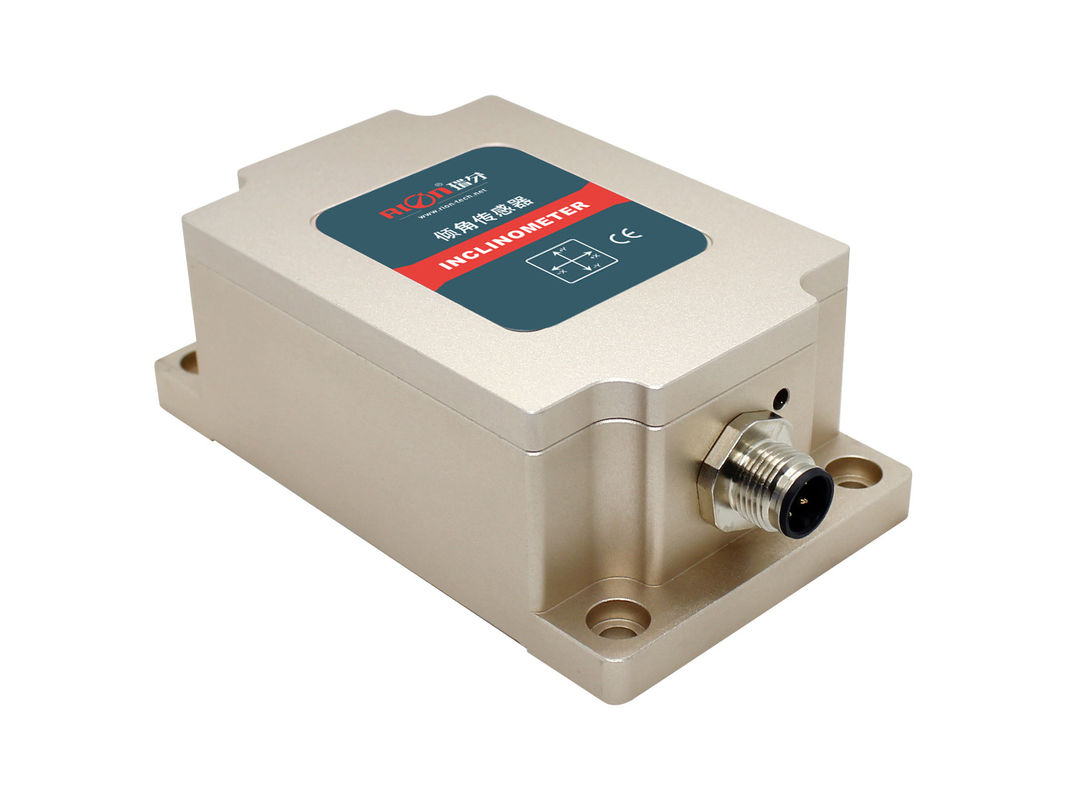

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE

Name: ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: ACA2200T
Price: 705 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: ACA2200T

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$705

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

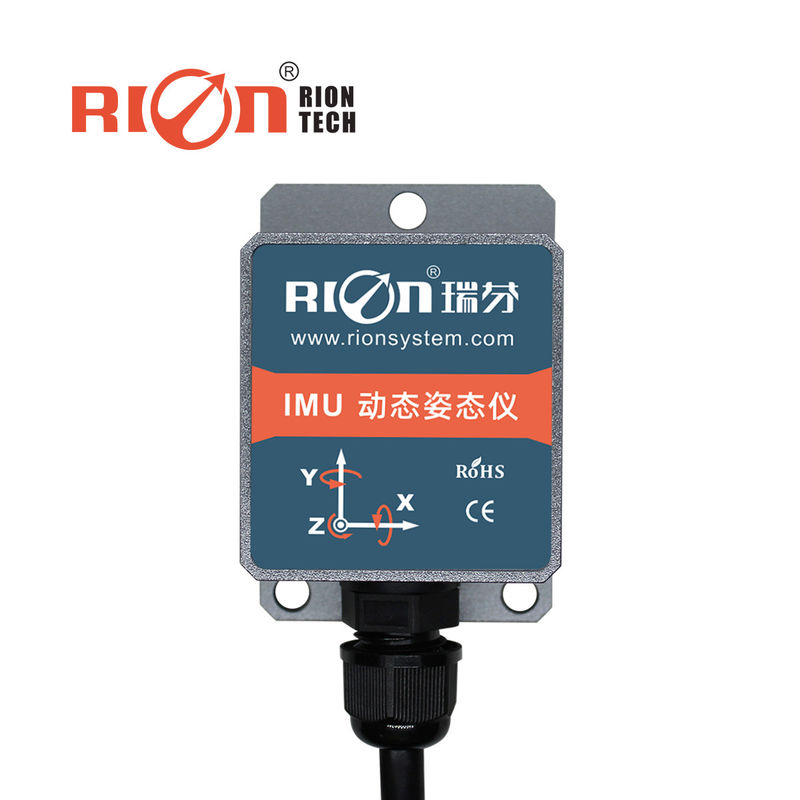

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      9 Axis Output Triaxial Gyro Sensor, 36v Triaxial Accelerometer, Triaxial Attitude Sensor


Usage:	Agricultural Vehicle Auto Driving	Bandwidth:	>100Hz
Resolution:	0.01°	Gyro Range:	250°/s
Accelerometer Range:	±4g	Connector:	RS232/RS485 , CAN2.0 Optional

Usage:	Agricultural Vehicle Auto Driving
Bandwidth:	>100Hz
Resolution:	0.01°
Gyro Range:	250°/s
Accelerometer Range:	±4g
Connector:	RS232/RS485 , CAN2.0 Optional

Description

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE

▶ GENERAL DESCRIPTION

The ACA2200T is an analog balanced servo inclinometer developed by RION Technology, built around a high-precision mechanical-electrical system comprising five key components: a non-contact displacement sensor, torque motor, error amplifier, feedback loop, and cantilever mass.

Compared to conventional electrolytic or capacitive inclinometers, the ACA2200T delivers superior performance in non-linearity, repeatability, hysteresis, temperature drift, shock resistance, vibration tolerance, and operating temperature range.

It integrates a 32-bit high-performance ARM processor, offering a resolution of 0.0001°, accuracy of 0.005°, and temperature drift as low as 0.0002°/°C. The response frequency reaches 50 Hz with a baud rate of 115200, making it a powerful solution for demanding applications.

The sensor features a non-contact installation method—simply mount it to the surface of the object, and it will automatically compute inclination and attitude. There's no need for complex alignment or dual-surface mounting.

With strong resistance to EMI and high tolerance to shock and vibration, ACA2200T holds a distinct competitive edge in the domestic market, and is widely used in industrial and military-grade applications where accuracy and reliability are critical.

▶ FEATURE

★ Dual axis inclination measurement

★ Range ± 1 ～ ± 15° optional

★ Response frequency: 50Hz

★ DC 9~36V wide voltage input

★ Wide temperature operation -40~+ 85 ℃

★ Resolution 0.0001 °

★ IP67 protection level

★ Zero temperature drift ± 0.0002°/℃

★ Waterproof aviation plug

★ Size: L110 × W65 × H40mm

★ Output mode RS232, RS485, TTL optional

▶APPLICATION

★ Equipment vehicle leveling

★ Bridge and Dam monitoring

★ Precision instrument level control

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig

★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle

★ Tilt monitoring of geological equipment

★ Measurement of elevation angle of directional satellite communication antenna

▶PRODUCT SPECIFICATIONS

ACA2200T	Conditions	Parameters			Unit
Measure range		±05	±10	±15	°
Measure axis		X Y	X Y	X Y	axis
Resolution		0.0001	0.0001	0.0001	°
Measure accuracy	@25℃	0.003	0.005	0.006	°
Long term stability		0.002	0.003	0.005	°
Zero Temp. coefficient	-40～85℃	±0.0002	±0.0002	±0.0002	°/℃
Sensitivity temp coefficient	-40～85℃	≤50	≤50	≤50	ppm/℃
Power on time		0.5	0.5	0.5	S
Response frequency		20	20	20	HZ
Output rate	5Hz / 15Hz / 35Hz / 50Hz can be setting
Interface type	RS232 / RS485 / RS422 / TTL
EMC	According to EN61000 and GBT17626
MTBF	≥98000 hours / times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms / 3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms / 10~1000Hz
Protection grade	IP67
Cables	Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector
Weight	385g(without cable)

▶ ELECTRONIC CHARACTERISTICS

PARAMETERS	CONDITIONS	MIN	STANDARD	MAX	UNIT
Power supply	Standard	9	12,24	36	V
Power supply	customized		Other voltage		V
Working current	No load		50		mA
Working temperature		-40		+85	℃
Store temperature		-40		+85	℃

▶ MEASURING DIRECTIONS

The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically (mounted vertically selection must confirm before production ), for installation please refer to the following scheme.

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE 2

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE 3

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE 4
