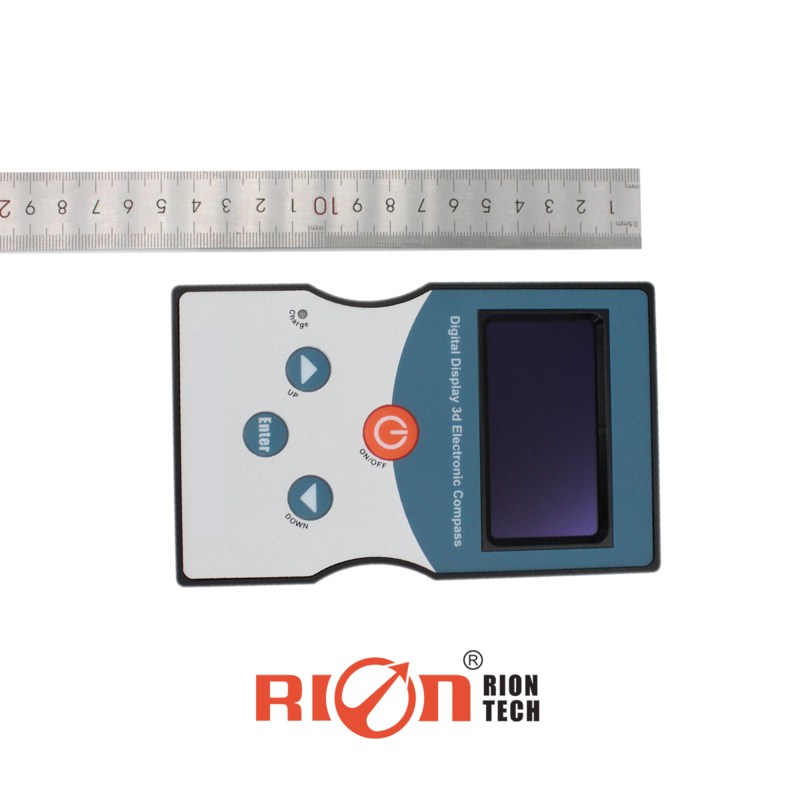

SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°～0.5° Course Angle Accuracy and 360° Measuring Range

Name: SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°～0.5° Course Angle Accuracy and 360° Measuring Range
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: SDC620B
Price: 580.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Model Number: SDC620B

Document: SDC620B-N HIGH-PRECISION DI...SS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $580.00/Pieces

Packaging Details: 1pcs / inner box with sponge , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              3.7V High Precision Inclinometer, Lithium Battery High Precision Inclinometer, 3D Digital Display Compass Sensor


Course Angle Accuracy:	0.3°～0.5°	Measuring Range:	360°
Operating Current:	50mA (typical)	Operating Temperature:	-20℃～+70℃
Vibration Resistance:	3000g	Tilt Angle Accuracy:	0.1deg
Connector:	4 PIN Remo Air Plug	Size:	137.3×83×37mm

Course Angle Accuracy:	0.3°～0.5°
Measuring Range:	360°
Operating Current:	50mA (typical)
Operating Temperature:	-20℃～+70℃
Vibration Resistance:	3000g
Tilt Angle Accuracy:	0.1deg
Connector:	4 PIN Remo Air Plug
Size:	137.3×83×37mm

Description

SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°～0.5° Course Angle Accuracy and 360° Measuring Range

SDC620B 3.7V Lithium Battery High Precision Inclinometer Antenna Servo Control

Key Features

Heading angle accuracy: 0.3° ~ 0.5°
Angle compensation range: ± 85°
With soft and hard magnetic field calibration
Heading angle measurement range: 360°
60 hours of continuous working endurance
Reset function
IP54 protection grade
Integrated design of handheld and dovetail installation

Applications

Navigation mapping
GPS integrated navigation
Antenna servo control
Pile driver angle real-time monitoring
Map redrawing tool
Oceanographic survey instrument

Electrical Characteristics

SDC620B-N Parameters
Compass heading parameter
Course angle accuracy	0.3°～0.5°
Measuring range	360°
Resolution	0.1°
Repeatability	0.1°
Roll Angle
0.1° < 60° (measuring range)	0.2° < 180° (measuring range)
Roll angle measurement range	±180°
Resolution	0.1°
Pitch Angle
0.1° < 60° (measuring range)	0.2° < 85° (measuring range)
Pitch Angle Measurement Range	±85°
Calibration
Hard iron calibration	Have
Soft iron calibration	Have
Interface characteristics
Startup delay	< 50 ms
Maximum sample rate	20Hz/s
Communication rate	9600 baud
Output format	RION 68 protocol
Power source
Support voltage	Internal 3.7 V rechargeable lithium battery
Operating current	50mA (typical)
Charging current	Fast charging mode 1.75 A, fully charged in about 4 hours Normal mode 0.5A, full in about 12 hours
Environment
Operating temperature	-20℃～+70℃
Storage temperature	-20℃～+70℃
Vibration resistance	3000g
Physical properties
Connector	4 PIN Remo air plug
Cable line	Standard 1m cable
Size	137.3×83×37mm
Weight	≤ 520g (excluding cable)
