ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: ACA6-MB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $680.00/Pieces >=1 Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

250kbits/s Acceleration Meter Sensor

,

9v Acceleration Meter Sensor

,

AGM Using MEMS Gyroscope Sensor

Resolution:
0.001°
Measure Axis:
X/XY
Measure Accuracy:
0.003~0.3°(RMS)
Response Frequency:
20Hz
Communication Protocol:
RION 68 Protocol / MODBUS Protocol
Output Signal:
RS232 / RS485 / RS422 / TTL
Output Rate:
5Hz / 15Hz / 35Hz / 50Hz Can Be Setting
Power Supply:
9~36v
Resolution:
0.001°
Measure Axis:
X/XY
Measure Accuracy:
0.003~0.3°(RMS)
Response Frequency:
20Hz
Communication Protocol:
RION 68 Protocol / MODBUS Protocol
Output Signal:
RS232 / RS485 / RS422 / TTL
Output Rate:
5Hz / 15Hz / 35Hz / 50Hz Can Be Setting
Power Supply:
9~36v
Description

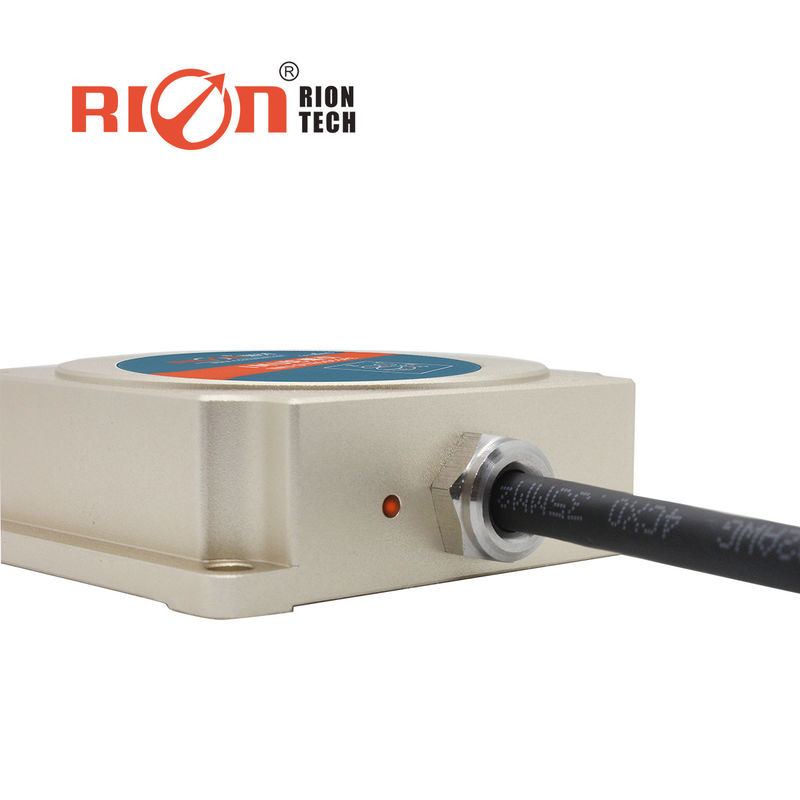

ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION

ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION


Optimized English Introduction:

ACA616T/ACA626T is a high-precision, full-temperature-compensated single/dual-axis tilt sensor with MODBUS digital output, developed by RION Technology based on an advanced precision tilt platform. Featuring excellent temperature stability, it operates reliably in wide temperature ranges from -40℃ to 85℃, making it ideal for long-term outdoor equipment monitoring and leveling.

Key Features:

  • Built-in high-precision 24-bit differential A/D converter;

  • Fifth-order filtering algorithm ensures precise measurement of tilt and pitch angles relative to horizontal;

  • Available with RS485, RS232, or TTL output interfaces for flexible system integration;

  • Non-contact installation design—simply mount the sensor on the object's surface with screws, no alignment required;

  • Strong resistance to electromagnetic interference, shock, and vibration;

  • Offers a significant competitive edge among domestic peers, tailored for high-end industrial applications.


 MAIN FEATURES

Single / dual axis inclination measurement             Wide voltage input: 9~36V

Measure Range :±90° optional                      IP67 protection grade

Wide temperature working: -40~+85℃                    Resolution: 0.001°

Highly anti-vibration performance >2000g            Water-proof air-plug

Output mode RS232/RS485/RS422/TTL are optional   Size: 92×48×36mm



 APPLICATION FIELD

Engineering vehicles automatic leveling                       Bridge & dam detection

Laser equipment position                                             Medical facilities angle control

Underground drill posture navigation                         Precise machine tool level control

Geological equipment inclined monitoring

Railway gauging rule , gauge equipment leveling


 SPECIFICATIONS

ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION 0ACA616T/ACA626T

Conditions

Parameters

Unit

Measure range



±10

±30

±60

±90

°

Measure axis



X/XY

X/XY

X/XY

X/XY

AXIS

Resolution



0.001

0.001

0.001

0.001

°

Measure accuracy

@25℃

0.003

0.01

0.02

0.03

°(RMS)

Zero Temp. coefficient

-40~+85℃

±0.0004

±0.0004

±0.0004

±0.0004

°/℃

Sensitivity temp-coeffi

-40~+85℃

≤50

≤50

≤50

≤100

ppm/℃

Power on time



0.5

0.5

0.5

0.5

S

Response frequency

20Hz

Output rate

5Hz / 15Hz / 35Hz / 50Hz can be setting

output signal

RS232 / RS485 / RS422 / TTL

Communication protocol

RION 68 protocol / MODBUS protocol

EMC

According to EN61000 and GBT17626

MTBF

98000 hours/times

Insulation Resistance

≥100MΩ

Shockproof

100g@11ms / 3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms / 10~1000Hz

Protection grade

IP67

Cables

Standard 2m long, wear-resistant, wide temperature, shielded cable 5p * 5.7 mm aviation connector

Weight

≤220g(without cable)


 WORKING PRINCIPLE

Adopt imported core control unit and apply the principle of capacitive micro-pendulum. Using the principle of earth's gravity, when the tilting unit tilts, the earth's gravity will produce a gravitational component on the corresponding pendulum, and the corresponding electric capacity will change. By amplifying and filtering the electric capacity, the inclination is obtained after conversion.

ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION 1

ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION 2

ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION 3
