DCM260B 3 Axis Electronic Compass Sensor , Heading Finder Azimuth Angle Sensor

Name: DCM260B 3 Axis Electronic Compass Sensor , Heading Finder Azimuth Angle Sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DCM260B-232
Price: 118 USD
Availability: InStock

Product Details

Place of Origin: SHENZHENG

Brand Name: RION

Certification: CE

Model Number: DCM260B-232

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $118/Pieces

Packaging Details: Sponge&Cartons

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          20Hz/s Electronic Compass Sensor, 3 Axis Electronic Compass Sensor, Azimuth Angle Heading Finder


Heading Accuracy:	0.8° Tilt<10°	Resolution:	0.1°
Pitch Accuracy:	0.1°<15°(measure Range)	Size:	L55×W37×H24mm
Output Rate:	20Hz/s	Baud Rate:	2400 To 19200baud
Output Format:	Binary High-performance Protocol

Heading Accuracy:	0.8° Tilt<10°
Resolution:	0.1°
Pitch Accuracy:	0.1°<15°(measure Range)
Size:	L55×W37×H24mm
Output Rate:	20Hz/s
Baud Rate:	2400 To 19200baud
Output Format:	Binary High-performance Protocol

Description

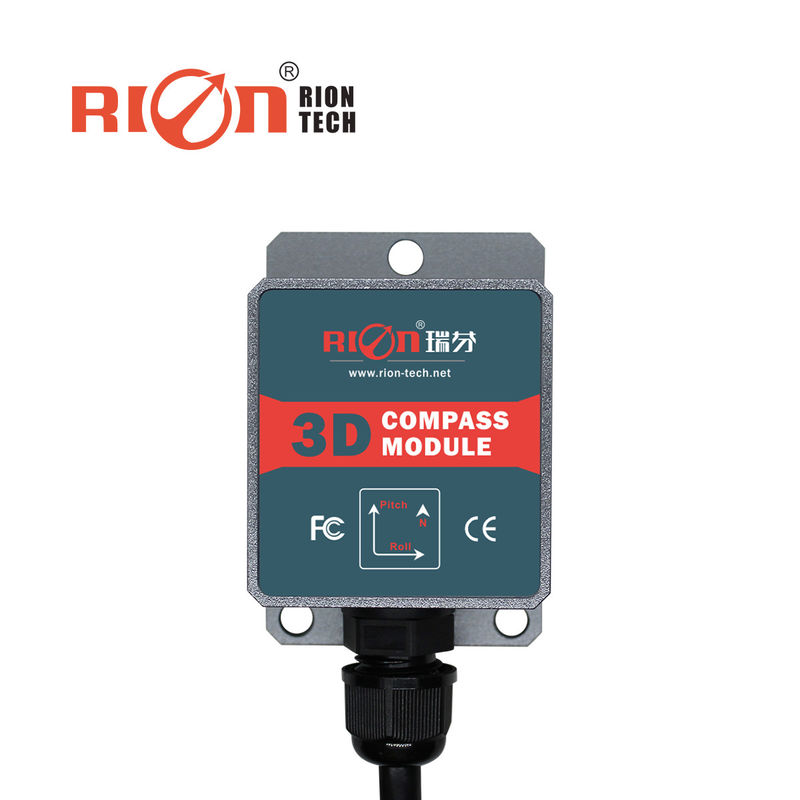

DCM260B 3 Axis Electronic Compass Sensor , Heading Finder Azimuth Angle Sensor

DCM260B 3 Axis Electronic Compass Sensor , Heading Finder Azimuth Angle Sensor

MAIN FEATURES

★ Azimuth accuracy: 0.8°

★ Inclination measurement range: ±85°

★ Inclination resolution: 0.1°

★ Inclination accuracy: 0.2°

★ Temperature range: -40℃～+85℃

★ Size: L55×W37×H24mm

★ With hard magnetic, soft magnetic and tilt compensation

★ Standard RS232/RS485/TTL output interface

★ DC 5V power supply

★ IP67 waterproof

▶ APPLICATION

★ Satellite antenna searching

★ Navigation surveying

★ GPS combined navigation

★ Antenna servo control

★ Infrared imager

★ Laser rangefinder

★ Mapping

★ ROV underwater robot navigation

★ Oceanographic survey instrument

★ Special occasion robots

DCM250B&260B Parameters
Compass heading parameters	Heading accuracy	0.8° tilt<10°
		1.5° tilt <30°
		2.0° tilt <40°
		3.0° tilt <60°
	Resolution	0.1°
Compass inclination parameter	Pitch accuracy	0.1°<15°(measure range)
		0.2°<30°(measure range)
		0.3°<60°(measure range)
	Pitch range	±85°
	Rolling accuracy	0.1°<15°(measure range)
		0.2°<30°(measure range)
		0.3°<60°(measure range)
	Roll range	±85°
	Resolution	0.1°
	Tilt compensation angle range	<40°
calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Magnetic field interference calibration method	Rotate horizontally one round (2D calibration)
Physical characteristics	Size	L55×W37×H24mm
Physical characteristics	RS232/RS485/TTL	4 cores 1-meter direct lead
Interface	Start delay	<50mS
	Output rate	20Hz/s
	Baud rate	2400 to 19200baud
	Output format	Binary high-performance protocol
Power supply	Supply voltage	(default) DC+5V
	Supply voltage	(optional) DC 9～36V
	Current (MAX)	45mA
	Ideal mode	35mA
	Sleep mode	TBD
Environment	Operating range	-40℃～+85℃
	Storage temperature	-40℃～+100℃
	Anti-vibration performance	2500g
EMC	According to EN61000 and GBT17626
MTBF	≥40000 hours/time
Insulation resistance	≥100MΩ
Impact resistance	100g@11ms, three direction (half sinusoid)
Anti-vibration	10grms,10～1000Hz
Weight	Single board: 20g shell package: 90g (Without cable)
