Usage: |
Heading Finding |
Theory: |
Mems Magnetic Technology |
Output: |
RS232/RS485/TTL |
Heading Accuracy: |
0.8deg |
Pitch Measuring Range: |
+/-90deg |
Roll Measure Range: |
+/-180deg |
Tilt Angle Accuracy: |
0.2deg |
Wide Temperature: |
-40C ~ + 85C |
Size: |
L55*W37*H24mm |
Power Supply: |
DC 5V/9~36V |
Protection Class: |
IP67 |
Usage: |
Heading Finding |
Theory: |
Mems Magnetic Technology |
Output: |
RS232/RS485/TTL |
Heading Accuracy: |
0.8deg |
Pitch Measuring Range: |
+/-90deg |
Roll Measure Range: |
+/-180deg |
Tilt Angle Accuracy: |
0.2deg |
Wide Temperature: |
-40C ~ + 85C |
Size: |
L55*W37*H24mm |
Power Supply: |
DC 5V/9~36V |
Protection Class: |
IP67 |

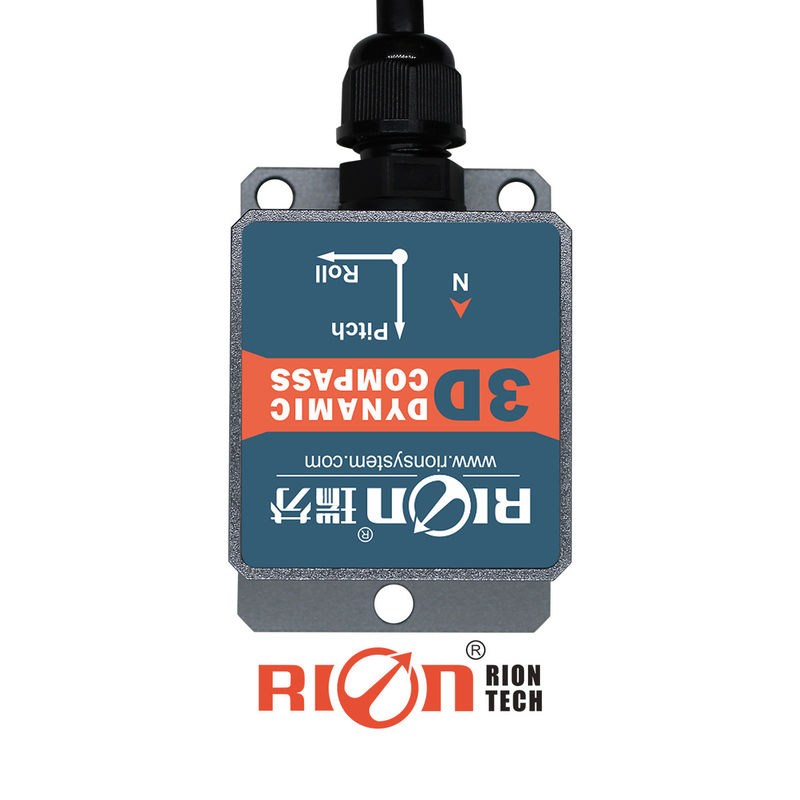

3 axis gyro compass sensor 0.1deg resolution heading angle sensor for heading angle finding
▶ MAIN FEATURES
★ Inclination angle measurement range: pitch ±85°, roll angle ±180°
★ With hard magnetic, soft magnetic and tilt angle compensation
★ Standard RS232/RS485/TTL output interface
★ Azimuth angle accuracy: 0.8°
★ Inclination resolution: 0.1°
★ Inclination accuracy: 0.2°
★ Wide temp. range: -40℃～+85℃
★ Dimesion: L55×W37×H24mm
★ DC 5V power supply
★ IP67 waterproof rating
▶ APPLICATION
★ Satellite ★ antenna search ★ Marine surveying and mapping ★ GPS integrated navigation
★ Antenna servo control ★ Unmanned aerial vehicle ★ Infrared imager
★ Laser rangefinder ★ ROV underwater robot navigation ★ Special occasion robot
| DDM350B/DCM360B Parameter |
||
| Compass heading | Heading accuracy | 0.8° |
| Resolution | 0.1° | |
| Pitch range | ±90° | |
| Roll range | ±180° | |
| Inclination accuracy | Static state 0.2° | |
| Dynamic 0.5° | ||
| Resolution | 0.1° | |
| Tilt compensation angle range | Roll ±180° | |
| Pitch ＜85° | ||
| Calibration | Hard iron calibration | yes |
| Soft iron calibration | yes | |
| Magnetic field interference calibration method | One rotation of the plane (two-dimensional calibration) | |
| Physical feature | Size | L55×W37×H24mm |
| RS232/RS485/TTL | 4 cores 1-meter direct lead cable | |
| Interface | Startup delay | <50ms |
| Output rate | 20Hz/s | |
| Baud rate | 2400 to 115200baud | |
| Output format | Binary high performance protocol | |
| Power | Supply voltage | (Default) DC +5V |
| (Customized) DC 9～36V | ||
| Current (MAX) | 45mA | |
| Ideal model | 35mA | |
| Sleep mode | TBD | |
| Environment | Operating range | -40℃～+85℃ |
| Storage temperature | -40℃～+100℃ | |
| Vibration resistance | 2500g | |
| EMC | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/time | |
| Insulation resistance | ≥100 megohm | |
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Weight | Single board: ≤25g ≤135g (including 1 meter cable) | |
