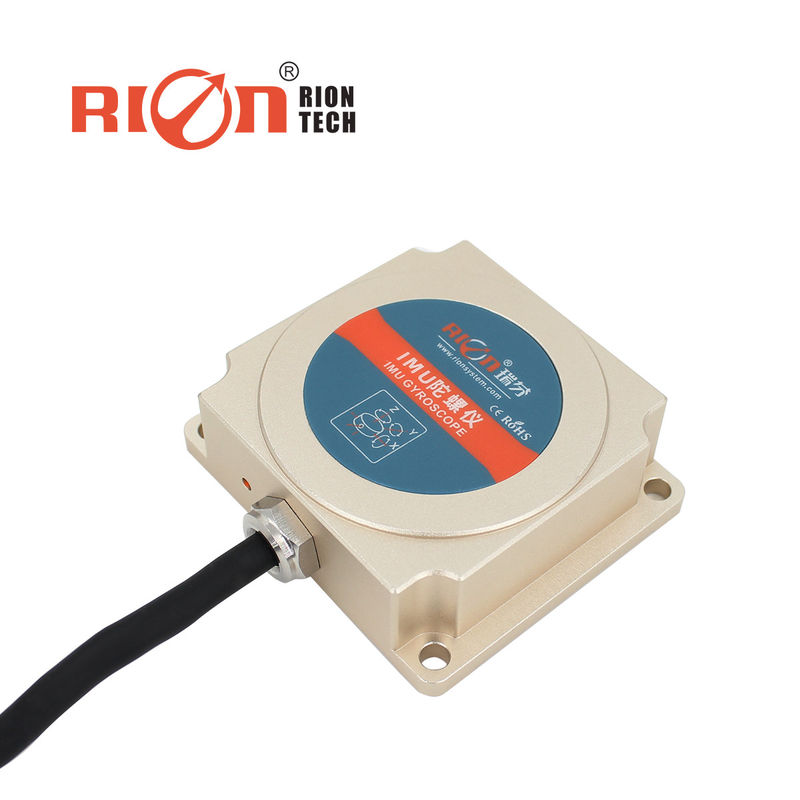

TL725D RS232 / RS485 ANGULAR RATE SENSOR FOR AUTOMATIC AGRICULTURAL MACHINERY

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: TL725-485

Document: TL725D GYRO - FARM MACHINER...ON.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $60.00/Pieces >=1 Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

36v Angular Rate Sensor

,

RS485 Angular Rate Sensor

,

Agricultural Machinery MEMS Gyroscope Sensor

Usage:
Agricultural Vehicle Auto Driving
Bandwidth:
>100Hz
Nonlinear:
0.1% Of FS
Startup Time:
500ms
Input Voltage:
+9~36V
Connector:
RS232 / RS485 / (Optional)
Usage:
Agricultural Vehicle Auto Driving
Bandwidth:
>100Hz
Nonlinear:
0.1% Of FS
Startup Time:
500ms
Input Voltage:
+9~36V
Connector:
RS232 / RS485 / (Optional)
Description
TL725D RS232 / RS485 ANGULAR RATE SENSOR FOR AUTOMATIC AGRICULTURAL MACHINERY

TL725D RS232 / RS485 ANGULAR RATE SENSOR FOR AUTOMATIC AGRICULTURAL MACHINERY




PRODUCT DESCRIPTION
TL725D is a gyroscope IMU designed for agricultural vehicle auto-driving. Equipped with industrial-grade 3-axis gyroscope and accelerometer, it delivers stable attitude data even under strong vibration. Based on a MEMS inertial platform with dynamic attitude algorithm, it outputs real-time inclination, azimuth, angular rate, acceleration, and forward-axis acceleration. With Z-axis integral counting output, it ensures accurate front-wheel steering. TL725D is a key component for next-generation precision farming machinery.



▶ FEATURE

★ Attitude angle & azimuth output  

★ Real-time angular rate
★ Forward-axis acceleration     

★ Long life & stability
★ Compact, lightweight, solid-state 

★ DC 9~36V supply



▶APPLICATION

★ Automated agricultural machinery 

★ Precision farming
★ Combine harvesters        

★ Farming vehicles

PRODUCT SPECIFICATIONS

TL725D RS232 / RS485 ANGULAR RATE SENSOR FOR AUTOMATIC AGRICULTURAL MACHINERY 0TL725D

PARAMETERS

Three-axis attitude

Azimuth ±180°, Roll angle±180°, Pitch angle±90

Bandwidth

>100Hz

Nonlinear

0.1% of FS

Three-axis gyroscope

Gyro Range

250°/s

Angle random walk coefficient (allan)

0.25°/sqrt(h)

Bias stability mg (10s smooth)

8.5°/h

Three-axis acceleration

Range

±4g

Resolution

0.001g

Accuracy

1mg

Bias instability°/h (allan)

0.05mg

Speed random walk coefficient (allan)

0.015m/s/sqrt(h)

Bias stability°/h(10s average)

0.15mg

Startup time

500ms

Input voltage

+9~36V

Current

35mA(12V)

Working temp.

-40 ~ +80℃

Storage temp.

-40 ~ +85℃

Vibration

5g~10g

Shock

200g pk, 2ms, ½sine

Working life

10 Year

Output frequency

1Hz~200Hz Settable

Output signal

RS232 / RS485 / (Optional)

MTBF

98000 Hours/times

Insulation resistance

≥100

Shockproof

100g@11ms/3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms/101000Hz

Protection grade

IP67

Cable

 Standard 1 m 4 pin shield wire

Weight

≤160g (including 1 meter cable)


 PRODUCTION INSTALLATION NOTES

1.The installation surface of the angle instrument should be kept parallel to the measured target surface and the influence of dynamic and acceleration on the angle instrument should be reduced. Incorrect installation can cause measurement error, Pay particular attention to 1 "face" and 2 "lines ":1)The mounting surface and the measured surface must be fixed tightly, flat and stable. If the mounting surface is uneven, it is easy to cause the angle error of the IMU gyro measurement.

2)The angle axis must be parallel to the measured axis, and the two axes can not produce an angle.

2.Do not shake the product violently during use, avoid violent vibration during use, and stay away from the source of vibration (if unavoidable, please install a shock absorber), so as not to affect the product measurement accuracy;

3.During use, try to avoid movements with angular velocity greater than 300°/s, such as rapid acceleration, sudden stop, and sharp turning, so as not to affect the product measurement accuracy.

TL725D RS232 / RS485 ANGULAR RATE SENSOR FOR AUTOMATIC AGRICULTURAL MACHINERY 2

TL725D RS232 / RS485 ANGULAR RATE SENSOR FOR AUTOMATIC AGRICULTURAL MACHINERY 3

TL725D RS232 / RS485 ANGULAR RATE SENSOR FOR AUTOMATIC AGRICULTURAL MACHINERY 4
