Product Details
Place of Origin: Guangdong, China
Brand Name: Rion
Certification: CE, ISO
Model Number: TL725-485
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $60.00/Pieces >=1 Pieces
Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 3000 Piece/Pieces per Month
Usage: |
Agricultural Vehicle Auto Driving |
Bandwidth: |
>100Hz |
Resolution: |
0.01° |
Gyro Range: |
250°/s |
Accelerometer Range: |
±4g |
Connector: |
RS232/RS485 |
Usage: |
Agricultural Vehicle Auto Driving |
Bandwidth: |
>100Hz |
Resolution: |
0.01° |
Gyro Range: |
250°/s |
Accelerometer Range: |
±4g |
Connector: |
RS232/RS485 |

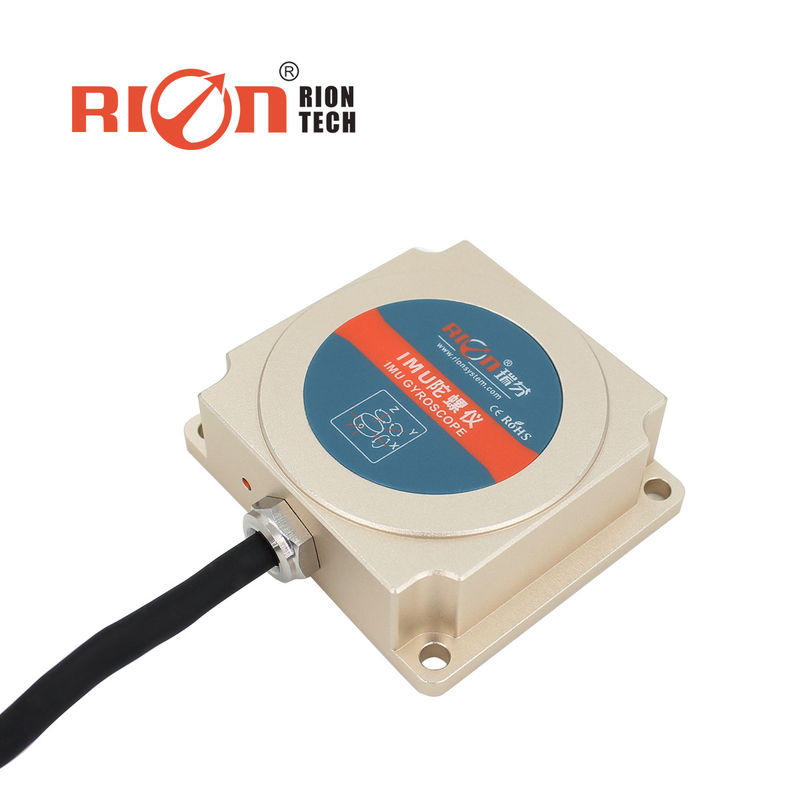

RS232 / RS485 Angular Rate Sensor For Automatic Agricultural Machinery
Download datasheet from below link :
TL725D IMU GYRO - FARM MACHINERY VERSION RELATIVE ...
PRODUCT DESCRIPTION
TL725D is a gyroscope IMU specialized in navigation for agricultural vehicle automatic driving.
The TL725D is specially applied for automatic agricultural machinery aiming to precise and efficient operation. It is an indispensable component of a new generation agricultural machinery.
★ Horizontal azimuth and attitude angle output
★ Real-time angular rate output
★ Long life and strong stability
★ Forward axis acceleration
★ Compact and lightweight design
★ All solid state
▶APPLICATION
★ Automated agricultural machinery
★ Precision agriculture
★ Combination Harvesters
★ Farming machine
|
No
|
Item
|
Data
|
|
1
|
Three-axis attitude
|
Azimuth ±180°,Roll angle±180°,Pitch angle±90
|
|
2
|
Bandwidth
|
>100Hz
|
|
3
|
Resolution
|
300°/s
|
|
4
|
Nonlinear
|
300°/s
|
|
5
|
Gyro Range
|
300°/s
|
|
6
|
Zero bias instability of gyro (allan)
|
4.0°/h
|
|
7
|
Angle random walk coefficient (allan)
|
0.25 °/sqrt(h)
|
|
8
|
Accelerometer range
|
±4g
|
|
9
|
Acceleration resolution
|
0.001g
|
|
10
|
Acceleration accuracy
|
1mg
|
|
11
|
Startup time
|
250ms
|
|
12
|
Input voltage
|
+9~36V
|
|
13
|
Current
|
35mA(12V)
|
|
14
|
Working temp
|
-40 ~ +80℃
|
|
15
|
Vibration
|
5g~10g
|
|
16
|
Shock
|
200g pk,2ms,½sine
|
|
17
|
Weight
|
140g(without cable)
|
