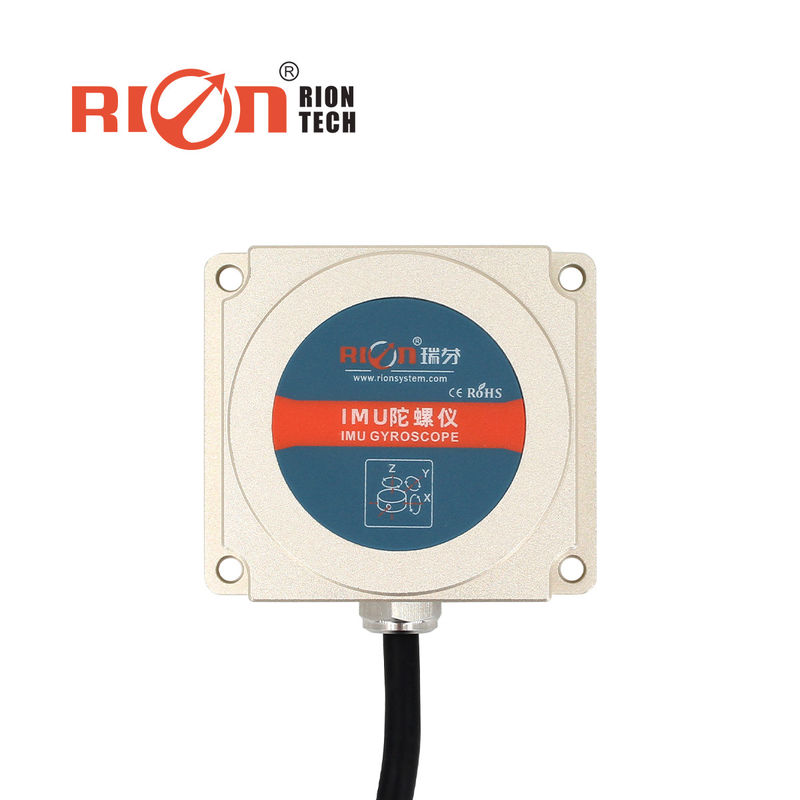

TL725D Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving

Name: TL725D Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: TL725D-485
Price: 30.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: TL725D-485

Document: TL725D GYRO - FARM MACHINER...ON.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $60.00/Pieces >=1 Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          36v 3 Axis Accelerometer, Gyro IMU 3 Axis Accelerometer, 100Hz MEMS Gyroscope Sensor


Usage:	Agricultural Vehicle Auto Driving	Vibration:	5g~10g
Nonlinear:	0.1% Of FS	Gyro Range:	250°/s
Accelerometer Range:	±4g	Connector:	RS232/RS485
Power Supply:	9~36v

Usage:	Agricultural Vehicle Auto Driving
Vibration:	5g~10g
Nonlinear:	0.1% Of FS
Gyro Range:	250°/s
Accelerometer Range:	±4g
Connector:	RS232/RS485
Power Supply:	9~36v

Description

TL725D Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving

TL725D Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving

PRODUCT DESCRIPTION

TL725D is a gyroscope IMU specialized in navigation for agricultural vehicle automatic driving. With built-in industrial-grade three-axis gyroscope and three-axis accelerometer, TL725D can still output smooth attitude data under the high vibration working condition. Developed based on the MEMS inertial measurement platform and dynamic attitude algorithm of the angular rate of the gyroscope, it outputs dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis acceleration and forward axial body acceleration data in real time. it also can feedback counting output in real time by the Z-axis single-axis integral output, allowing the vehicle's front wheels turned accurately. The TL725D is specially applied for automatic agricultural machinery aiming to precise and efficient operation. It is an indispensable component of a new generation agricultural machinery.

PRODUCT SPECIFICATIONS

TL725D		PARAMETERS
Three-axis attitude		Azimuth ±180°, Roll angle±180°, Pitch angle±90
Bandwidth		>100Hz
Nonlinear		0.1% of FS
Three-axis gyroscope	Gyro Range	250°/s
	Angle random walk coefficient (allan)	0.25°/sqrt(h)
	Bias stability mg (10s smooth)	8.5°/h
Three-axis acceleration	Range	±4g
	Resolution	0.001g
	Accuracy	1mg
	Bias instability°/h (allan)	0.05mg
	Speed random walk coefficient (allan)	0.015m/s/sqrt(h)
	Bias stability°/h(10s average)	0.15mg
Startup time		500ms
Input voltage		+9~36V
Current		35mA(12V)
Working temp.		-40 ~ +80℃
Storage temp.		-40 ~ +85℃
Vibration		5g~10g
Shock		200g pk, 2ms, ½sine
Working life		10 Year
Output frequency		1Hz~200Hz Settable
Output signal		RS232 / RS485 / (Optional)
MTBF		≥98000 Hours/times
Insulation resistance		≥100MΩ
Shockproof		100g@11ms/3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms/10～1000Hz
Protection grade		IP67
Cable		Standard 1 m 4 pin shield wire
Weight		≤160g (including 1 meter cable)

Dimension

TL725D Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving 2

Application

★ Automated agricultural machinery

★ Precision agriculture
★ Combination Harvesters

★ Farming machin
