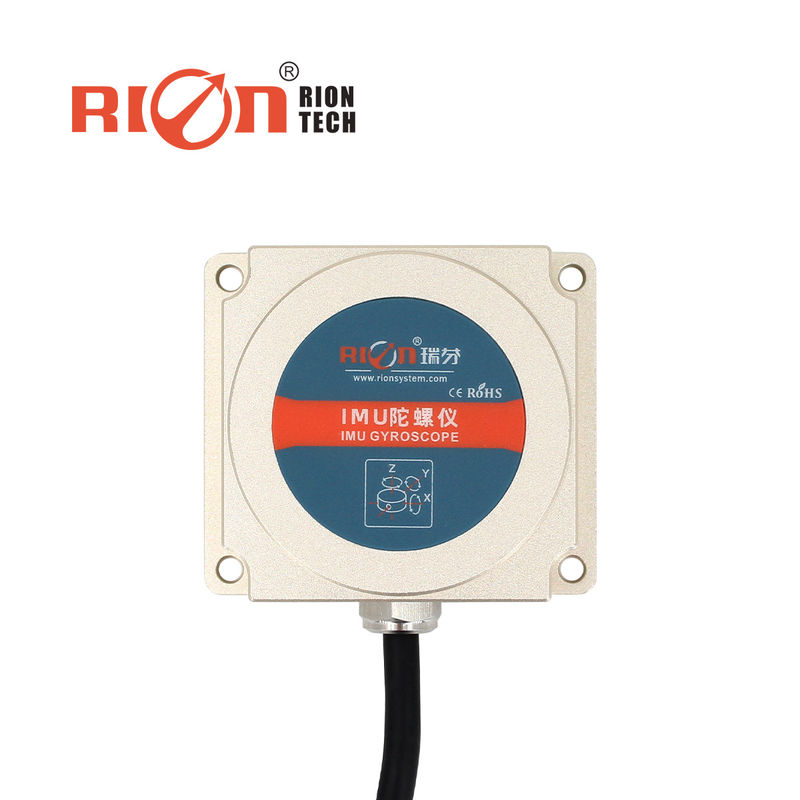

Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving

1
MOQ
$60.00/Pieces >=1 Pieces
Price
Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Agricultural Vehicle Auto Driving
Bandwidth: >100Hz
Resolution: 0.01°
Nonlinear: 0.1% Of FS
Gyro Range: 250°/s
Accelerometer Range: ±4g
Connector: RS232/RS485
Power Supply: 9~36v
High Light:

36v 3 Axis Accelerometer

,

Gyro IMU 3 Axis Accelerometer

,

100Hz MEMS Gyroscope Sensor

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Rion
Certification: CE, ISO
Model Number: TL725-485
Payment & Shipping Terms
Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 3000 Piece/Pieces per Month
Product Description

Gyro IMU For Agricultural Vehicle Automatic Driving With 3 Axis Accelerometer 3 Axis Gyro



PRODUCT DESCRIPTION
TL725D is a gyroscope IMU specialized in navigation for agricultural vehicle automatic driving. With built-in industrial-grade three-axis gyroscope and three-axis accelerometer, TL725D can still output smooth attitude data under the high vibration working condition. Developed based on the MEMS inertial measurement platform and dynamic attitude algorithm of the angular rate of the gyroscope, it outputs dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis acceleration and forward axial body acceleration data in real time. it also can feedback counting output in real time by the Z-axis single-axis integral output, allowing the vehicle's front wheels turned accurately. The TL725D is specially applied for automatic agricultural machinery aiming to precise and efficient operation. It is an indispensable component of a new generation agricultural machinery.



PRODUCT SPECIFICATIONS
No
Item
Data
1
Three-axis attitude
Azimuth ±180°,Roll angle±180°,Pitch angle±90
2
Bandwidth
>100Hz
3
Resolution
300°/s
4
Nonlinear
300°/s
5
Gyro Range
300°/s
6
Zero bias instability of gyro (allan)
4.0°/h
7
Angle random walk coefficient (allan)
0.25 °/sqrt(h)
8
Accelerometer range
±4g
9
Acceleration resolution
0.001g
10
Acceleration accuracy
1mg
11
Startup time
250ms
12
Input voltage
+9~36V
13
Current
35mA(12V)
14
Working temp
-40 ~ +80℃
15
Vibration
5g~10g
16
Shock
200g pk,2ms,½sine
17
Weight
140g(without cable)

Gyro IMU 3 Axis Accelerometer For Agricultural Vehicle Automatic Driving 1
Dimension
size: 62*54*20mm

Application
★ Automated agricultural machinery
★ Precision agriculture
★ Combination Harvesters
★ Farming machine
