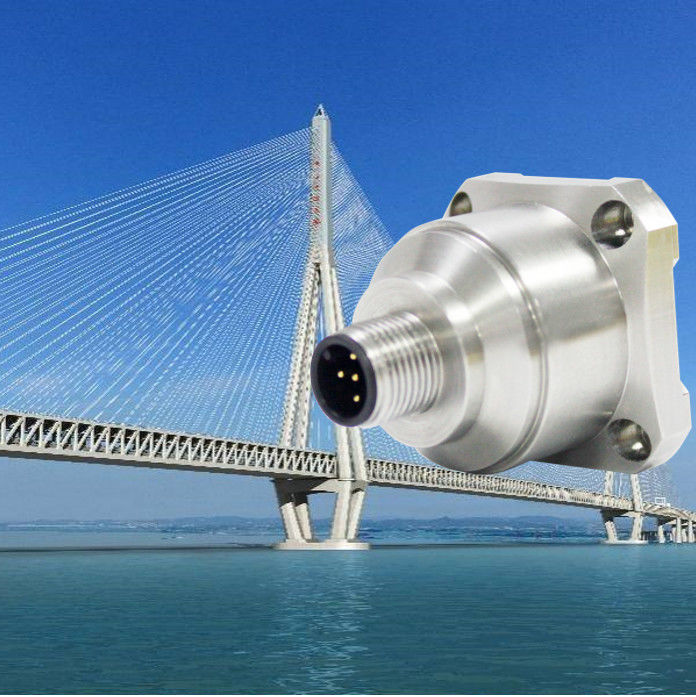

Bridge 3 Axis Vibratory Acceleration Sensor RS232 RS485 Current Voltage
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Vibratory Sensor
Output: RS485
Power On/off Repeatability: <2mg
Non-linearity: <0.5% FS(max)
Bandwidth (3DB): 500Hz
Resonance Frequency: 5.5kHz
High Light:

500Hz Acceleration Sensor

,

Bridge 3 Axis Acceleration Sensor

,

5.5kHz MEMS Based Accelerometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: AKG392-485
Payment & Shipping Terms
Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, PAYPAL
Supply Ability: 3000 PCS/MONTH
Product Description

vibration detection for bridge 3 axis vibratory sensor RS232 RS485 current voltage accleration sensor



MAIN FEATURE

★ Three axes (X, Y, Z)

★ Output signal: RS232; RS485; TTL

★ Power supply voltage: 9~36V

★ Impact resistance: 2000G

★ Working temperature: -40°C ~ +85°C

★ Storage temperature: -40°C ~ +85°C

★ Size: L34.3×W34.3×H38.5mm

★ Excellent deviation stability, good environmental performance (shock, vibration and temperature)



APPLICATION

★ Medical equipment

★ Bridge

★ Automobile

★ Road roller

★ Crash records, fatigue monitoring and prediction

★ Wind power generation

★ Large machinery, engines

★ Low-frequency vibration and automatic monitoring

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection



The AKG392 triaxial accelerometer is a new accelerometer independently developed and produced by Rion Technology applied in wide range of applications, which covers many fields such as vibration testing and impact testing. The product adopts digital interface output with options as RS232/485/TTL. Different address codes can be set, multiple accelerometers can be installed in series for long distance, which is convenient for multi-point measurement and data analysis. Internal FFT processing can directly output the object vibration frequency and speed and displacement, convenient for users to analyze data.

The users can change the sampling frequency according to the actual frequency of the object to improve the frequency measurement accuracy. AKG392 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibration, sturdy structure, and stable output. The new electronic configuration provides solid-state power for reset and protection from over-voltage. The long-term stability and deviation of the scale factor in the full-scale range are typically less than 0.1%. This series of products have the characteristics of sturdy structure, low power consumption, and excellent deviation stability, ensuring stable output reliability.



Specifications



AKG392 PARAMETERS UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Bias calibration <1 <1 <1 <1 <1 <1 mg
Measure axis X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Power on/off repeatability <2 <2 <2 <2 <2 <2 mg(max)
Bias temperature coefficient 0.15 0.15 0.15 0.75 0.75 0.75 %/℃(typical)
Resolution/threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Non-linearity <0.5 <0.8 <1 <1 <1 <1 % FS(max)
Bandwidth (3DB) 500 500 500 500 500 500 Hz
Cross axis sensitivity 1 1 1 2 2 2 %
Transverse vibration sensitivity ratio 1 1 2 5 5 5 %
Resonance frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
Output rate 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface RS232/RS485/TTL
Protocol RION 68 protocol and MODBUS RTU protocol
Reliability MIL-HDBK-217,Grade 2
Impact resistance 100g@11ms, 3 Axial Direction (Half Sinusoid)
Recovery Time <1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration 20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)
Input(VDD_VSS) 9~36 VDC
Operating current consumption <60mA @ 12 VDC
Connector Industry standard M12 connector
Weight Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm









CONNECTION





THREAD COLOR FUNCTION COLOR

FUNCTION

BLACK WHITE BLUE BROWN
GND

RS232(RXD)/

RS485(D+)

RS232(TXD)/

RS485(D-)

Vcc 9~36V





▶ COMMUNICATION PROTOCOL

The product includes 68 protocol and MODBUS RTU two protocols. The default configuration parameters of the protocol are as follows:

PROTOCOL RION 68 PROTOCOL MODBUS-RTU
Address code 0 1
Broadcast address 255 0
Serial port baud rate 9600 9600
Parity bit No parity Even parity
Serial port start bit 1 bit 1 bit
Serial port data length 8 bits 8 bits
Serial port stop bit 1 bit 1 bit
Output mode Question and answer Question and answer
Data Format Data format Data format
Data check method Checksum CRC16



Size



Bridge 3 Axis Vibratory Acceleration Sensor RS232 RS485 Current Voltage 0
