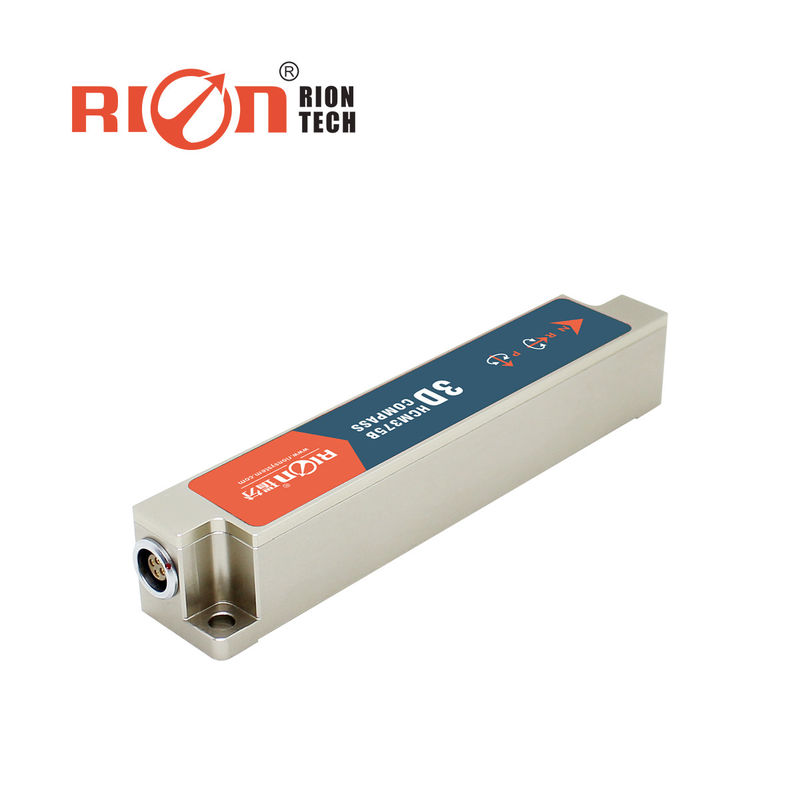

3d Digital Compass Orientation Sensor Surveying And Mapping Antenna North Search
▶ MAIN FEATURE
★ Heading Accuracy: 0.5° ★ Roll Measure Range:±180°
★ Tilt Resolution: 0.1° ★ Tilt Accuracy: <0.2°(Full Range)
★ Working Temp.: -40℃~+85℃ ★ Dimension: L111.5×W19.5×H19.5mm
★ With Hard And Soft Magnetic Calibration ★ Rs232/Rs485/Ttl Output
HCM370B-HCM375B integrated patented three -axis flux-gate technology. It calculates heading value in real-time by CUP, and perform heading value compensation in wide tilt range by using three axis accelerometer. It is high performance and excellent stability militarily level compass sensor. Its volume is small, power consumption is low. It could widely used in many application such as antenna installation, vehicle and integrated system, and so on.
Specifications
| HCM370B / HCM375B Index | ||
| Heading | Heading Accuracy | 0.5° |
| Resolution | 0.1° | |
| Tilt | Pitch Accuracy | 0.1°<15°(Measure Range) |
| 0.1°<30°(Measure Range) | ||
| 0.1°<60°(Measure Range) | ||
| 0.2°<85°(Measure Range) | ||
| Pitch Range | ±85° | |
| Roll Accuracy | 0.1°<15°(Measure Range) | |
| 0.1°<30°(Measure Range) | ||
| 0.1°<60°(Measure Range) | ||
| 0.2°<180°(Measure Range) | ||
| Roll Range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard Magnetic Calibration | Available |
| Soft Magnetic Calibration | Available | |
| Magnetic Filed Interference Calibration Method |
Rotate 360° Horizontally; Vertical Rotation(Optional) |
|
| RS-232/RS485/TTL | 5Pin Quick Plug Connector | |
| Interface | Start Delay | <50ms |
| Max Output Rate | 20Hz/s | |
| Communication Rate | 2400 to 115200baud (default 9600) | |
| Output Format | Binary High Performance Protocol | |
| Power Supply | Power Voltage | (Default)DC+5V |
| Current(Max) | 30ma | |
| Ideal Current | 26ma | |
| Sleep Mode | TBD | |
| Environment | Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+85℃ | |
| Anti-Shock Performance | 100g | |
| Protection Level | IP67 | |
| Electromagnetic Compatibility | According TO EN61000 and BT17626 | |
| Mtbf | ≥40000 Hour/Time | |
| Insulation Resistance | ≥100M.O. | |
| Anit-Impact | 100g@11ms,3Times/Axis(Half Sinusoid) | |
| Anti--Shock | 10grms,10～1000Hz | |
| Dimension | L110×W19.5×H19.5mm | |
| Weight | 70g(Not Include Cable) | |
