ACA826T High-Precision CAN Inclinometer with Full Temp Compensation for Leveling

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: ACA826T-C2

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $680.00/Pieces >=1 Pieces

Packaging Details: Carton

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

36VDC Agricultural Machinery Angular Sensor

,

9V Agricultural Vehicle Angle Sensor

,

Agricultural MEMS Gyroscope Sensor

Measure Range:
±3/10/15/30°
Measure Axis:
X/XY
Resolution:
0.0005°
Measure Accuracy:
0.002/0.03/0.05/0.01°
Response Time:
20Hz
Weight:
152g
Working Temp.(℃):
-40~+85℃
Input Voltage:
9~36VDC
Measure Range:
±3/10/15/30°
Measure Axis:
X/XY
Resolution:
0.0005°
Measure Accuracy:
0.002/0.03/0.05/0.01°
Response Time:
20Hz
Weight:
152g
Working Temp.(℃):
-40~+85℃
Input Voltage:
9~36VDC
Description

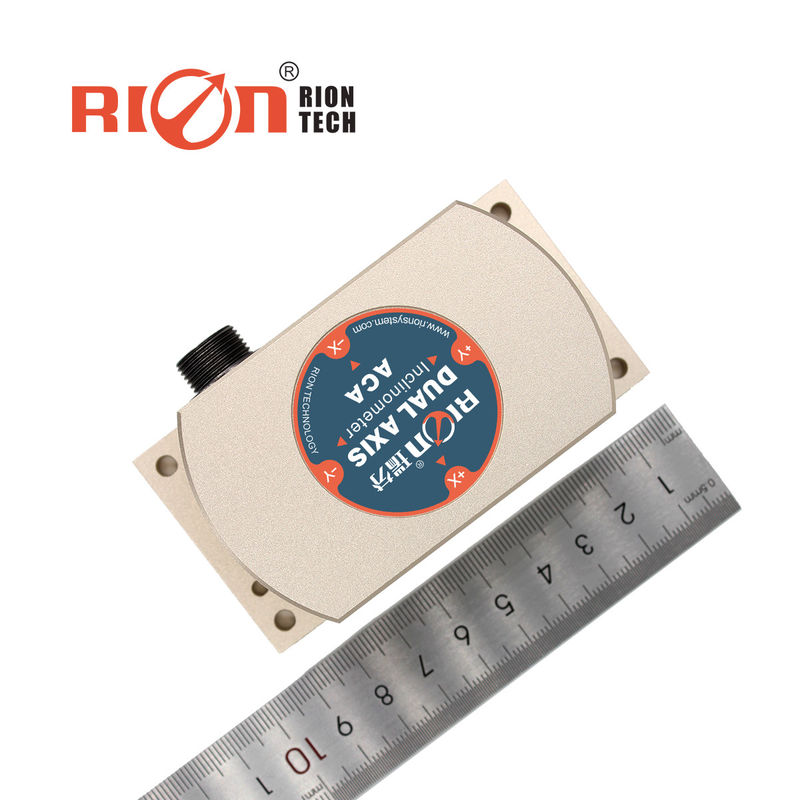

ACA826T High-Precision CAN Inclinometer with Full Temp Compensation for Leveling

ACA826T High-Precision CAN Inclinometer with Full Temp Compensation for Leveling

The ACA816T/ACA826T is a high-precision single/dual-axis inclinometer developed by RION Technology, featuring CAN 2.0A/B output and full temperature compensation. Designed specifically for high-accuracy leveling applications, it offers an exceptional resolution of 0.0005°, making it a reliable digital alternative to traditional spirit levels.

The sensor supports digital signal transmission and can work seamlessly with PC software for simultaneous angle measurement and data recording. Its non-contact installation design ensures high compatibility—simply mount the sensor onto the target surface using screws, and it will automatically calculate the inclination.

With robust resistance to electromagnetic interference, as well as shock and vibration, the ACA816T/ACA826T delivers stable performance in harsh environments and offers a distinct competitive edge in the high-precision sensor market.



▶ SPECIFICATIONS

ACA826T High-Precision CAN Inclinometer with Full Temp Compensation for Leveling 0ACA816T/826T-C2

Condition

Parameter

Unit

Measure range



±3

±10

±15

±30

°

Measure axis



X/XY

X/XY

X/XY

X/XY



Resolution



0.0005

0.0005

0.0005

0.0005

°

Measure accuracy

@25℃

0.002

0.003

0.005

0.01

°(RMS)

Long term stability



0.01

0.01

0.02

0.02

°

Zero temp. coefficient

-40~85℃

±0.0002

±0.0002

±0.0002

±0.0002

°/℃

Sensitivity temp. coefficient

-40~85℃

≤50

≤50

≤50

≤50

ppm/℃

Power on time



0.5

0.5

0.5

0.5

S

Response time



20

20

20

20

Hz

Output rate

20Hz, can set

Output signal

CAN 2.0A/CAN2.0B (optional)

EMC

According to EN61000 and GBT17626

MTBF

98000 hours/times

Insulation Resistance

≥100MΩ

Shockproof

100g@11ms / 3 axis direction (half sinusoid)

Anti-vibration

10grms / 10~1000Hz

Protection grade

IP67

Cables

With 2 meter, wear-resistant, wide temperature, shielded cable 5P*5.7mm aviation connector

Weight

235g( exclude cable)




▶ ELECTRICAL PARAMETERS

ACA826T High-Precision CAN Inclinometer with Full Temp Compensation for Leveling 1PARAMETERS

CONDITIONS

MIN

STANDARD

MAX

UNIT

Power supply

Standard

9

12

24

36

V

customized



Other voltage



V

Working current

12V



40



mA

24V



22



mA

Working temperature



-40



+85

Store temperature



-40



+85
