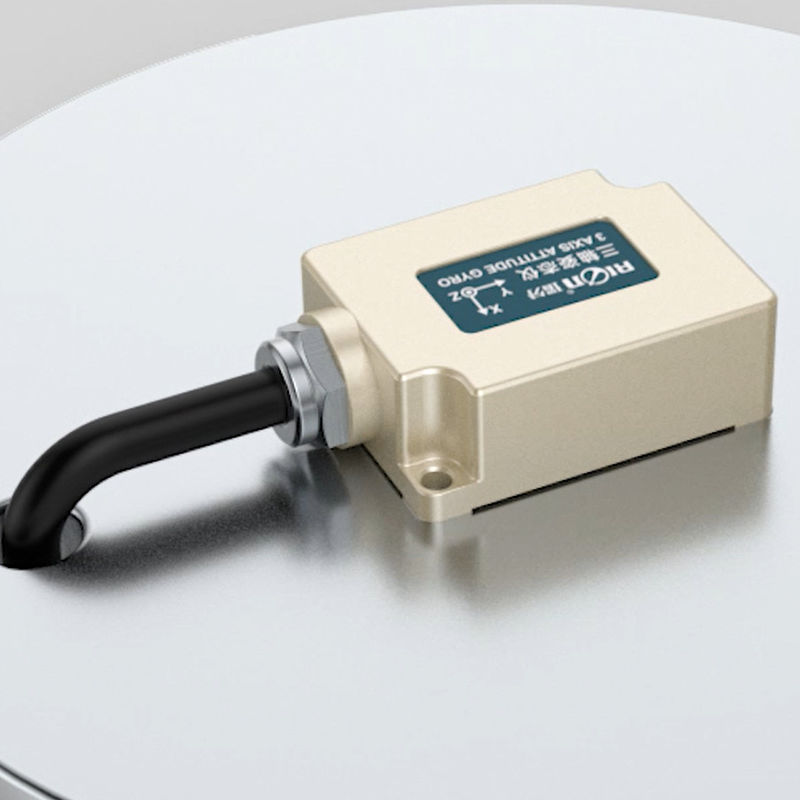

5G Antenna Yaw Angle Sensor RS485 / RS232 / TTL Angular Rate Transducer

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: TL735G

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 60

Packaging Details: carton box with sponge

Delivery Time: 5 days for samples

Payment Terms: L/C, T/T

Supply Ability: 5000/month

Get Best Price
Contact Now
Specifications
Highlight:

5G Antenna Yaw Angle Sensor

,

Gyro Yaw Angle Sensor

,

TTL MEMS Gyroscope Sensor

Azimuth Measurement Axi:
Z-axis Azimuth Angle ±1
Product Name:
Gyro For 5G Antenna
Acquisition Bandwidth:
>100Hz
Azimuth Resolution:
0.01deg
Azimuth Accuracy:
<0.5°
Acceleration Range:
±2g
Azimuth Measurement Axi:
Z-axis Azimuth Angle ±1
Product Name:
Gyro For 5G Antenna
Acquisition Bandwidth:
>100Hz
Azimuth Resolution:
0.01deg
Azimuth Accuracy:
<0.5°
Acceleration Range:
±2g
Description
5G Antenna Yaw Angle Sensor RS485 / RS232 / TTL Angular Rate Transducer

yaw angle sensor for antenna 5g, long working life gyro meter, RS485/RS232/TTL  angular rate transducer



APPLICATION

★ 5G antenna monitoring

★ Outdoor billboard

★ 3D virtual reality

★ Stable platform

★ Car security system

★ Vehicle-mounted satellite antenna equipment

★ Industrial control

★ Robot





TL735G Parameters
Azimuth measurement axis Z-axis azimuth angle ±180°
Acquisition bandwidth >100Hz
Azimuth resolution 0.01°
Azimuth accuracy <0.5°
Non-linear 0.1% of FS
Pitch accuracy 0.1° RMS
Roll accuracy Dynamic 0.5°, static 0.1° RMS
Tilt resolution 0.01°
Tilt range Roll ± 180º, pitch ± 90º
Gyro angular rate ±125 °/s (other angular rates can be customized)
Acceleration range ±2g
Acceleration resolution 0.1°
Acceleration accuracy 0.5mg
Default data output type Euler angle

Default azimuth measurement range

(Data output type is Euler angle)

±180°
Start Time 5s (stationary) vibration <10mg
Input voltage 9~36V, default +24VDC, 12mA
Current 40mA
Operating temperature -40℃ ~ +85℃
Storage temperature -40 ℃~ +125℃
Vibration 5g~10g
Impact 200g pk,2ms,½sine
life span 10 years
Start Time 5-6 seconds, stand still (acceleration <0.01g)
Maximum sampling rate 100 times/sec
Serial communication rate Default 9600 baud rate
Output signal RS485
MTBF ≥50000 hours/time
Insulation resistance ≥100 megohm
Impact resistance 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Waterproof level IP67
Cable Standard 1-meter cable
Weight 35g (not including cable)





▶ Installation

5G Antenna Yaw Angle Sensor RS485 / RS232 / TTL Angular Rate Transducer 0

5G Antenna Yaw Angle Sensor RS485 / RS232 / TTL Angular Rate Transducer 1



▶ PRODUCT ELECTRICAL CONNECTION



Color Function BLACK WHITE GREEN RED Shielded wire
GND RS485(D+) RS485(D-)

Vcc 9~36V

Positive pole

Grounding(PE)
