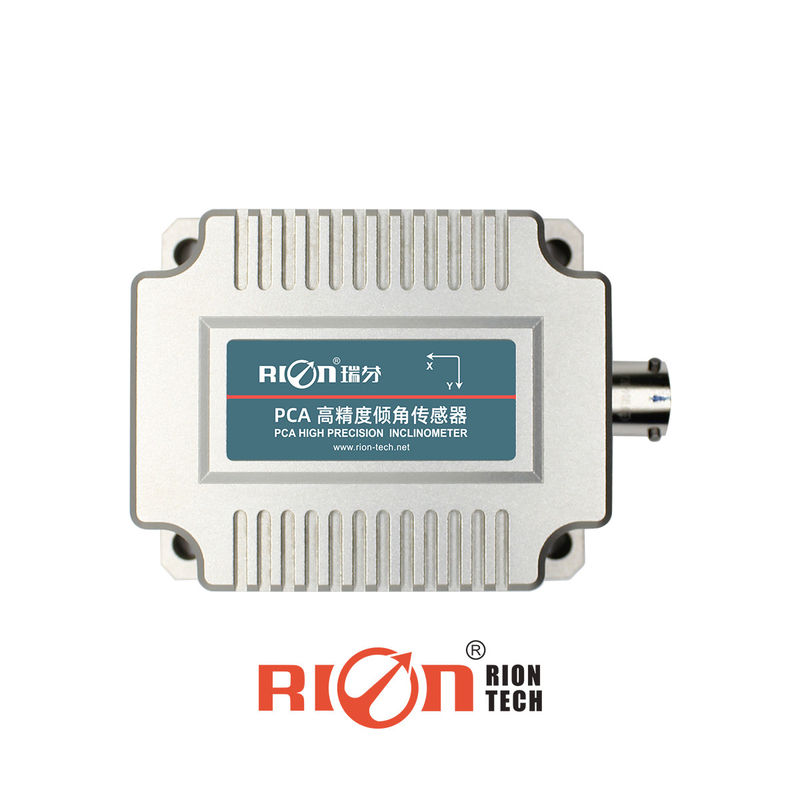

PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: PCA826H

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 618

Packaging Details: carton box with sponge

Delivery Time: 5 days for samples

Payment Terms: T/T,paypal

Supply Ability: 5000/month

Get Best Price
Contact Now
Specifications
Highlight:

Low Bias Three Axis Gyro Sensor

,

5G Antenna Three Axis Gyro Sensor

,

100Hz MEMS Gyroscope Sensor

Measure Range:
±10°
Measure Axis:
XYaxis
Resolution:
0.0005°
Measure Accuracy:
0.001°
Zero Temp Coefficient:
0.0003°/℃
Output Signal:
RS485/RS232/RS422 Optional
Measure Range:
±10°
Measure Axis:
XYaxis
Resolution:
0.0005°
Measure Accuracy:
0.001°
Zero Temp Coefficient:
0.0003°/℃
Output Signal:
RS485/RS232/RS422 Optional
Description
PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS

PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS


APPLICATION

 Wind power monitoring

 Bridge and Dam monitoring

 Ancient building monitoring

 High-speed rail track monitoring

 Ground satellite communication vehicles

 Railway gauge ruler and gauge leveling

 Satellite communication vehicle

 Geological equipment tilt monitoring

 Engineering vehicle leveling


▶ MAIN FEATURE

 Biaxial tilt angle measurement

 Range ±10°

 Horizontal/vertical optional

 DC 936V wide voltage input

 Resolution 0.0005°

 IP67 protection grade

 Size: L82×W70×H42mm

 Output mode TTL

 Wide temperature operation -40+85℃


▶ SPECIFICATIONS

PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS 0PCA826H

Condition

Parameters

Unit

Measure range

-

±10

°

Measure axis

-

XY

axis

Resolution

-

0.0005

°

Measure accuracy

Room temp.

0.001

°

Zero temp coefficient

-4085℃

0.0003

°/℃

Sensitivity temp. coefficient

-4085℃

≤50

ppm/℃

Power on time



<0.5

S

Response frequency



20

Hz

Output rate

5Hz / 10Hz / 25Hz / 35Hz / 50Hz / 100Hz  Can be set

Ouput signal

RS485/RS232/RS422 Optional

EMC

According to EN61000 and GBT17626

MTBF

98000 hour/time

Insulation Resistance

≥100 MΩ

Shockproof

100g@11ms / 3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms / 101000Hz

Protection grade

IP67

Cables

Standard 1 meter long wear-resistant, wide temperature, shielded cable, aviation connector, weight ≤150g

Weight

≤400g (Excluding cable)

KEY WORDS

Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value.

Measure accuracy: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).

Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.

Sensitivity Temperature Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.


ELECTRONIC PARAMETERS

PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS 1Parameters

Condition

Min

Standard

Max

Unit

Power supply

Standard

9

12

24

36

V

customized



Other voltage



V

Working current

12V



16



mA

24V



11



mA

Working temperature



-40



+85

Store temperature



-40



+85


▶ VIBRATION PARAMETER INDEX

The vibration frequency, speed, and displacement of this product are derived from data analysis. The frequency is the main frequency of the current object vibration frequency, the speed is the maximum speed, and the displacement is the maximum amplitude of the object vibration. Because of the vibration is irregular, the data is for reference only.

INDEX

VALUE

UNIT

Acceleration range

2

g

Acceleration accuracy

1

mg

Frequency range

0~20

Hz

Frequency resolution

0.125

Hz

Measurement error(±10%)

0~8

Hz


PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS 2

PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS 3

PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS 4
